Donaldson Torit MBT Modular Baghouse 460 ft² Dust Collector
Donaldson Torit MBT Modular Baghouse 460 ft² Dust Collector
SKU:MOD-321cd1
Reliable & efficient Donaldson Torit MBT Modular Baghouse Dust Collector with Dura-Life™ filters for superior filtration performance.
Regular price
$15,799.00
Regular price
Sale price
$15,799.00
Unit price
per
Initiate Order
Donaldson Torit MBT Modular Baghouse 460 ft² Dust Collector
$15,799.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit MBT Modular Baghouse 460 ft² Dust Collector
$15,799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® MBT Modular Baghouse Dust Collector sets the standard for reliability and efficiency in continuous-duty, pulse-jet operation. Featuring the innovative Dura-Life™ bag filters, this dust collector ensures longer bag life, reduced emissions, and exceptional performance. With a spacious bag cloth area of 460 ft² and 36 high-quality bags, it delivers superior filtration efficiency with minimal maintenance. Additionally, the integration of Ultra-Web® Spunbond Pleated Bags enhances dust capture and extends filter life, providing a cost-effective and environmentally friendly solution. Ideal for heavy-duty industrial applications, the MBT Modular Baghouse guarantees optimal airflow, easy maintenance, and operational efficiency.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

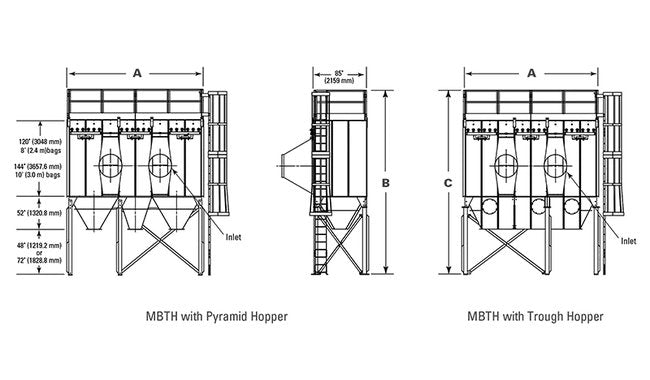

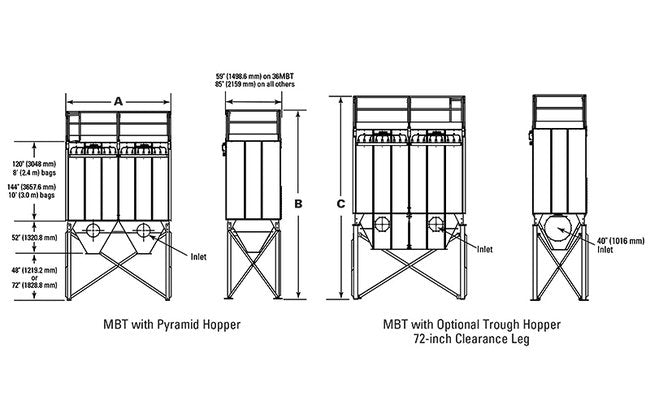

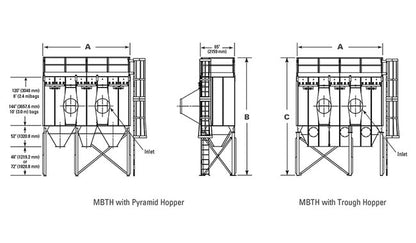

Dimensions Dimension A Mbtmbw
57.5 in | 1460.5 mm
Dimensions Dimension B Mbt 48 In
245.7 in | 6240.8 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
460 ft² | 42.7 m²
Specifications Number Of Bags
36
Specifications Number Of Valves
6
Specifications Plated Bag Media Area 20 Inch In Uw
425 ft² | 39.5 m²
Specifications Plated Bag Media Area 40 Inch In Uw
850 ft² | 78.9 m²
Specifications Plated Bag Media Area 60 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 80 Inch In Uw
1703 ft² | 158.2 m²
Specifications Shipping Weight
3400 lb | 1542.2 kg
Specifications Warranty
10 years
