The Donaldson® Torit® MBT Modular Baghouse Dust Collector is a powerhouse of efficiency, offering continuous-duty pulse-jet operation supported by Dura-Life™ bag filters for extended bag life and reduced emissions. With a bag cloth area of 866 ft², this unit provides reliable air filtration, easy maintenance, and advanced features like Ultra-Web® Spunbond Pleated Bags for enhanced dust capture. Designed for optimal airflow and durability, it includes features such as high body inlet models, tool-free filter installation, and integral fan options. Ideal for institutions seeking top-tier performance and compliance with stringent industry standards.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

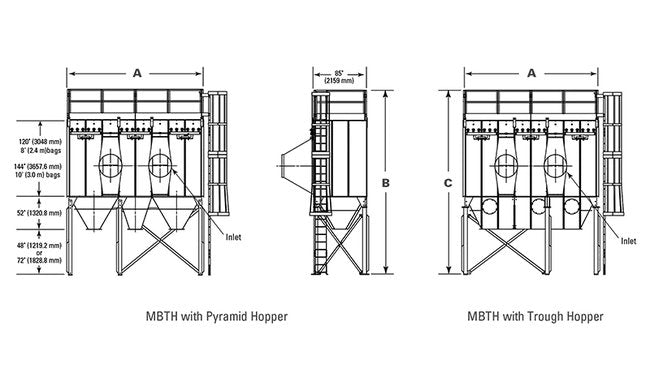

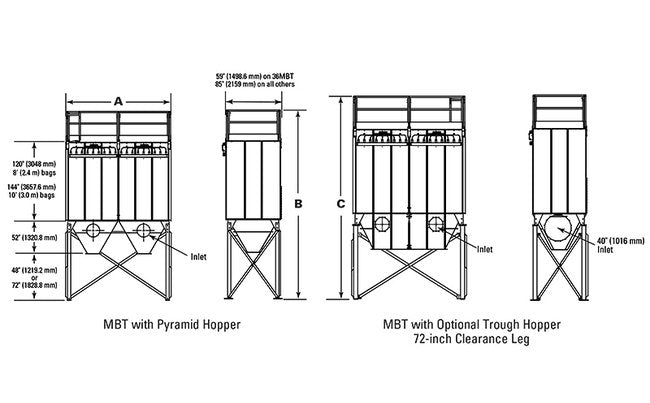

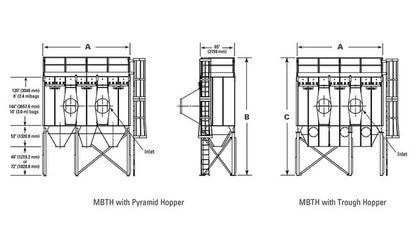

Dimensions Dimension A Mbtmbw
57.5 in | 1460.5 mm
Dimensions Dimension B Mbt 48 In
292.2 in | 7421.9 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
866 ft² | 80.5 m²
Specifications Number Of Bags
54
Specifications Number Of Valves
6
Specifications Plated Bag Media Area 20 Inch In Uw
637 ft² | 59.2 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 60 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 80 Inch In Uw
2554 ft² | 237.3 m²
Specifications Shipping Weight
5300 lb | 2404.0 kg
Specifications Warranty
10 years
