The Donaldson® Torit® MBW Modular Baghouse Dust Collector is a high-performance solution for reliable and efficient dust filtration. With 1039 ft² of durable Dura-Life™ bag filters, this collector ensures longer bag life, reduced emissions, and continuous-duty pulse-jet operation. Its advanced design features, such as Ultra-Web® SB Pleated Bag Option and computer-designed inlets, optimize airflow and maintenance efficiency. Ideal for institutional and government environments requiring top-notch air quality standards.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

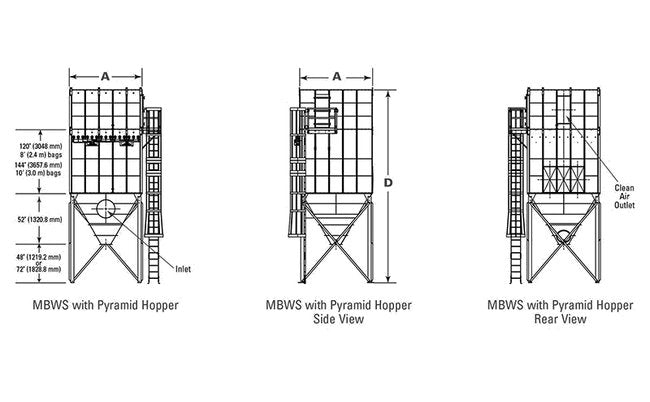

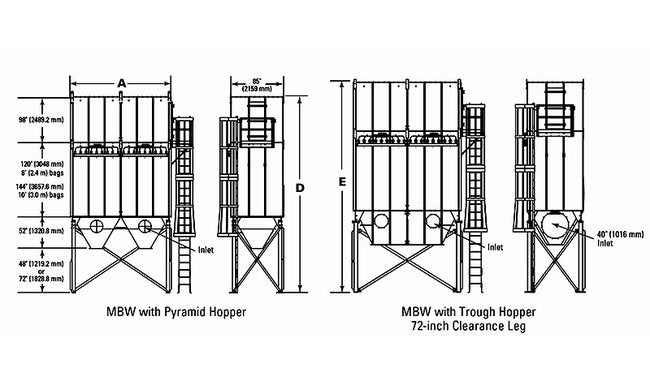

Dimensions Dimension A Mbtmbw
111.0 in | 2819.4 mm
Dimensions Dimension B Mbt 48 In
290.8 in | 7386.3 mm
Dimensions Dimension B Mbt 72 In
314.8 in | 7995.9 mm
Dimensions Dimension D Mbt 48 In
316.7 in | 8044.2 mm
Dimensions Dimension D Mbt 72 In
340.7 in | 8653.8 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Note
Two pyramid hoppers. Single outlet hopper also available.
Specifications Bag Cloth Area
1039 ft² | 96.5 m²
Specifications Number Of Bags
81
Specifications Number Of Valves
9
Specifications Plated Bag Media Area 20 Inch In Uw
956 ft² | 88.8 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 60 Inch In Uw
2867 ft² | 266.4 m²
Specifications Plated Bag Media Area 80 Inch In Uw
3831 ft² | 355.9 m²
Specifications Shipping Weight
8145 lb | 3694.5 kg
Specifications Warranty
10 years
