Donaldson Torit Model Cabinet 90 Dust Collectors
Donaldson Torit Model Cabinet 90 Dust Collectors
SKU:MOD-20c7b1
Efficient Donaldson Torit dust collectors with high collection efficiency and customizable features for industrial applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Donaldson Torit Model Cabinet 90 Dust Collectors
$2,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Model Cabinet 90 Dust Collectors
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

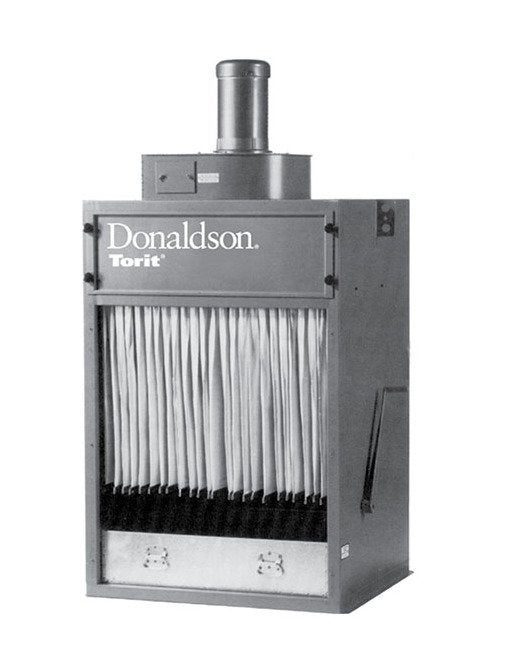

The Donaldson Torit Model Cabinet 90 Dust Collectors offer reliable and cost-effective solutions for in-plant dust and smoke control. With a high collection efficiency of over 99.9%, these compact units handle airflow from 1200 to 2000 cfm. Easy maintenance is ensured with quick access to dust drawers and pails, while the manually-operated filter shaker simplifies cleaning. Features like multiple inlet options, Energy Independence and Security Act compliance, and customizable construction choices make this dust collector ideal for diverse industrial applications.
Product Specifications
Additional Information
Four filter media and three construction choices provide a variety of options to customize the unit for your specific applicationInlet locations on top and three sides create installation flexibilityAll 60 Hz motors are compliant with the Energy Independence and Security Act of 2007 (ESIA)
Applications
GrindingBuffing and polishingMachiningMetalworkingPackagingAbrasive blastingDental labsTextiles
Note
Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.
Optional Features
Inlet collar kitsCasters for portabilitySuction-tube assembly55-gallon (208.2-liter) drum packSlide gate packWeather-protective paintChamber, attenuator, or stack silencerMagnehelic® (Magnehelic is a registered trademark of Dwyer Instruments, Inc.) gauge
Specifications Blower Motor
3 to 5 hp
Specifications Dust Drawer Shipping Weight
700 lb | 317.5 kg
Specifications External Static Pressure
3.6 to 7.5 inwg
Specifications Filter Area
250 ft² | 23.2 m²
Specifications Frequency
60 Hz
Specifications Hopper Shipping Weight
800 to 825 lb | 362.9 to 374.2 kg
Specifications Inlet Diameter
5 to 8 in | 76.2 mm
Specifications Inlet Quantity
1 to 2
Specifications Nominal Airflow
649 to 2000 ft³/min | 1102 to 3397 m³/h
Specifications Optional Voltage For 50 Hertz Hz Frequency And 3
380 V
Specifications Optional Voltage For 60 Hertz Hz Frequency And 1
115 V | 230 V
Specifications Optional Voltage For 60 Hertz Hz Frequency And 3
575 V
Specifications Phase
3
Specifications Pressure Drop Clean Filter
0.30 to 2.05 inwg
Specifications Velocity
4500 to 7275 fpm | 1371.6 to 2217.4 m/min
Specifications Voltage
208 V | 230 V | 460 V
Specifications Warranty
10 years
Standard Features
Heavy-gauge, fully-welded cabinetGalvanized shaker bagGalvanized dust drawerDynamically balanced steel fan wheelBlue, indoor, industrial-grade texturized finishTEFC blower motor (EISA compliant)Factory installed cotton-sateen filter packs
