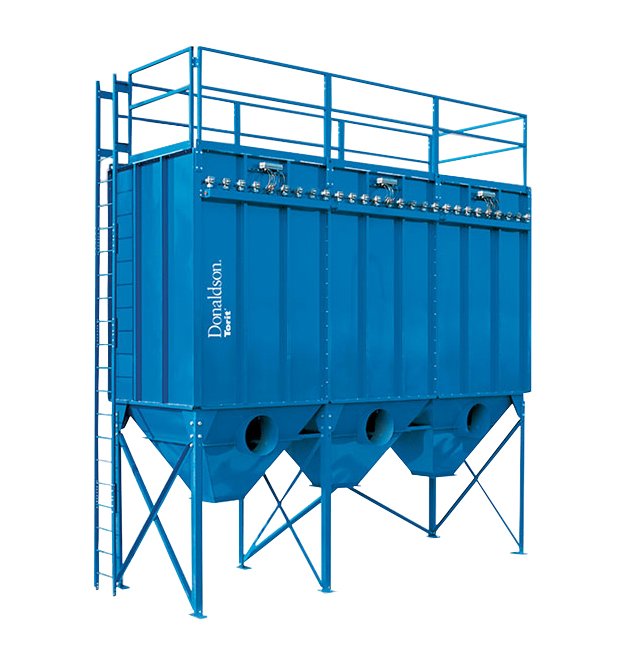

Donaldson Torit Model MBT Modular Baghouse Dust Collector
Donaldson Torit Model MBT Modular Baghouse Dust Collector
SKU:MOD-8e09ee
Reliable Donaldson Torit Model MBT Dust Collector with Dura-Life™ bag filters for efficient, low-emission operation.
Regular price
$9,999.99
Regular price
Sale price
$9,999.99
Unit price
per
Initiate Order
Donaldson Torit Model MBT Modular Baghouse Dust Collector
$9,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Model MBT Modular Baghouse Dust Collector
$9,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit Model MBT Modular Baghouse Dust Collector is engineered for reliable, continuous-duty operation with its innovative Dura-Life™ bag filters technology. With a spacious 518 ft² bag cloth area and options for higher air-to-media ratios, this dust collector ensures prolonged bag life, reduced emissions, and easy maintenance. The inclusion of Ultra-Web® Spunbond Pleated Bags captures dust efficiently while offering longer filter life, emission reduction, and downsizing capabilities for cost-efficiency. Designed with advanced features like integral fan options, tool-free installation, and maximized airflow, this baghouse provides optimal filtration performance for industrial and government applications.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

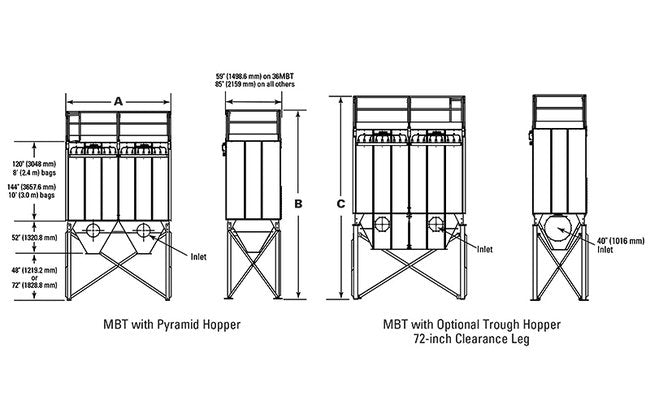

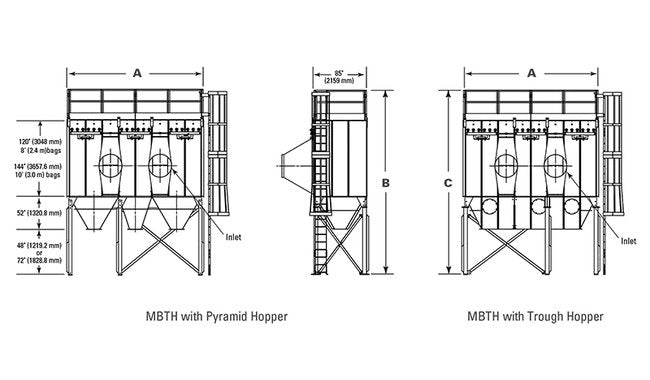

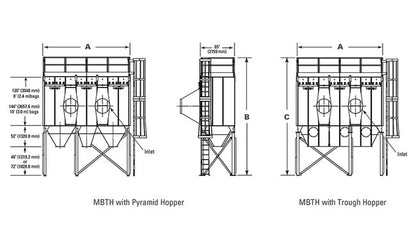

Dimensions Dimension A Mbtmbw
57.5 in | 1460.5 mm
Dimensions Dimension B Mbt 48 In
244.2 in | 6202.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
518 ft² | 48.1 m²
Specifications Number Of Bags
54
Specifications Number Of Valves
6
Specifications Plated Bag Media Area 20 Inch In Uw
637 ft² | 59.2 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 60 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 80 Inch In Uw
2554 ft² | 237.3 m²
Specifications Shipping Weight
3900 lb | 1769.0 kg
Specifications Warranty
10 years
