Donaldson Torit Modular Baghouse 2598 ft² Dust Collector
Donaldson Torit Modular Baghouse 2598 ft² Dust Collector
SKU:MOD-025159
Reliable, efficient, and durable dust collector with Dura-Life™ bag filters for extended lifespan and reduced emissions.
Regular price
$17,999.99
Regular price
Sale price
$17,999.99
Unit price
per
Initiate Order
Donaldson Torit Modular Baghouse 2598 ft² Dust Collector
$17,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Modular Baghouse 2598 ft² Dust Collector
$17,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Modular Baghouse 2598 ft² Dust Collector is a state-of-the-art solution for reliable, efficient, and continuous-duty dust filtration. Featuring Dura-Life™ bag filters for extended lifespan and reduced emissions, this system offers high body inlet models for optimal air-to-media ratios, square models for cost-efficiency, and Ultra-Web® SB Pleated Bag Option for enhanced filtration. With computer-designed inlets, advanced valves, and easy maintenance, this dust collector ensures superior performance and longevity, making it an ideal choice for institutional and government buyers seeking high-quality air filtration solutions.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

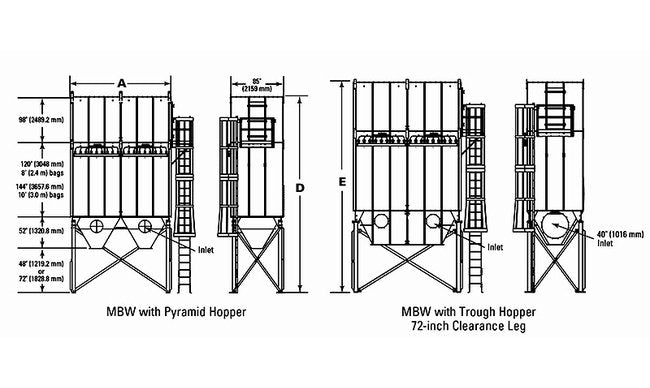

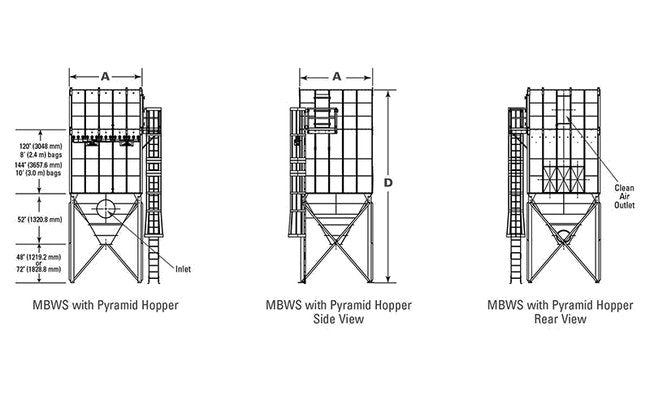

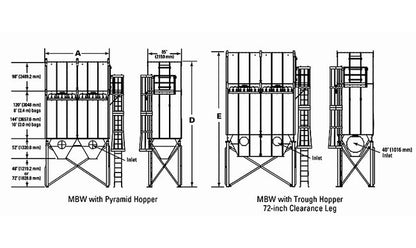

Dimensions Dimension A Mbtmbw
215.0 in | 5461.0 mm
Dimensions Dimension B Mbt 48 In
292.3 in | 7424.4 mm
Dimensions Dimension B Mbt 72 In
316.3 in | 8034.0 mm
Dimensions Dimension C Mbt
316.3 in | 8034 mm
Dimensions Dimension D Mbt 48 In
342.1 in | 8689.3 mm
Dimensions Dimension D Mbt 72 In
366.1 in | 9298.9 mm
Dimensions Dimension E Mbw
366.1 in | 9298.9 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
2598 ft² | 241.4 m²
Specifications Number Of Bags
162
Specifications Number Of Valves
18
Specifications Plated Bag Media Area 20 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 40 Inch In Uw
3823 ft² | 355.2 m²
Specifications Plated Bag Media Area 60 Inch In Uw
5735 ft² | 532.8 m²
Specifications Plated Bag Media Area 80 Inch In Uw
7663 ft² | 711.9 m²
Specifications Shipping Weight
15302 lb | 6940.9 kg
Specifications Warranty
10 years
