Donaldson Torit Modular Baghouse 4156 ft² Dust Collector
Donaldson Torit Modular Baghouse 4156 ft² Dust Collector
SKU:MOD-d9f434
Reliable and efficient 4156 ft² Modular Baghouse Dust Collector by Donaldson Torit. Long bag life, reduced emissions, and easy maintenance. Ideal for industrial use.
Regular price
$15,999.00
Regular price
Sale price
$15,999.00
Unit price
per
Initiate Order
Donaldson Torit Modular Baghouse 4156 ft² Dust Collector
$15,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit Modular Baghouse 4156 ft² Dust Collector
$15,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit Modular Baghouse 4156 ft² Dust Collector offers exceptional efficiency and durability for continuous-duty industrial dust collection. Featuring Dura-Life™ bag filters for extended life and reduced emissions, this unit ensures reliable, pulse-jet operation. With a warranty of 10 years, 324 bags, and 36 valves, it provides a high bag cloth area of 4156 ft². The welded design enhances durability, while the Ultra-Web® Pleated Bag Option and tool-free installation make maintenance easy and cost-effective. Ideal for institutional buyers seeking long-term value and compliance with stringent industry standards.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

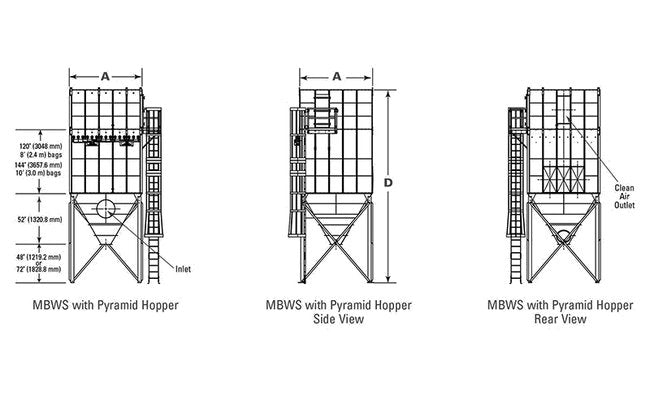

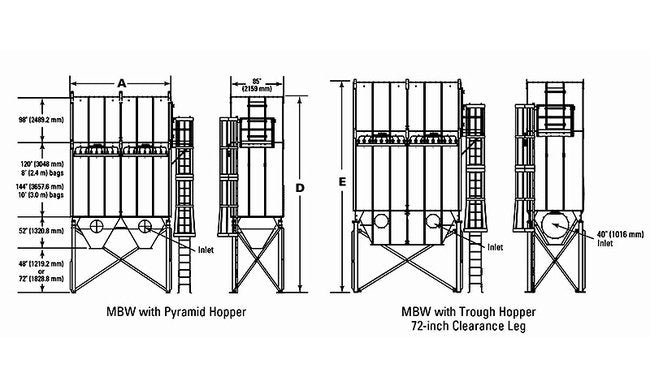

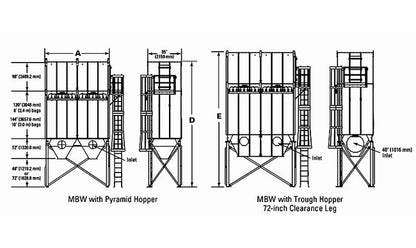

Dimensions Dimension A Mbtmbw
395.5 in | 10045.7 mm
Dimensions Dimension B Mbt 48 In
268.1 in | 6809.7 mm
Dimensions Dimension B Mbt 72 In
292.1 in | 7419.3 mm
Dimensions Dimension C Mbt
292.1 in | 7419.3 mm
Dimensions Dimension D Mbt 48 In
294.1 in | 7470.1 mm
Dimensions Dimension D Mbt 72 In
318.1 in | 8079.7 mm
Dimensions Dimension E Mbw
318.1 in | 8079.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
4156 ft² | 386.1 m²
Specifications Number Of Bags
324
Specifications Number Of Valves
36
Specifications Plated Bag Media Area 20 Inch In Uw
3823 ft² | 355.2 m²
Specifications Plated Bag Media Area 40 Inch In Uw
7646 ft² | 710.4 m²
Specifications Plated Bag Media Area 60 Inch In Uw
11470 ft² | 1065.6 m²
Specifications Plated Bag Media Area 80 Inch In Uw
15325 ft² | 1423.8 m²
Specifications Shipping Weight
21755 lb | 9867.9 kg
Specifications Warranty
10 years
