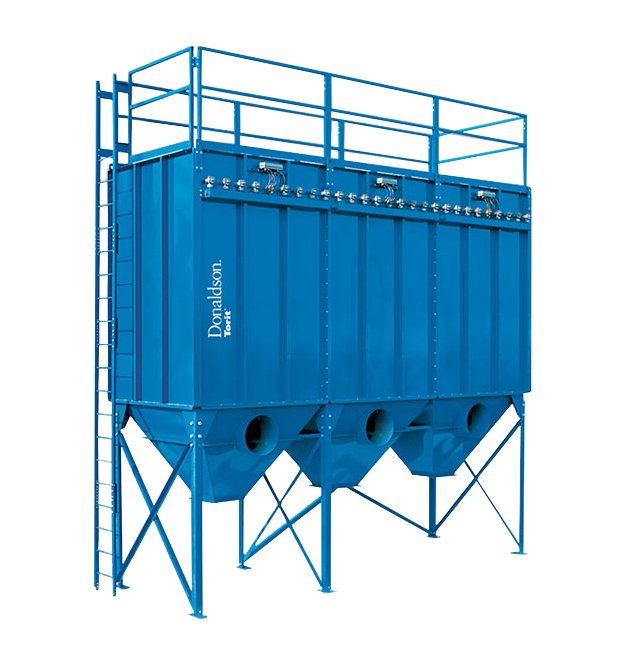

Donaldson Torit Modular Baghouse MBT 1039 ft² Dust Collector
Donaldson Torit Modular Baghouse MBT 1039 ft² Dust Collector
SKU:MOD-2d4b2c
Reliable, efficient, and compliant dust collector with Dura-Life™ bag filters for reduced emissions.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Donaldson Torit Modular Baghouse MBT 1039 ft² Dust Collector
$7,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Modular Baghouse MBT 1039 ft² Dust Collector
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit Modular Baghouse MBT 1039 Square feet Dust Collector is designed for reliable and efficient continuous-duty operation. Featuring breakthrough Dura-Life™ bag filters, it offers longer bag life and reduced emissions. With features like high body inlet models for higher air-to-media ratios, Dura-Life™ Bag Filters, and Ultra-Web® SB Pleated Bag Option, this dust collector provides easy maintenance, optimal airflow, and enhanced durability. The option for pleated filters with Ultra-Web® nanofiber technology ensures superior dust capture, reduced emissions, longer filter life, and cost savings. It complies with federal and industry standards, making it a valuable choice for government and institutional buyers.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

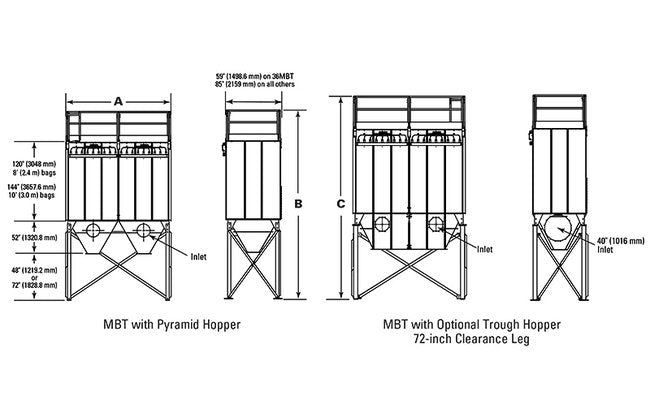

Dimensions Dimension A Mbtmbw
85.0 in | 2159.0 mm
Dimensions Dimension B Mbt 48 In
268.2 in | 6812.3 mm
Dimensions Dimension B Mbt 72 In
292.2 in | 7421.9 mm
Dimensions Dimension D Mbt 48 In
294.1 in | 7470.1 mm
Dimensions Dimension D Mbt 72 In
318.1 in | 8079.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
1039 ft² | 96.5 m²
Specifications Number Of Bags
81
Specifications Number Of Valves
9
Specifications Plated Bag Media Area 20 Inch In Uw
956 ft² | 88.8 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 60 Inch In Uw
2867 ft² | 266.4 m²
Specifications Plated Bag Media Area 80 Inch In Uw
3831 ft² | 355.9 m²
Specifications Shipping Weight
5800 lb | 2630.8 kg
Specifications Warranty
10 years
