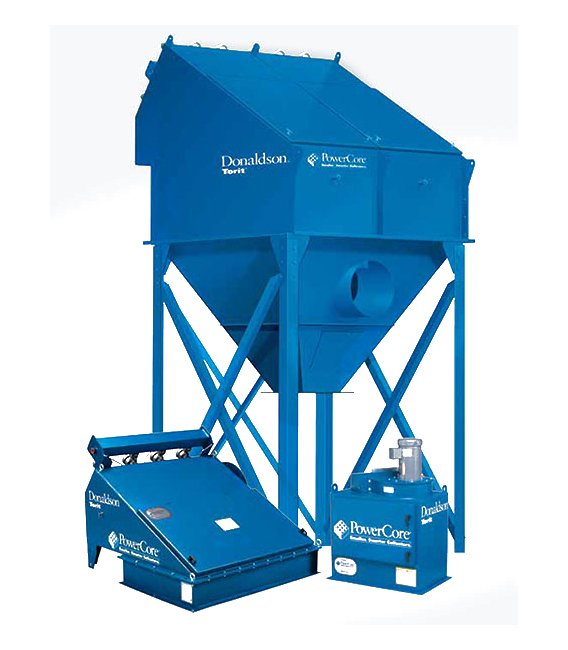

Donaldson Torit PowerCore CP Series Dust Collector
Donaldson Torit PowerCore CP Series Dust Collector
SKU:TOR-0ac94b
The Donaldson Torit PowerCore CP Series Dust Collector: compact, efficient, and durable. Revolutionizing dust collection.
Regular price
$7,999.00
Regular price
Sale price
$7,999.00
Unit price
per
Initiate Order
Donaldson Torit PowerCore CP Series Dust Collector
$7,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore CP Series Dust Collector
$7,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit PowerCore CP Series 46.8 Inch Dimension A and 134.2 Inch Dimension B Dust Collector revolutionizes dust collection with its compact PowerCore filter pack featuring Ultra-Web advanced nanofiber technology. Offering a high nominal airflow of 1400 to 2700 ft³/min, 252 ft² PowerCore filter area, and durable construction, this dust collector ensures efficient particle filtration, easy maintenance, and seismic and wind-load durability. Ideal for industrial environments requiring superior dust control.
Product Specifications

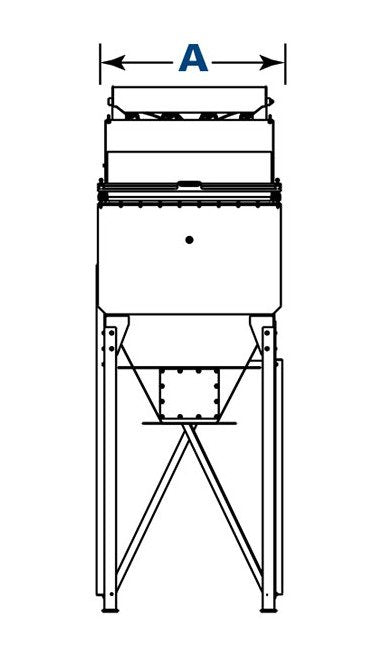

Dimensions Dimension A
46.8 in | 1188.7 mm

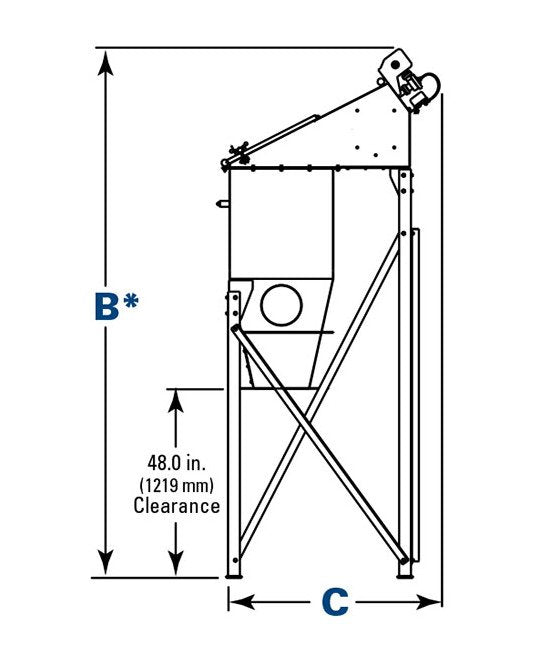

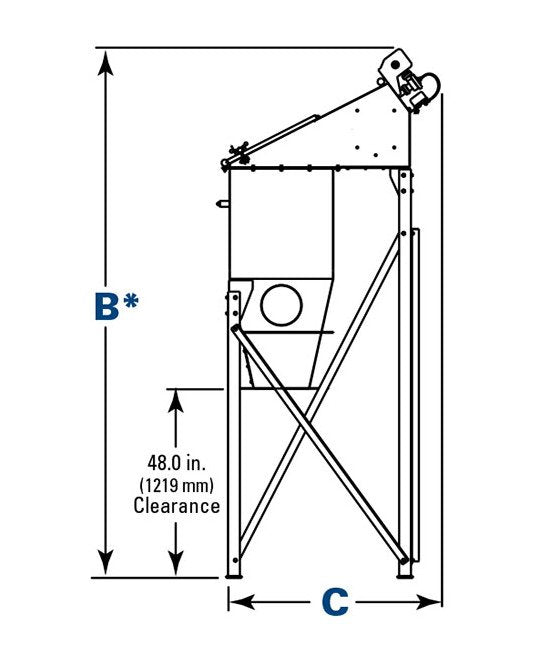

Dimensions Dimension B
134.2 in | 3408.7 mm
Dimensions Dimension C
55.5 in | 1409.7 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
1400 to 2700 ft³/min | 2378 to 4586 m³/h
Specifications Number Of Filter Packs
4
Specifications Number Of Valves
4
Specifications Powercore Filter Area
252 ft² | 23.4 m²
Specifications Shipping Weight
1020 lb | 462.7 kg
