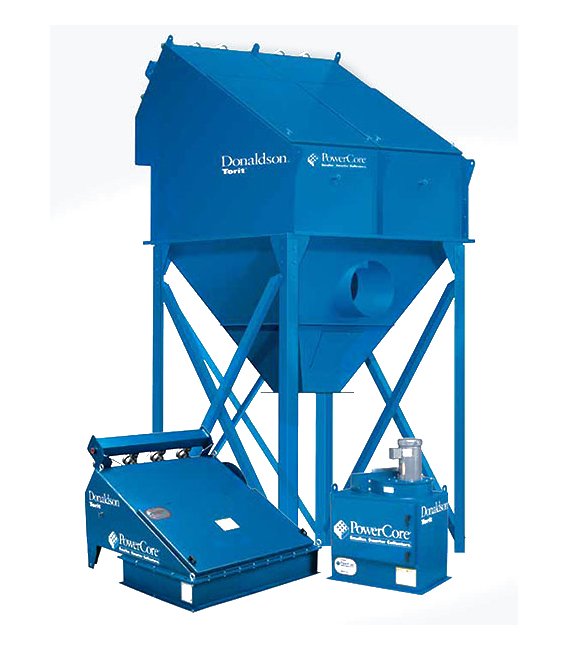

Donaldson Torit PowerCore CP Series Dust Collector
Donaldson Torit PowerCore CP Series Dust Collector
SKU:TOR-b88c5b
Revolutionize your air filtration system with the Donaldson Torit PowerCore CP Series Dust Collector.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Donaldson Torit PowerCore CP Series Dust Collector
$12,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore CP Series Dust Collector
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial air filtration with the Donaldson Torit PowerCore CP Series Dust Collector. This innovative solution features compact PowerCore filter packs, offering superior filter area in a smaller space. With a nominal airflow range of 5600 to 11000 ft³/min, 16 PowerCore filter packs, and advanced Ultra-Web nanofiber technology, this dust collector is efficient, reliable, and easy to maintain. Compliant with federal procurement standards and seismic/wind load ratings, it ensures top performance even in challenging conditions.
Product Specifications

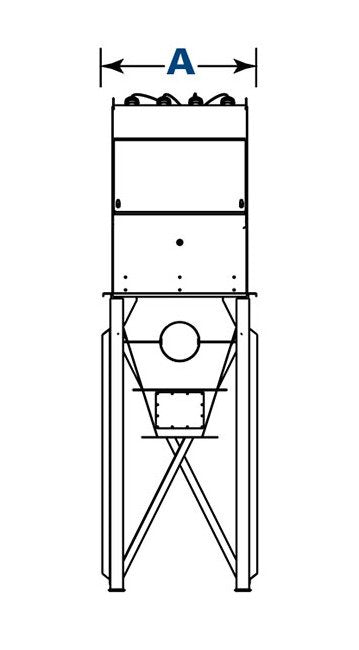

Dimensions Dimension A
90 in | 2286.0 mm

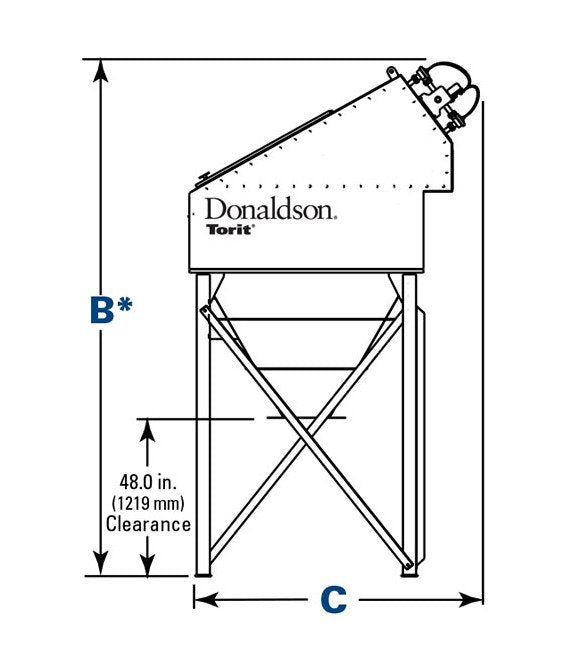

Dimensions Dimension B
169.2 in | 4297.7 mm
Dimensions Dimension C
85.0 in | 2159.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
5600 to 11000 ft³/min | 9512 to 18685 m³/h
Specifications Number Of Filter Packs
16
Specifications Number Of Valves
16
Specifications Powercore Filter Area
1008 ft² | 93.6 m²
Specifications Shipping Weight
2915 lb | 1322.2 kg
