Donaldson Torit PowerCore CP Series Dust Collector - 132.0 in Dimension A, 152.2 in Dimension B
Donaldson Torit PowerCore CP Series Dust Collector - 132.0 in Dimension A, 152.2 in Dimension B
SKU:TOR-365bae
Experience superior dust collection with the Torit PowerCore CP Series Dust Collector - advanced technology in a compact design.
Regular price
$14,999.00
Regular price
Sale price
$14,999.00
Unit price
per
Initiate Order
Donaldson Torit PowerCore CP Series Dust Collector - 132.0 in Dimension A, 152.2 in Dimension B
$14,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore CP Series Dust Collector - 132.0 in Dimension A, 152.2 in Dimension B
$14,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

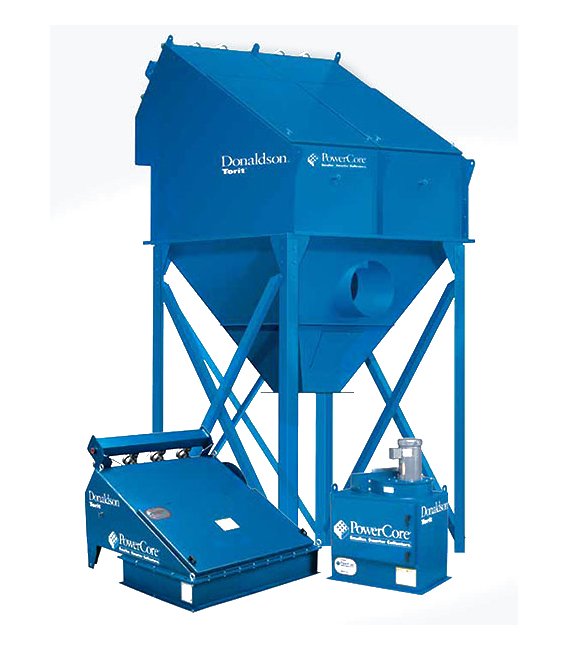

The Torit® PowerCore® CP Series Dust Collector revolutionizes dust collection with its compact PowerCore® filter packs. Featuring Donaldson®'s advanced Ultra-Web® nanofiber technology, this unit maximizes filtering area while minimizing space, equivalent to 6 traditional filter bags. With a nominal airflow of 8400 to 16500 ft³/min, 24 filter packs, and a PowerCore® filter area of 1512 ft², it ensures efficient particle capture. Seismically tested, with a wind load rating of 90 mph, and designed for operating temperatures up to 150 ºF, this dust collector is reliable and durable for industrial environments.
Product Specifications

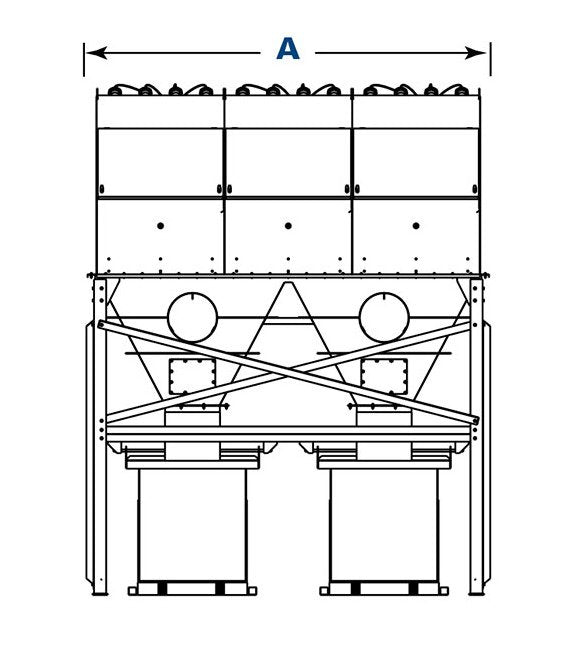

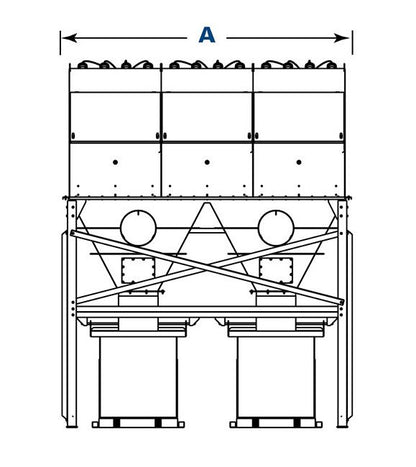

Dimensions Dimension A
132.0 in | 3352.8 mm

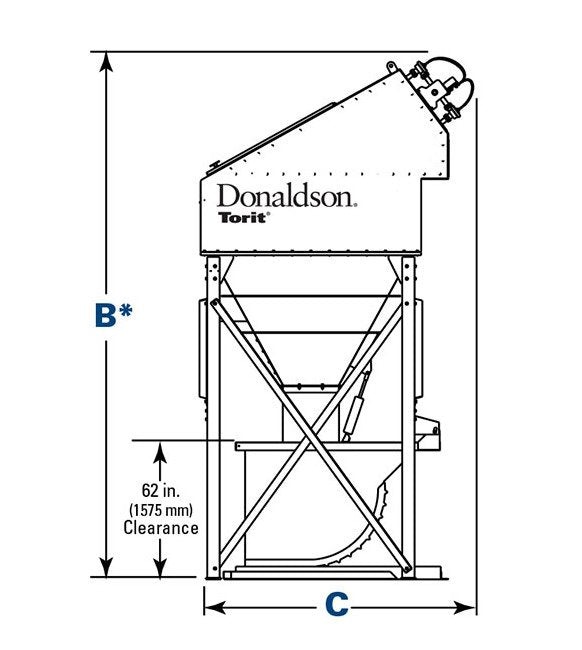

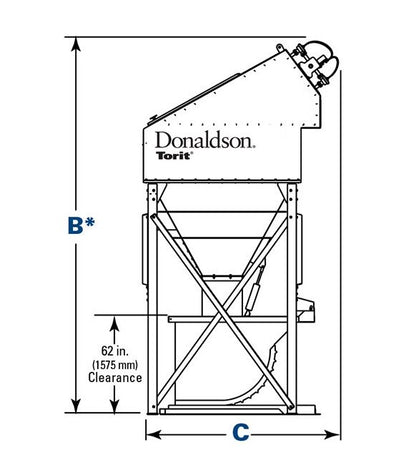

Dimensions Dimension B
152.2 in | 3865.9 mm
Dimensions Dimension C
85.0 in | 2159.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
8400 to 16500 ft³/min | 14269 to 28028 m³/h
Specifications Number Of Filter Packs
24
Specifications Number Of Valves
24
Specifications Powercore Filter Area
1512 ft² | 140.5 m²
Specifications Shipping Weight
3880 lb | 1759.9 kg
