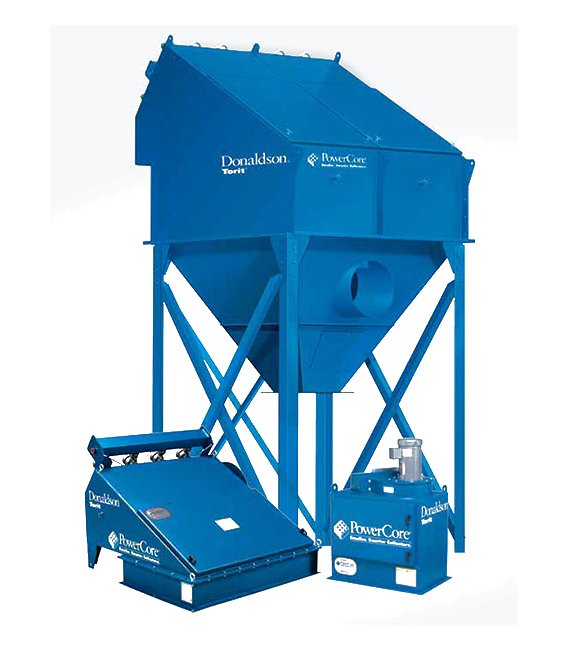

Donaldson Torit PowerCore CP Series Dust Collector (26.8" x 37.2")
Donaldson Torit PowerCore CP Series Dust Collector (26.8" x 37.2")
SKU:TOR-c2ae23
Revolutionize dust filtration with Donaldson Torit PowerCore CP Series 26.8" x 37.2" Dust Collector. Compact, efficient, superior filtration.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Donaldson Torit PowerCore CP Series Dust Collector (26.8" x 37.2")
$4,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore CP Series Dust Collector (26.8" x 37.2")
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit PowerCore CP Series 26.8" x 37.2" Dust Collector revolutionizes dust filtration with compact PowerCore technology. Offering a substantial 126 ft² filtering area, this unit combines efficiency and ease of handling. Utilizing Ultra-Web advanced nanofiber media, it provides superior filtration performance for airflow ranging from 450 to 1400 ft³/min. Ensure cleaner air and enhanced workplace safety with this reliable solution.
Product Specifications

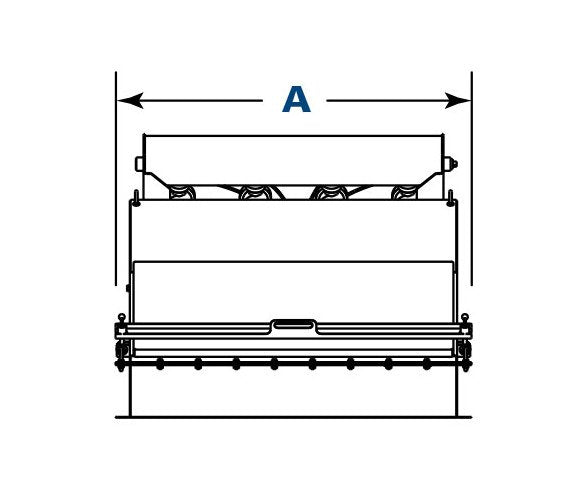

Dimensions Dimension A
26.8 in | 680.7 mm

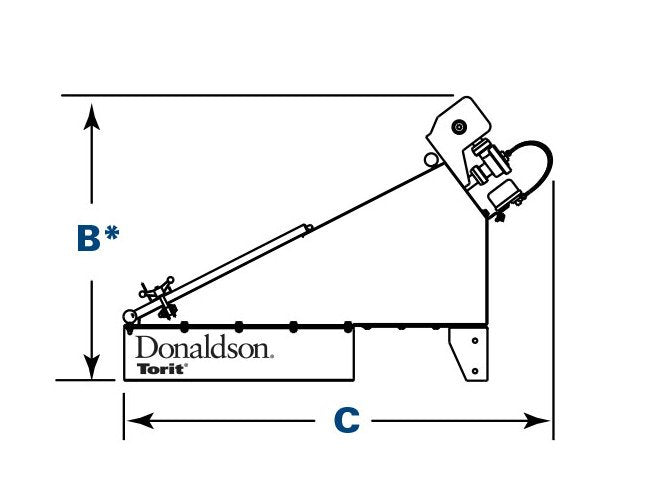

Dimensions Dimension B
37.2 in | 944.9 mm
Dimensions Dimension C
47.7 in | 1211.6 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 2, 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
20 inwg
Specifications Nominal Airflow
450 to 1400 ft³/min | 764 to 2378 m³/h
Specifications Number Of Filter Packs
2
Specifications Number Of Valves
2
Specifications Powercore Filter Area
126 ft² | 11.7 m²
Specifications Shipping Weight
290 lb | 131.5 kg
