Donaldson Torit PowerCore CP Series Dust Collector - 28.0in Dimension A, 22.3in Dimension B
Donaldson Torit PowerCore CP Series Dust Collector - 28.0in Dimension A, 22.3in Dimension B
SKU:TOR-4b06c0
Revolutionize dust collection with the compact Donaldson Torit PowerCore CP Series Dust Collector
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Donaldson Torit PowerCore CP Series Dust Collector - 28.0in Dimension A, 22.3in Dimension B
$2,899.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore CP Series Dust Collector - 28.0in Dimension A, 22.3in Dimension B
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

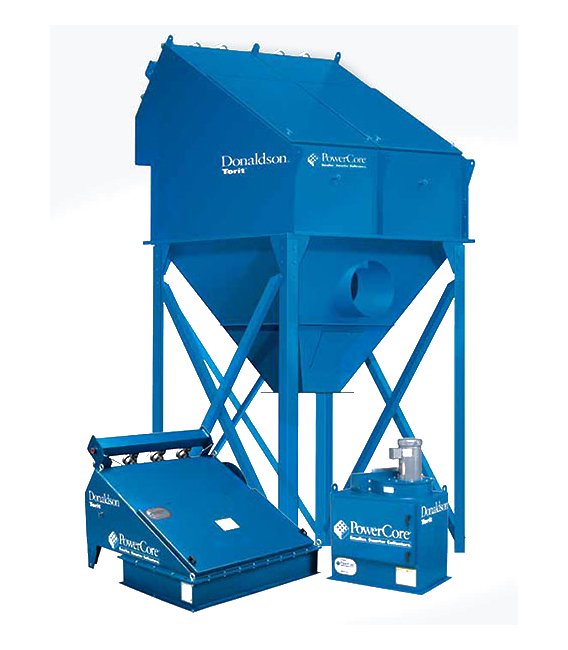

The Donaldson Torit PowerCore CP Series 28.0in Dimension A and 22.3in Dimension B Dust Collector revolutionizes dust collection with its compact design and superior filtration technology. Featuring PowerCore filter packs with Ultra-Web nanofiber media, this unit offers exceptional efficiency and a smaller footprint, replacing 6 traditional filter bags with just one. With a nominal airflow of 0 to 700 ft³/min and seismic/wind load ratings, it ensures reliable performance in varied conditions. Ideal for industrial settings seeking high-performance, space-saving dust collection solutions.
Product Specifications

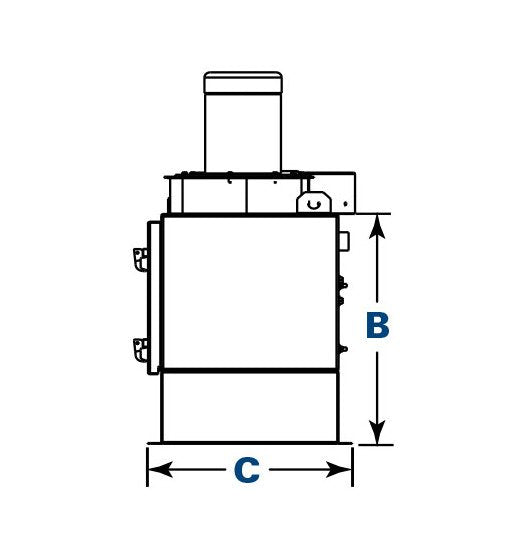

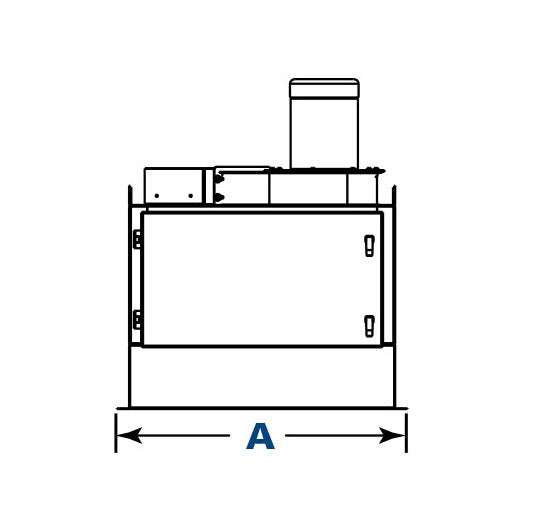

Dimensions Dimension A
28.0 in | 711.2 mm

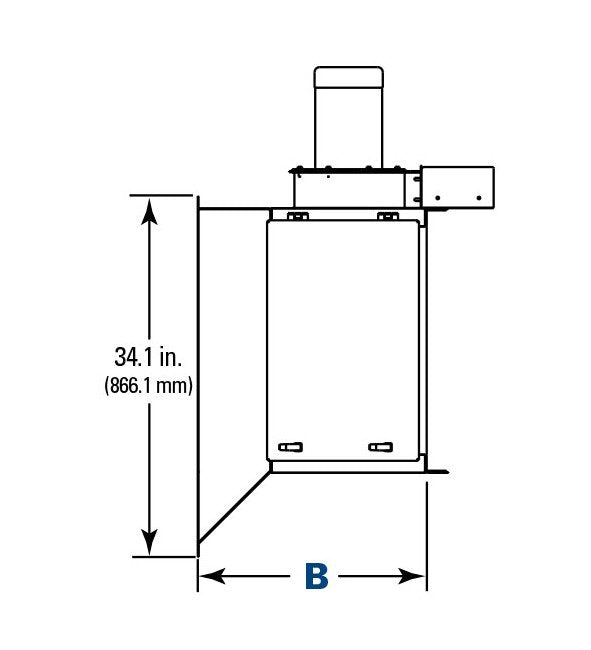

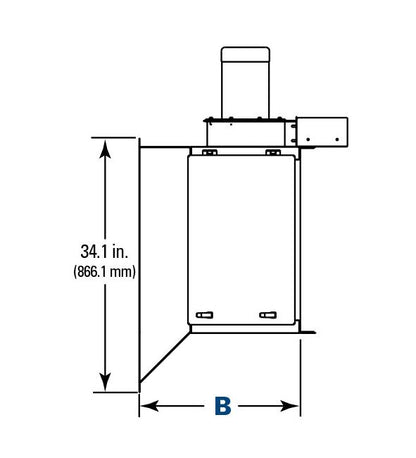

Dimensions Dimension B
22.3 in | 566.4 mm

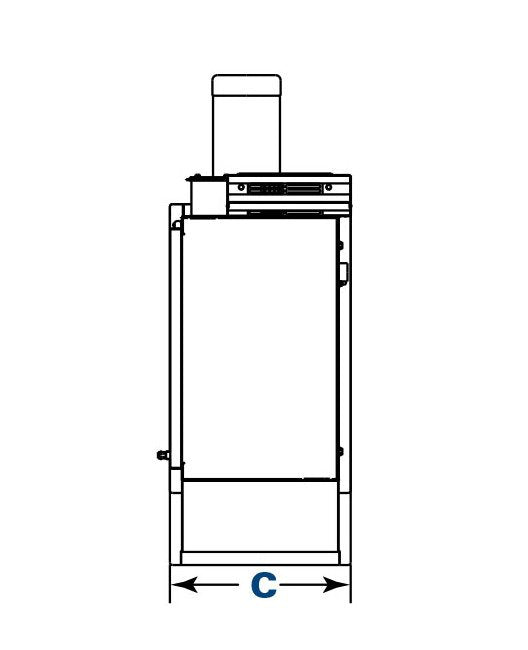

Dimensions Dimension C
17.6 in | 447.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 2, 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
12 inwg
Specifications Nominal Airflow
0 to 700 ft³/min | 0 to 1189 m³/h
Specifications Note For Shipping Weight
Shipping weight with integral fan is 160 lbs. (72.6 kg)
Specifications Number Of Filter Packs
1
Specifications Number Of Valves
3
Specifications Powercore Filter Area
63 ft² | 5.9 m²
Specifications Shipping Weight
120 lb | 54.4 kg
