Donaldson Torit PowerCore CP Series Dust Collector 38.0" x 46.1"
Donaldson Torit PowerCore CP Series Dust Collector 38.0" x 46.1"
SKU:TOR-ccb37c
Revolutionize dust collection with Donaldson Torit PowerCore CP Series 38.0" x 46.1" Dust Collector. Efficient, compact, and compliant.
Regular price
$4,899.00
Regular price
Sale price
$4,899.00
Unit price
per
Initiate Order
Donaldson Torit PowerCore CP Series Dust Collector 38.0" x 46.1"
$4,899.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore CP Series Dust Collector 38.0" x 46.1"
$4,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

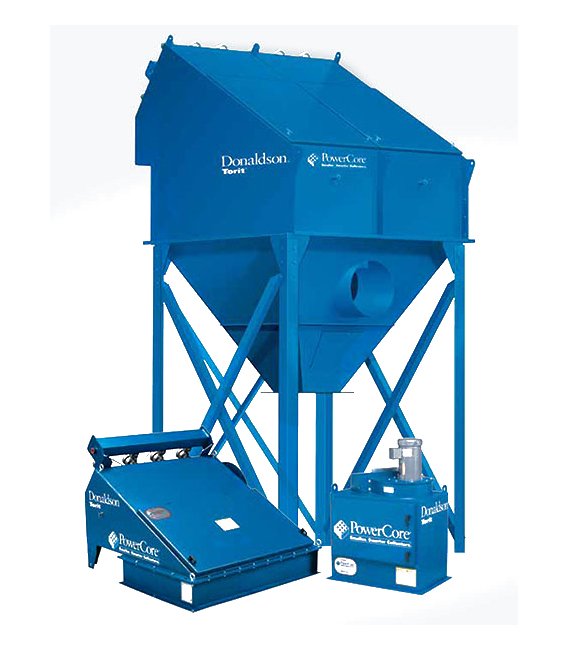

The Donaldson Torit® PowerCore® CP Series 38.0" x 46.1" Dust Collector revolutionizes the industry with its compact yet powerful design. Featuring advanced Ultra-Web® nanofiber technology, this dust collector offers unparalleled filtering efficiency. With a nominal airflow of 2100 to 4100 ft³/min, 6 PowerCore® filter packs, and a filter area of 378 ft², it ensures optimal performance. Designed to meet seismic, wind load, and operational temperature standards, this dust collector is an ideal choice for both consumer and institutional applications.
Product Specifications

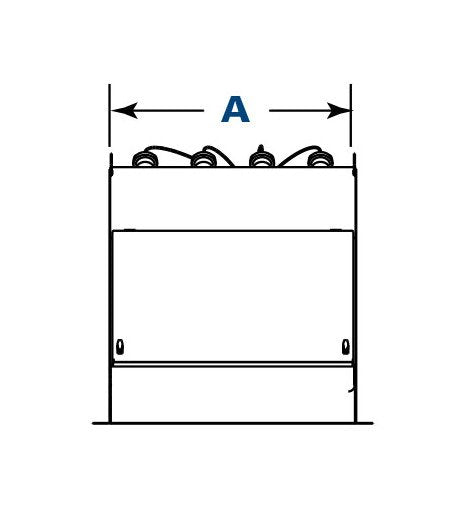

Dimensions Dimension A
38 in | 965.2 mm

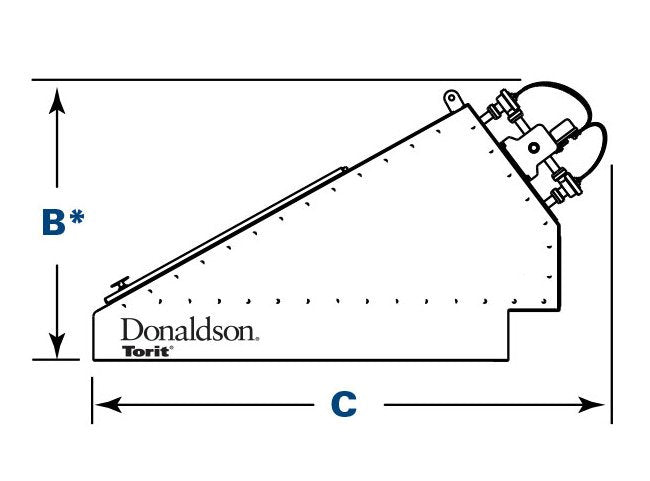

Dimensions Dimension B
46.1 in | 1170.9 mm
Dimensions Dimension C
83.6 in | 2123.4 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 2, 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
20 inwg
Specifications Nominal Airflow
2100 to 4100 ft³/min | 3567 to 6964 m³/h
Specifications Number Of Filter Packs
6
Specifications Number Of Valves
6
Specifications Powercore Filter Area
378 ft² | 35.1 m²
Specifications Shipping Weight
715 lb | 324.3 kg
