Donaldson Torit PowerCore TG Series 12 Valve Dust Collector
Donaldson Torit PowerCore TG Series 12 Valve Dust Collector
SKU:TOR-212032
Revolutionary compact 12 Valve Dust Collector for cleaner air in welding & cutting applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson Torit PowerCore TG Series 12 Valve Dust Collector
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit PowerCore TG Series 12 Valve Dust Collector
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

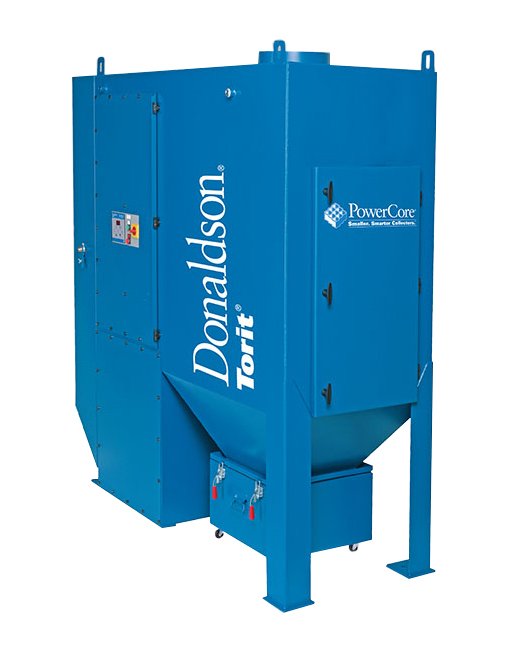

The Donaldson Torit PowerCore TG Series 12 Valve Dust Collector is a revolutionary solution for thermally generated dust, offering unmatched compactness with up to 65% smaller footprint than traditional collectors. With a nominal airflow ranging from 5760 to 13440 ft³/min and 12 power-packed filter packs, this collector ensures superior air quality in welding, cutting, and thermal spray applications. Equipped with smart technology and sturdy steel construction compliant with International Building Code standards, this collector stands out for its efficiency, durability, and ease of maintenance.
Product Specifications
Additional Information
Torit® PowerCore® TG collectors' strong and sleek all-welded housing is the ideal fit as a stand-alone on the plant floor or integrated into an OEM design. Factor in the energy saver package, quiet motor and smart controls specifically designed for metalworking, and the choice is clear. Torit® PowerCore® TG is the best combination of footprint, appearance and performance.
Applications
While PowerCore® filter packs are new to the metalworking market, they have a proven track record in other related filtration industries. Donaldson® offers them in many shapes and sizes for high performance vehicles, construction, agricultural and medium/heavy duty transportation applications as well as gas turbine air intakes that protect multi-million dollar turbine engines for power plants across the globe. Donaldson® Torit® introduced the PowerCore® CPC and CPV collectors for the baghouse markets in 2008.

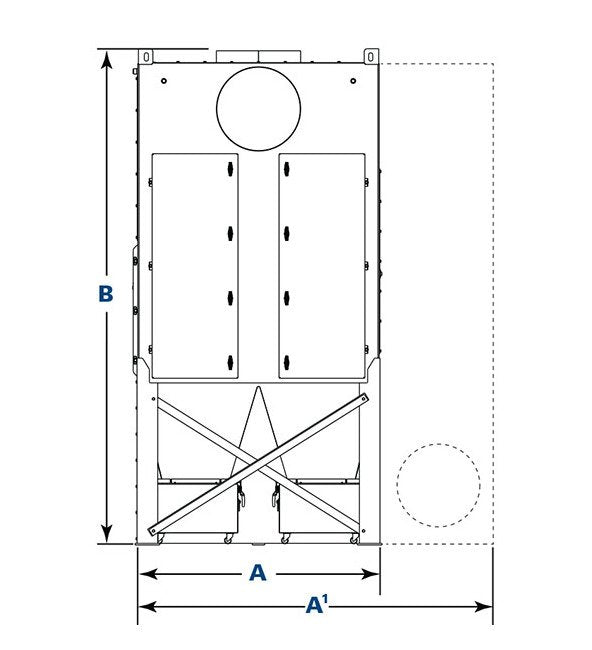

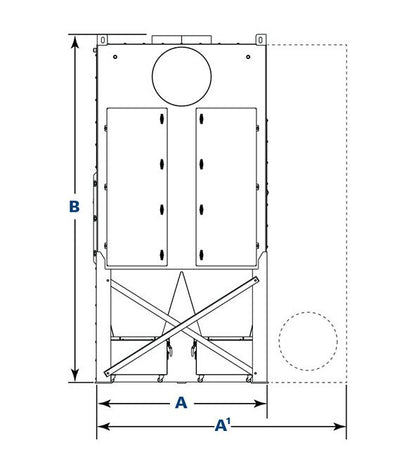

Dimensions Dimension A
59.7 in
Dimensions Dimension A1
85.6 in
Dimensions Dimension B
120.3 in
Dimensions Dimension C
83.2 in
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Frequency
60 Hz
Operating Conditions Horsepower
20 hp
Operating Conditions Housing Construction Material Thickness
3/16 to 12 gauge steel compliant with Per International Building Code (IBC) 2006
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Reinforced Housing Rating
0.16 bar
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Operating Conditions Sound Level
71 to 74 dBA
Operating Conditions Standard Housing Rating
15 in | 381.0 mm
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Low Inlet Box Shipping Weight
4700 lb

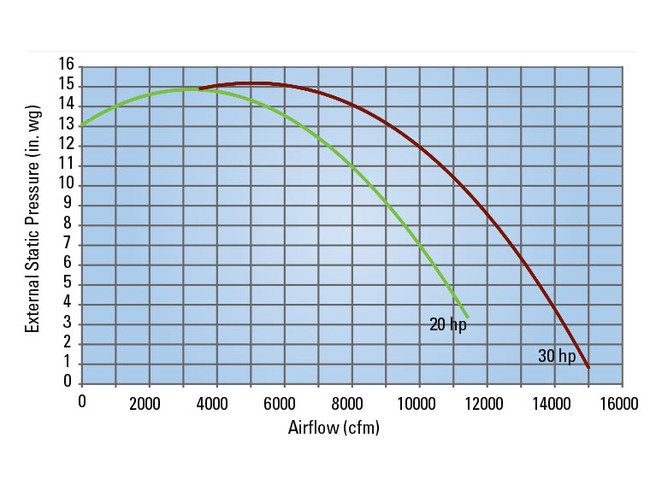

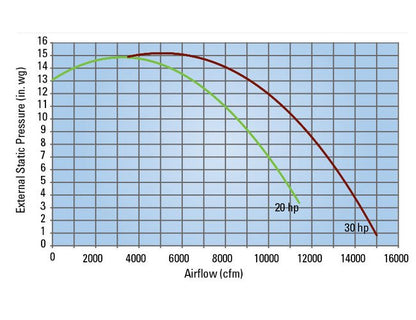

Specifications Nominal Airflow
5760 to 13440 ft³/min
Specifications Number Of Filter Packs
12
Specifications Number Of Valves
12
Specifications Peak Pulse Noise
92.7 dBA
Specifications Powercore Filter Area
1764 ft²
Specifications R Housing Shipping Weight
4600 lb
Specifications Standard Housing Shipping Weight
4120 lb
