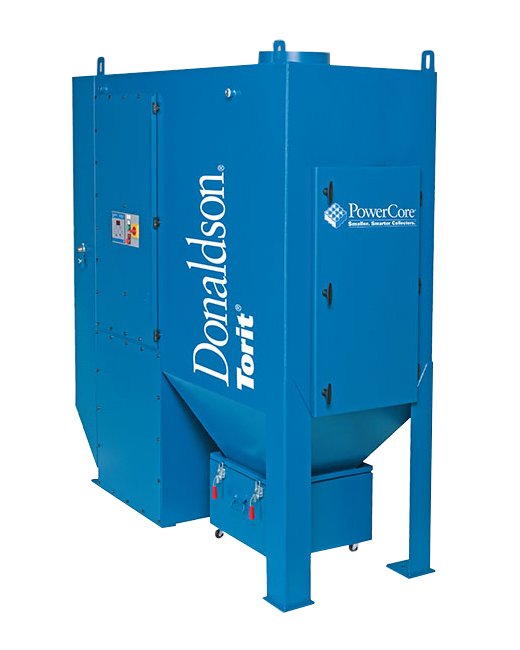

The Donaldson Torit PowerCore TG Series 4 Valve Dust Collector is a game-changer in the realm of dust and fume collection technology. This innovative system boasts a compact design, with a footprint up to 65% smaller than typical cartridge collectors, yet delivers exceptional performance with a nominal airflow ranging from 1920 to 5500 ft³/min. Equipped with 4 PowerCore® filter packs and valves, this dust collector ensures efficient filtration in welding, laser cutting, plasma cutting, and thermal spray applications. With robust construction materials and smart controls, this collector guarantees cleaner air and optimal performance in industrial settings.
Product Specifications
Additional Information
Torit® PowerCore® TG collectors' strong and sleek all-welded housing is the ideal fit as a stand-alone on the plant floor or integrated into an OEM design. Factor in the energy saver package, quiet motor and smart controls specifically designed for metalworking, and the choice is clear. Torit® PowerCore® TG is the best combination of footprint, appearance and performance.
Applications
While PowerCore® filter packs are new to the metalworking market, they have a proven track record in other related filtration industries. Donaldson® offers them in many shapes and sizes for high performance vehicles, construction, agricultural and medium/heavy duty transportation applications as well as gas turbine air intakes that protect multi-million dollar turbine engines for power plants across the globe. Donaldson® Torit® introduced the PowerCore® CPC and CPV collectors for the baghouse markets in 2008.Plasma Cutting, Laser Cutting

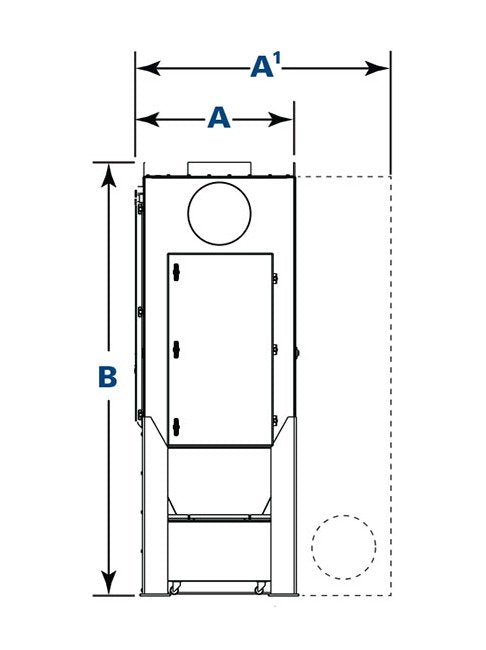

Dimensions Dimension A
31.0 in
Dimensions Dimension A1
47.1 in
Dimensions Dimension B
86.1 in
Dimensions Dimension C
82.1 in
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Frequency
60 Hz
Operating Conditions Horsepower
7.5 hp
Operating Conditions Housing Construction Material Thickness
3/16 to 12 gauge steel compliant with Per International Building Code (IBC) 2006
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Reinforced Housing Rating
0.15 bar
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Operating Conditions Sound Level
71 to 74 dBA
Operating Conditions Standard Housing Rating
12 in | 304.8 mm
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Low Inlet Box Shipping Weight
2025 lb

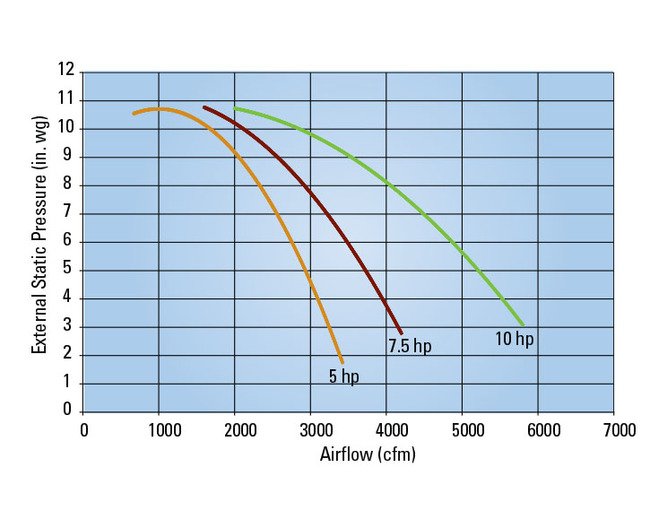

Specifications Nominal Airflow
1920 to 5500 ft³/min
Specifications Number Of Filter Packs
4
Specifications Number Of Valves
4
Specifications Peak Pulse Noise
92.7 dBA
Specifications Powercore Filter Area
588 ft²
Specifications R Housing Shipping Weight
1650 lb
Specifications Standard Housing Shipping Weight
1600 lb
