Donaldson Torit RF Baghouse Dust Collector
Donaldson Torit RF Baghouse Dust Collector
SKU:RFB-0959c6
Efficiently handle heavy dust loads with the Donaldson Torit RF Baghouse Dust Collector for superior performance.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Donaldson Torit RF Baghouse Dust Collector
$24,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit RF Baghouse Dust Collector
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® RF Baghouse Dust Collector sets the standard for handling heavy dust loads and large volumes of air efficiently. Featuring a compact design combining a cyclone precleaner and a baghouse, this collector boasts a powerful cleaning system that eliminates the need for compressed air. With award-winning Dura-Life™ bag filters and energy-efficient operation, the RF model outperforms competitors while using significantly less energy. Its innovative features, such as the Even-Air™ Flow Straightener and clean-air bag access, ensure optimal performance and ease of maintenance for industrial applications.
Product Specifications

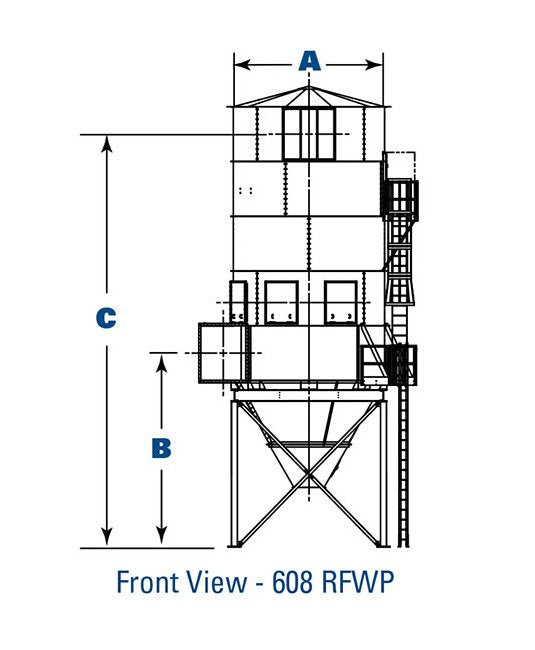

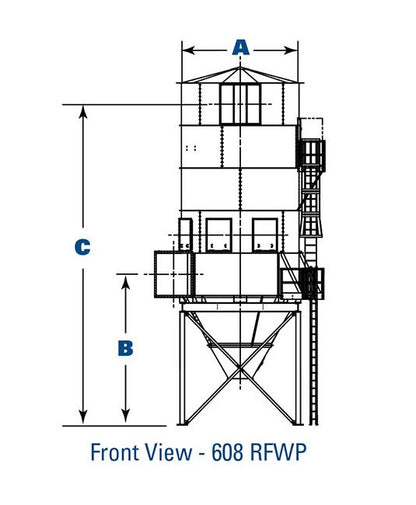

Dimensions Dimension A
188.0 in | 4775.2 mm
Dimensions Dimension B
234.2 in | 5948.7 mm
Dimensions Dimension C
498.5 in | 12661.9 mm
Dimensions Dimension D
553.3 in | 14053.8 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
15.0 hp
Specifications Bag Cloth Area
7909 ft² | 735 m²
Specifications Number Of Bags
608
Specifications Plated Bag Media Area 30 Inch In Uw
8086 ft² | 751 m²
Specifications Plated Bag Media Area 40 Inch In Uw
10579 ft² | 983 m²
Specifications Plated Bag Media Area 60 Inch In Uw
16172 ft² | 1502 m²
Specifications Plated Bag Media Area 80 Inch In Uw
21219 ft² | 1971 m²
Specifications Shipping Weight
41505 lb | 18826.4 kg
Specifications Type
Walk-In Plenum for Sheltered Bag Removal
Specifications Warranty
10 years
