The Donaldson® Torit® RF Baghouse Dust Collector excels at handling heavy dust loads with its rugged design. Featuring a walk-in plenum for sheltered bag removal and 570 bags, this collector offers a massive 7415 ft² bag cloth area. With advanced features like Dura-Life™ Twice the Life bag filters and Ultra-Web® SB pleated bag option, it ensures efficient dust filtration while minimizing energy consumption. This unit also complies with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors.
Product Specifications

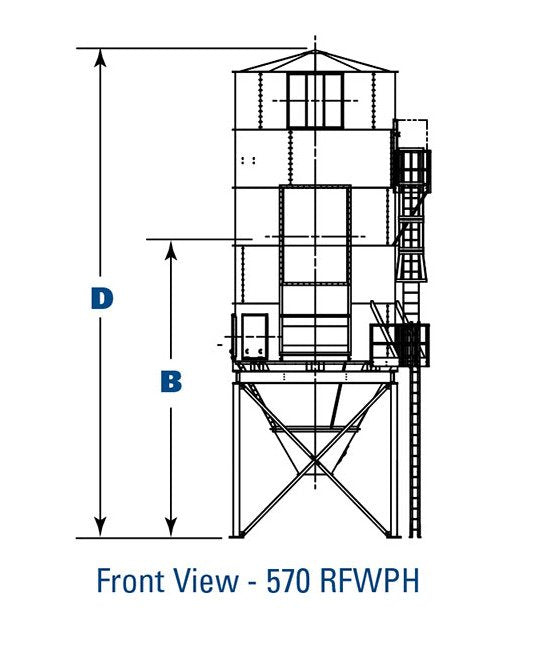

Dimensions Dimension A
188.0 in | 4775.2 mm
Dimensions Dimension B
345.1 in | 8765.5 mm
Dimensions Dimension C
498.5 in | 12661.9 mm
Dimensions Dimension D
553.5 in | 14058.9 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
15.0 hp
Specifications Bag Cloth Area
7415 ft² | 689 m²
Specifications Number Of Bags
570
Specifications Plated Bag Media Area 30 Inch In Uw
7581 ft² | 704 m²
Specifications Plated Bag Media Area 40 Inch In Uw
9918 ft² | 921 m²
Specifications Plated Bag Media Area 60 Inch In Uw
15161 ft² | 1409 m²
Specifications Plated Bag Media Area 80 Inch In Uw
19893 ft² | 1848 m²
Specifications Shipping Weight
40049 lb | 18165.9 kg
Specifications Type
Walk-In Plenum for Sheltered Bag Removal
Specifications Warranty
10 years
