Donaldson Torit RF Baghouse Dust Collector
Donaldson Torit RF Baghouse Dust Collector
SKU:RFB-a64012
Efficiently handles heavy dust loads with energy-efficient cleaning system. Meets government procurement standards.
Regular price
$21,999.00
Regular price
Sale price
$21,999.00
Unit price
per
Initiate Order
Donaldson Torit RF Baghouse Dust Collector
$21,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit RF Baghouse Dust Collector
$21,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

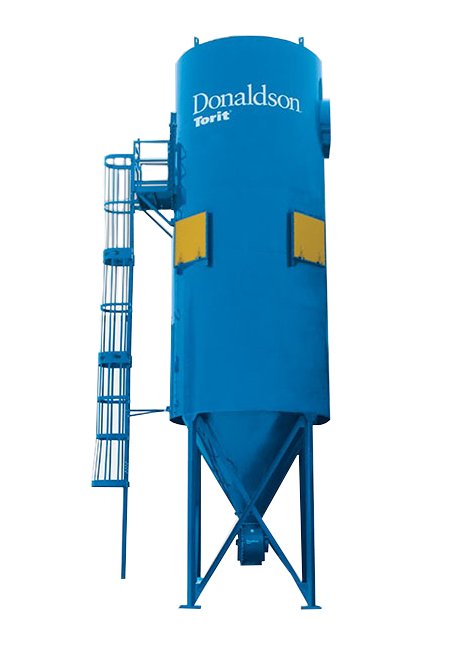

The Donaldson Torit RF Baghouse Dust Collector, known for its rugged design, efficiently handles heavy dust loads with a powerful yet energy-efficient cleaning system. Featuring Dura-Life™ bag filters and Ultra-Web® SB pleated bag filter options, this award-winning collector delivers superior performance while requiring less energy. With innovative features like the Even-Air™ Flow Straightener and clean-air bag access, maintenance is simplified. The RF Baghouse meets stringent government procurement standards and industry certifications, making it a reliable choice for institutional buyers seeking high-performance dust collection solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

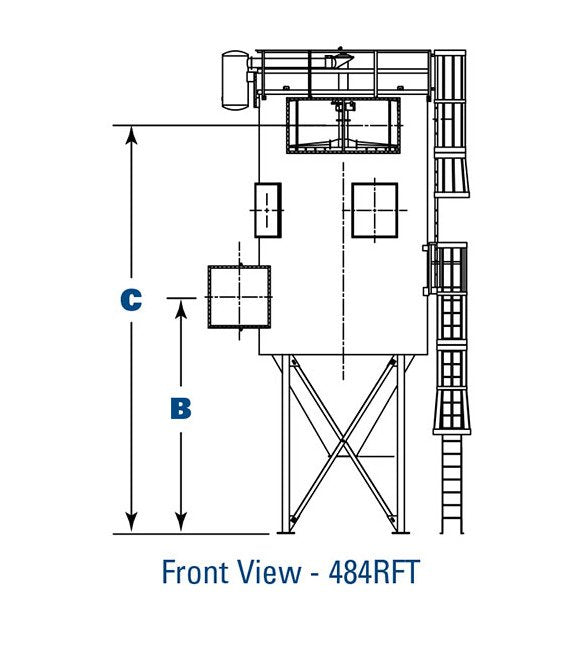

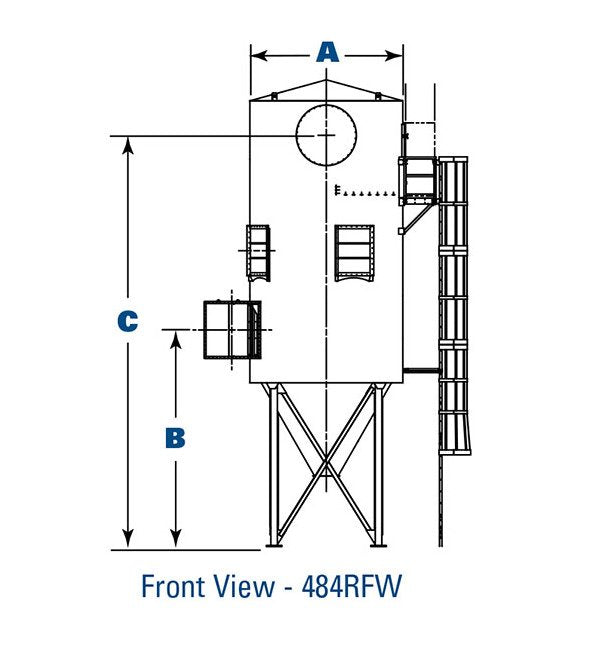

Dimensions Dimension A
139.6 in | 3545.8 mm
Dimensions Dimension B
289.8 in | 7360.9 mm
Dimensions Dimension C
418.8 in | 10637.5 mm

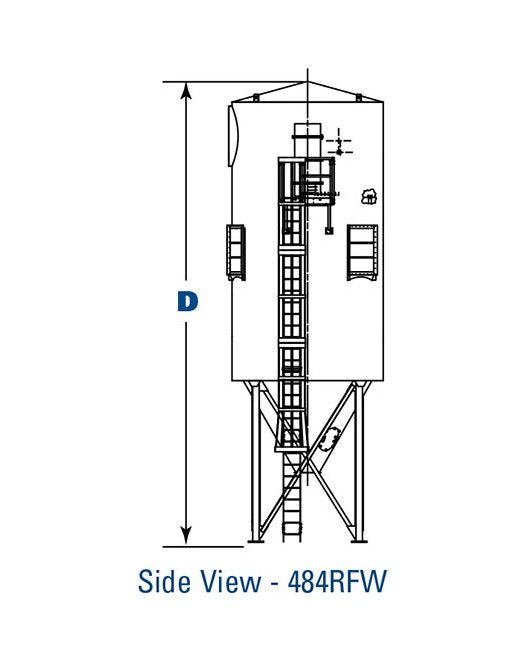

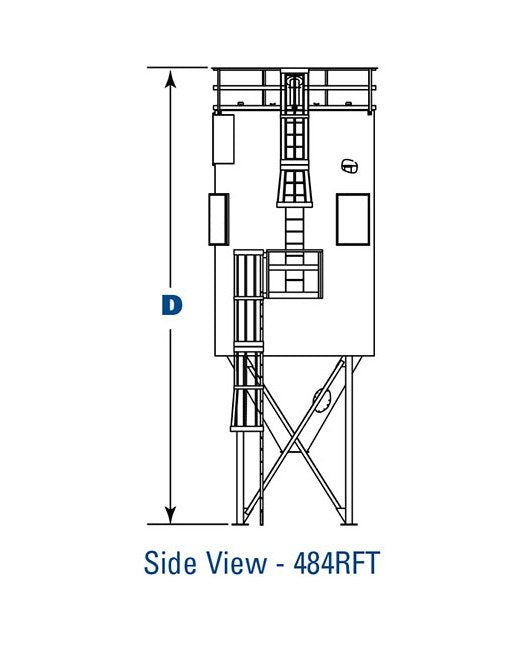

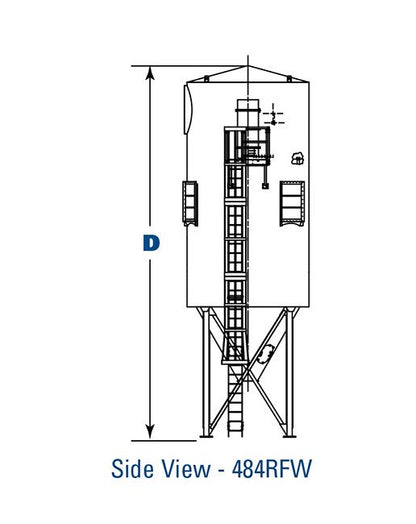

Dimensions Dimension D
521.1 in | 13235.9 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
7.5 hp
Specifications Bag Cloth Area
5557 ft² | 516 m²
Specifications Number Of Bags
356
Specifications Plated Bag Media Area 30 Inch In Uw
4735 ft² | 440 m²
Specifications Plated Bag Media Area 40 Inch In Uw
6194 ft² | 575 m²
Specifications Plated Bag Media Area 60 Inch In Uw
9469 ft² | 880 m²
Specifications Plated Bag Media Area 80 Inch In Uw
12424 ft² | 1154 m²
Specifications Shipping Weight
22900 lb | 10387.3 kg
Specifications Type
High Body Inlet
Specifications Warranty
10 years
