Donaldson Torit TD Dust Collector - 1000 to 1100 ft³/min
Donaldson Torit TD Dust Collector - 1000 to 1100 ft³/min
SKU:TDD-01ea75
Enhance productivity with the Donaldson Torit TD Dust Collector - 1000 to 1100 ft³/min airflow, OSHA compliant.
Regular price
$4,499.99
Regular price
Sale price
$4,499.99
Unit price
per
Initiate Order
Donaldson Torit TD Dust Collector - 1000 to 1100 ft³/min
$4,499.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit TD Dust Collector - 1000 to 1100 ft³/min
$4,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

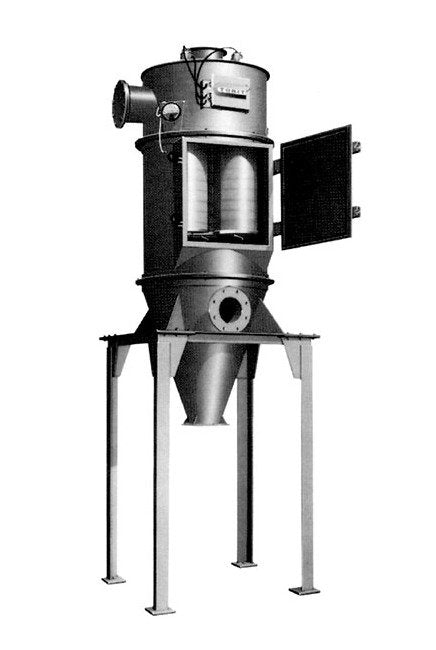

The Donaldson Torit TD Dust Collector offers superior dust collection efficiency with its pulse-jet cleaning system, featuring Ultra-Web® nanofiber cartridge filters. Ideal for continuous-duty operations, this compact dust collector reduces energy costs with lower operating pressure drop. With a nominal airflow ranging from 1000 to 1100 ft³/min, and meeting OSHA standards, this unit ensures a clean work environment for maximum productivity in industrial settings.
Product Specifications
Additional Information
MERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet per minute (36.0 meters per minute) and loading up to four inches (101.6 mm) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency rating per ASHRAE 52.2-2007Optional tangential inlet on round TD housings preseparates dust for high-loading applicationsProvides a cleaner work environment for maximum productivityHelps support OSHA Clean Air Standards

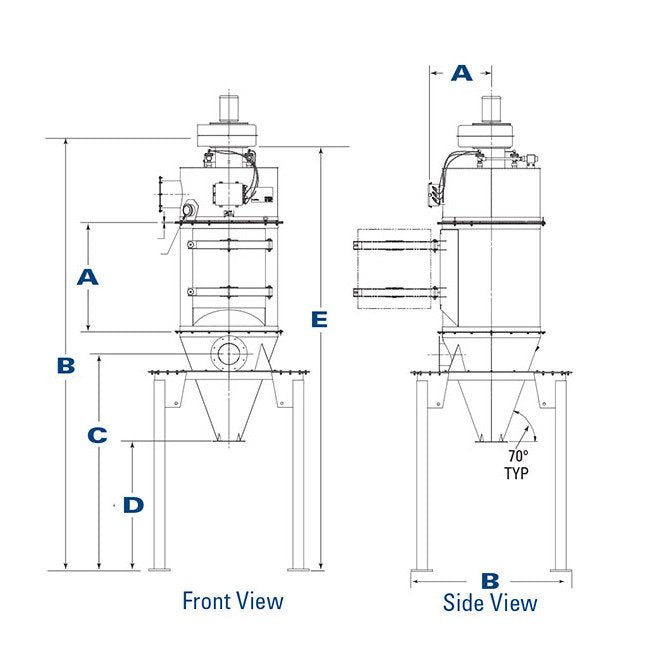

Dimensions Front View Dimension A
40.3 in | 1022.4 mm
Dimensions Front View Dimension B
139.7 in | 3547.9 mm
Dimensions Front View Dimension C
80.4 in | 2041.7 mm
Dimensions Front View Dimension D
48.0 in | 1219.2 mm
Dimensions Front View Dimension E
157.1 in | 3989.3 mm
Dimensions Side View Dimension A
23.4 in | 594.4 mm
Dimensions Side View Dimension B
59.6 in | 1514.3 mm
Equipment Options
Cartridge filter options:Ultra-Web® FR (MERV 15)Fibra-Web® (MERV 14)Ultra-Web® SB (MERV 15)Torit-Tex™ (MERV 16)Ultra-Tek® (MERV 12)1, 2, 3, 5, 7.5, and 10 hp blowersSolid-state timerAdjustable damper (blower)Explosion ventsHopper dischargeSlide gate pack5-Gallon (141.7 Liter) pail pack55-Gallon (15,59.2 Liter) drum coverRotary airlockMagnehelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugePhotohelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugeBolt-on support legsInlet adapters
Specifications Housing Rating
-220 inH2O | -5588 mmH2O
Specifications Industry Standards
Occupational Safety and Health Administration (OSHA)
Specifications Nominal Airflow
1000 to 1100 ft³/min | 1699 to 1869 m³/h
Specifications Number Of Filters
3
Specifications Number Of Valves
3
Specifications Shipping Weight
1350 lb | 612.3 kg
Specifications Ultra Web Filter Area
510 ft² | 47.4 m²
