Donaldson Torit Weld Bench Fume Collector - 3000 CFM Airflow
Donaldson Torit Weld Bench Fume Collector - 3000 CFM Airflow
SKU:WEL-3fbd1b
Enhance welding safety with the Donaldson Torit Weld Bench Fume Collector - 3000 CFM, meeting ACGIH guidelines for optimal performance.
Regular price
$6,899.99
Regular price
Sale price
$6,899.99
Unit price
per
Initiate Order
Donaldson Torit Weld Bench Fume Collector - 3000 CFM Airflow
$6,899.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Weld Bench Fume Collector - 3000 CFM Airflow
$6,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

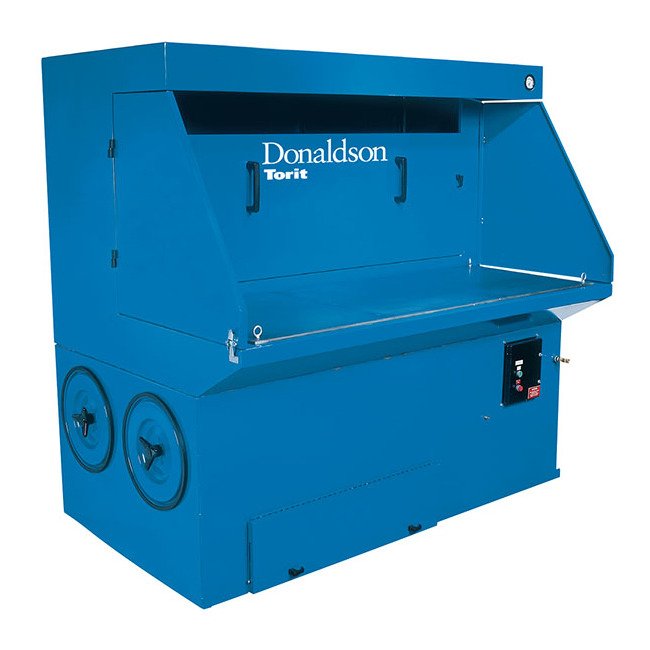

The Donaldson Torit Weld Bench Fume Collector is a cutting-edge solution designed for welding operations. With a powerful 3000 cubic feet per minute airflow, this fume collector meets ACGIH guidelines, ensuring a clean work environment with a minimum capture velocity of 150 feet per minute. Featuring a 5 HP motor, self-cleaning pulse jet system, and ultra-efficient Ultra-Web® FR cartridge technology, this fume collector offers maximum productivity while maintaining operator comfort and efficiency.
Product Specifications
Additional Information
Hinged side-wing panels accommodate longer workpiecesErgonomically designed for operator comfortEasy filter maintenance from clean air side makes filter changeout quick and efficientStandard Ultra-Web® FR cartridges, with nanofiber technology, provide higher filtration efficiency and longer filter lifeMERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet per minute (36.0 meters per minute) and loading up to four inches (101.6 millimeters) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency rating per ASHRAE 52.2-2007Helps support OSHA Clean Air StandardsQuiet operation

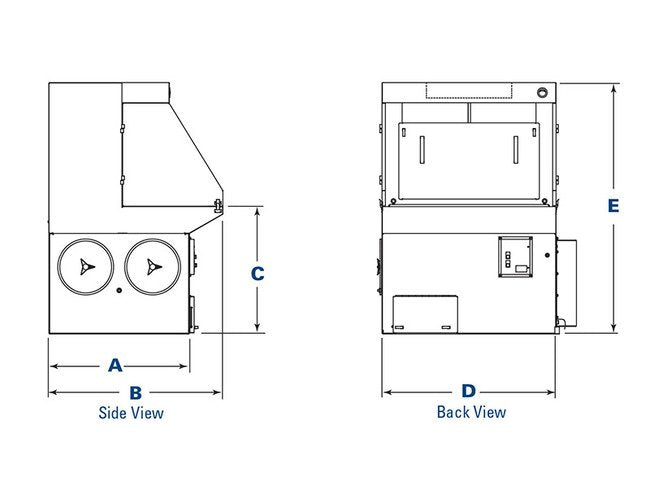

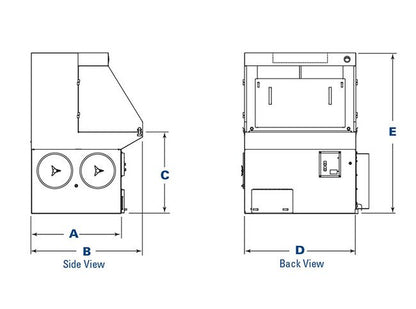

Dimensions Dimension A
42 in | 1066.8 mm
Dimensions Dimension B
52 in | 1320.8 mm
Dimensions Dimension C
38 in | 965.2 mm
Dimensions Dimension D
78.0 in | 1981.2 mm
Dimensions Dimension E
75 in | 1905 mm
Note
Customer must have 90 to 100 psi clean air available.
Options
Prewired controls with after-shift cleaning systemIEC disconnect
Specifications Backdraft
150 fpm | 45.7 m/min
Specifications Dust Capacity
2.8 ft³ | 0.08 m³
Specifications Maximum Load Per Sq Ft
150 lb | 68 kg
Specifications Motor
5 hp
Specifications Nominal Airflow
3000 ft³/min | 5096 m³/h
Specifications Shipping Weight
1575 lb | 714.4 kg
Specifications Sound Level
72 dBA
Specifications Warranty
10 years
Standard Features
7-gauge heavy-duty work surface supports 150 lbs/ft² (732.4 kg/m²)Automatic self-cleaning pulse jet system150 fpm (45.7 m/min) backdraft velocityQuiet, efficient airfoil fanLarge capacity dust drawersUltra-Web® FR cartridgePneumatic tool connectionSprinkler head
