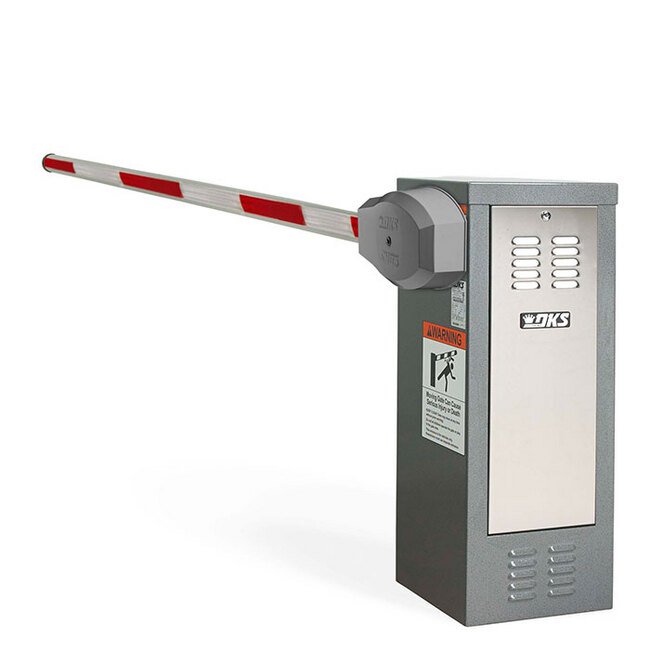

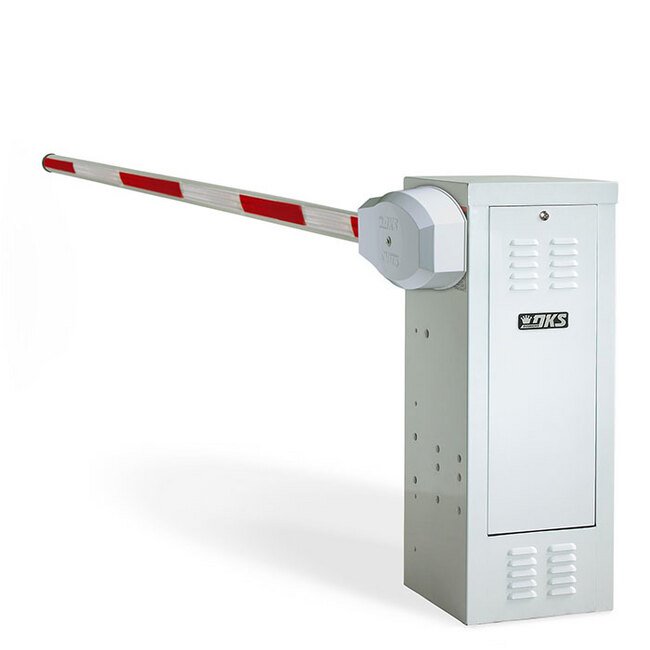

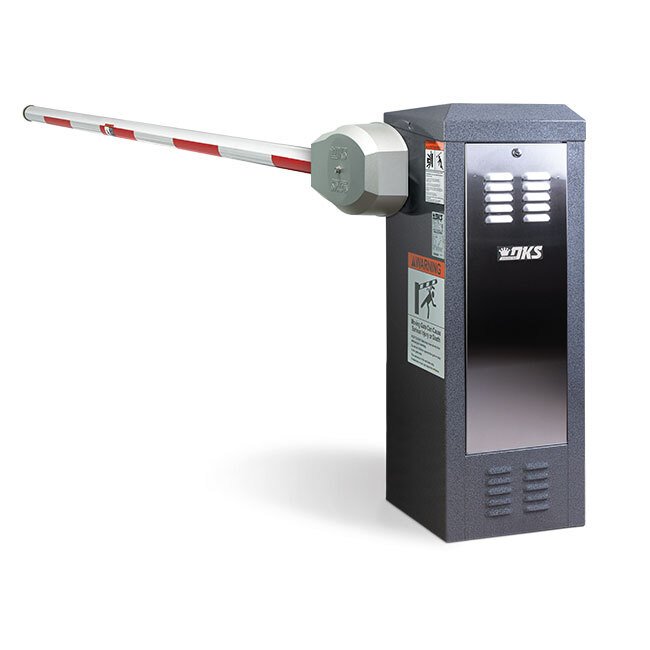

DooKing 1/2 HP Motor Parking Control Barrier Gate Operator
DooKing 1/2 HP Motor Parking Control Barrier Gate Operator
SKU:TRA-c559da
Rapid 2.5-second rotation barrier gate operator for high-traffic control
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
DooKing 1/2 HP Motor Parking Control Barrier Gate Operator
$1,299.99
Quantity: 1
Claim Your Seller Account
DooKing 1/2 HP Motor Parking Control Barrier Gate Operator
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DooKing 1/2 HP Motor Parking Control Barrier Gate Operator is purpose-built for high-usage single-lane vehicular traffic control in commercial, industrial, gated communities, and apartment complexes. With a rapid 2.5-second rotation opening time, this operator offers rugged construction, versatile optional features, and 1/2 horsepower motor power. Designed for both left and right-hand mounting, it features convenient battery-powered Convenience Open functionality for seamless operation during AC power loss. Compliant with industry standards like UL 325 and 991, this operator ensures reliability and safety in managing vehicular access.
Product Specifications
Additional Information Additional Information
For more secure locations our customers choose the 1620 Surface Mount Lane Barrier or Spring Loaded Auto Spikes for greater control without trenching. Lane breach deterrence is best achieved with mechanically-linked Surface Mount Auto Spikes, or the Steel Rotating Lane Barrier provide a more formidable perimeter, complete with required warning signs and signal lights. The optional Backup Battery means no property will be out of commission in the event of a power outage.A host of experience-born features ensure DKS products serve all types of locations, from industrial and commercial properties, gated communities, residence halls and apartment complexes, retail parking, rental car garages, self storage facilities, schools, government agencies and more. The DKS Pedestrian Protection System reduces liability by watching out for people in the path of the arm while the Reversible Edge Vehicle Awareness Sensor prevents damage when vehicles havenât cleared the flow point. Mountable on the left or right, DKS Traffic control products also offer Back Up Detection, Perimeter Access Management to sequence with Swing and Slide Gate Operators, and of course, Gate Tracker Reporting to know about the who, where, when of traffic traveling in and out of the property. With all the features to keep you moving forward, it's DKS.
Advantages Advantages
Single lane (14 ft maximum) vehicular traffic controlHigh traffic commercial and industrial applications1/2 HP continuous-duty motor40:1 gearbox running in a continuous oil bathArm rotates 90 in approximately 2.5 seconds360 gearbox rotation
Applications Applications
Apartment Complex / Gated CommunitiesCommercial / Industrial BuildingsParkingMixed Use BuildingsSelf Storage
Key Features Key Features
Designed for single lane (14 ft maximum) vehicular control in high traffic applicationsElectronic Limit SettingsOperators are designed so that they can be mounted on either the left or right hand side of the roadwayLighted and Breakaway Arm Kits available. Low headroom Folding Arm Kits also available Pedestrian Protection System availableMagnetic limit control.Ports for plug-in loop detectors.Automatic sequencing inputs for use with slide and swing gate operators.Up input memory buffer.Down memory option.Multiple up commands.Two convenience outlets.360 gearbox rotation.Gate tracker reporting output.Programming switches.Built-in power On/Off switch.
Options Options
14 - Foot Octagonal Aluminum Arm14 - Foot Octagonal Aluminum Arm + Rev Edge14 - Foot Octagonal Aluminum Arm + Rev Edge + Red/Green LEDs14 - Foot Round Aluminum Arm14 - Foot Wood ArmAluminum Octagonal Lighted Barrier Arm: Octagonal Arm LEDs are RED when the arm is in the down position and turns to GREEN when the arm rotates to the full up positionBreakaway Hardware Kit: Allows arm to swing out of the way in the event that a vehicle fails to stop at a lowered Arm. The system is easily reset by simply snapping the Arm back into place. For Aluminum Arms only2-Piece Arm 14 Ft (4.27 m): The two-piece Aluminum Arm Ships in a 7 ft (2.13 m) long box to reduce shipping cost. Two-piece design does not accept light kitConvenience Open Package (Optional factory installed DC powered drive system provides an automatic method to open the gate when primary (AC) power fails. available when equipped with Convenience Open option.)Heater and Fan KitsDKS Pedestrian Protection SystemPlug-in loop detectors.DC powered convenience open.Surge suppressors.Manual Crank kit.
Specifications Alternating Current Ac Voltage
115 V | 230 V | 460 V
Specifications Aluminum Arms Length
14 ft
Specifications Angular Speed
2.5 s | 90 s
Specifications Auto Sequence
Yes
Specifications Barrier Arm Low Ceiling
Folding Arm Kit Available
Specifications Barrier Arm Type
Octagonal Aluminum (14 Feet (ft)) | Plastic (12 Feet (ft)) | Round Aluminum (14 Feet (ft)) | Wood (14 Feet (ft))
Specifications Class Of Operation
Class II | Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
yes
Specifications Gate Tracker Data Output
Yes
Specifications Gear Box Rotation
360 º
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Magnetic
Specifications Manual Release
Fail Secure
Specifications Maximum Arm Length
14 ft
Specifications Motor Power
1/2 hp
Specifications Mounting Type
Left or Right Hand
Specifications Number Of Phase
1 | 3
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Usage
High Usage in Commercial | Limited Usage in Industrial
Specifications Wood Arms Length
14 ft
Technical Specifications Technical Specifications
1/2 HP continuous-duty motor.115 VAC, 60 Hz, 5.4A, 230 VAC, 60 Hz, 2.7A1, 460 VAC, 60 Hz, 1.4A1 (230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)40:1 gearbox running in a continuous oil bath.Arm rotates 90 in approximately 2.5 seconds.Class II, III and IV applications.Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions (operator only): 15.25 "W x 39.5 "H x 14.75 "D.Magnetic Electronic Limit ControlsAuto-Close timer 1-23 secondsP.A.M.S. (Perimeter Access Management System) sequence with a Slide or Swing Gate OperatorUp Input Memory BufferDown Memory OptionMultiple Up CommandsPort for plug-in Open (Up) DetectorPort for plug-in Reverse (Down) DetectorProgramming SwitchesBuilt-in Power On/Off SwitchDKS Pedestrian Protection System: The system reverses Barrier Arm if person is detected, and lowers Barrier Arm if unauthorized vehicle enters. Requires DKS 9411 Loop Detector and a photo-beam.
