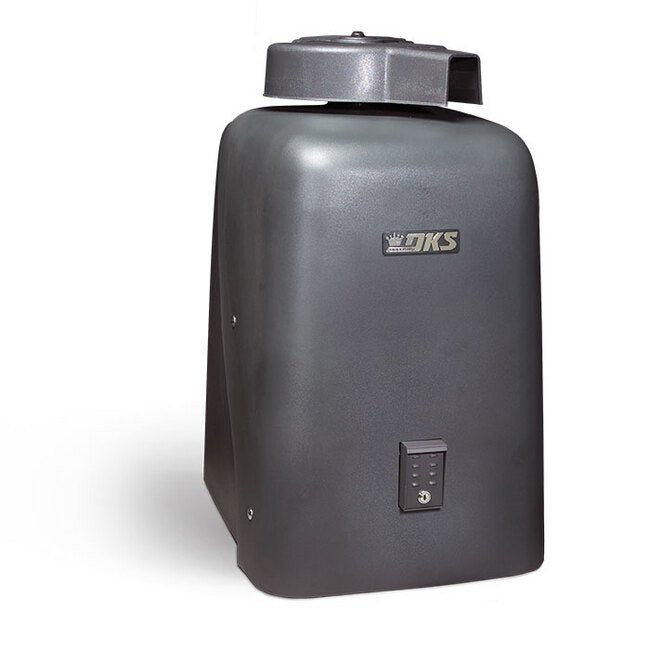

DooKing Swing Gate Operator 6500 Series
DooKing Swing Gate Operator 6500 Series
SKU:SWI-034e2d
Experience seamless gate operation with the DooKing Swing Gate Operator - durable, quiet, compliant with industry standards.
Regular price
$1,899.00
Regular price
Sale price
$1,899.00
Unit price
per
Initiate Order
DooKing Swing Gate Operator 6500 Series
$1,899.00
Quantity: 1
Claim Your Seller Account
DooKing Swing Gate Operator 6500 Series
$1,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

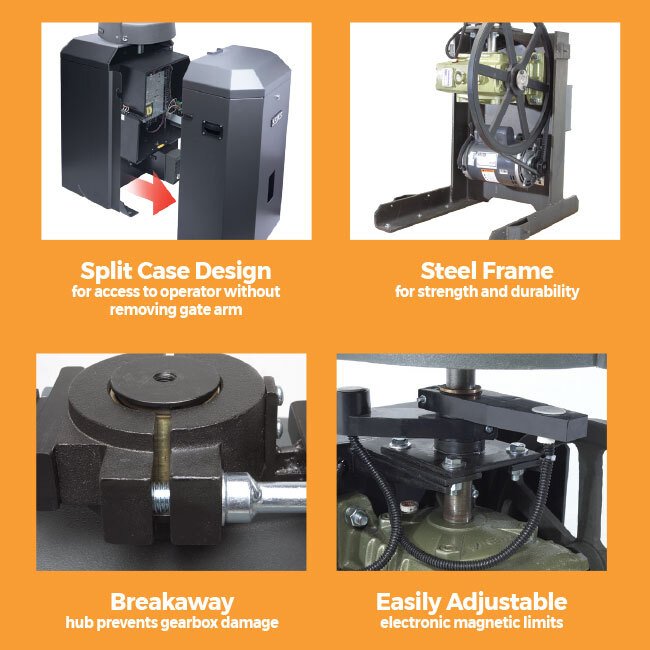

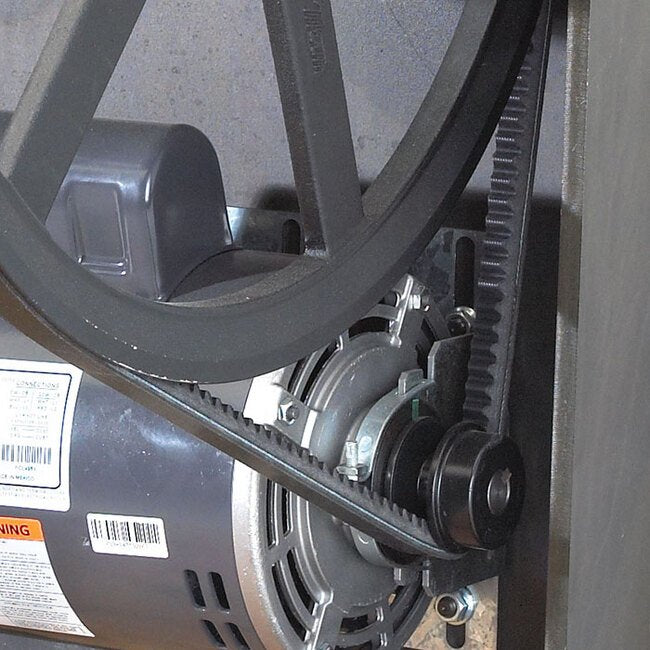

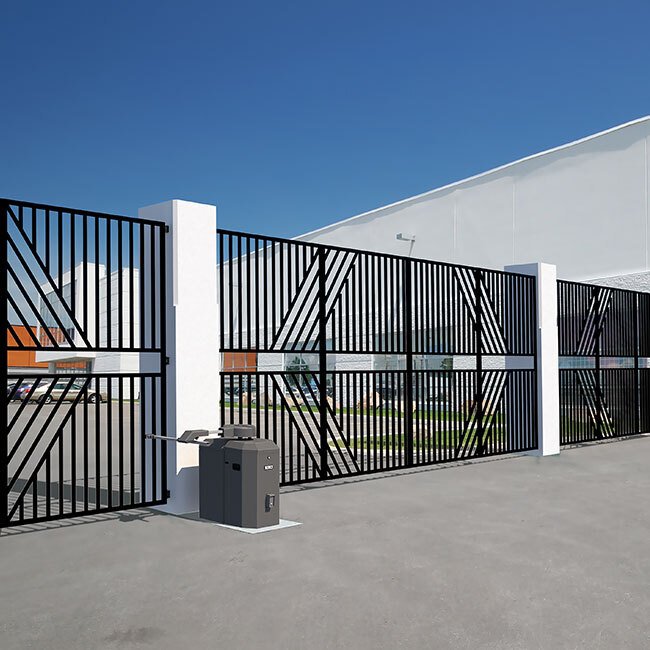

The DooKing Swing Gate Operator 6500 Series is a reliable solution for operating Vehicular Swing Gates in residential, commercial, and industrial settings. With a 90-degree swing in just 12-14 seconds, this operator offers easy access to electronics and mechanical areas without gate arm removal. Featuring magnetic limit switches, solid steel frame, quiet belt-driven gearbox, and compliance with UL 325 and 991, ETL Listed, this operator is designed for durability, convenience, and safety.
Product Specifications
Additional Information Additional Information
The solar power version is ideal in applications where AC power is unavailable, with the option to add your own solar system for power, or you can use the DKS solar kit.Reliable access control should never come with risk - DKS Slide Gate Operators are designed to maintain the security of your vehicle entry points without posing a threat to pedestrians. Long considered to be the leading protective Vehicular Gate Operators on the market, DKS products exceed the UL 325 Safety Standard and offer both electronic and mechanical systems to detect people or objects in the opening or closing path of the gate. In addition, our patented "Fail-Safe" release design is preferred by fire authorities throughout the country. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMixed Use BuildingsResidentialSelf Storage
Duty Cycle Type Duty Cycle Type
Continuous
Key Features Key Features
Adjustable, no maintenance magnetic limits.Overlap feature for bi-parting swing gate operation.Simple connection for secondary operator in bi-parting applications.Selectable shadow/reverse loop function.Magnetic lock power provided.Ports for plug-in loop detectors.Three 115 VAC convenience outlets.Gate tracker reporting output.Programming switches.Built-in reset switch.Built-in power On/Off switch.Secondary unit includes 50 Ft cable
Options Options
Primary / secondary connection cable (secondary operator is shipped with 50-feet of cable).Plug-in loop detectors.Heater kit for cold environments.Surge suppressors.
Specifications 90 Degree Opening Time
12 to 14 s
Specifications Alternating Current Ac Voltage
115 V
Specifications Class Of Operation
Class I | Class II | Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Convenience Outlets Alternating Current Ac Voltag
115 V
Specifications Frame Material
Solid Steel Frame
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Magnetic
Specifications Manual Release
Keyed
Specifications Maximum Gate Length
25 ft
Specifications Maximum Gate Weight
2000 lb
Specifications Motor Power
1 hp
Specifications Mounting Type
Pad
Specifications Note
Convenience outlets for accessory transformers
Specifications Number Of Convenience Outlets
3
Specifications Number Of Phase
1 | 3
Specifications Operating Temperature
-12 to 62 ºC | 10 to 115 ºF
Specifications Overlap Feature For Bi Parting Operation
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
Mechanic
Specifications Solar Compatible
No
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Type
Swing
Specifications Usage
Commercial | Industrial
Technical Specifications Technical Specifications

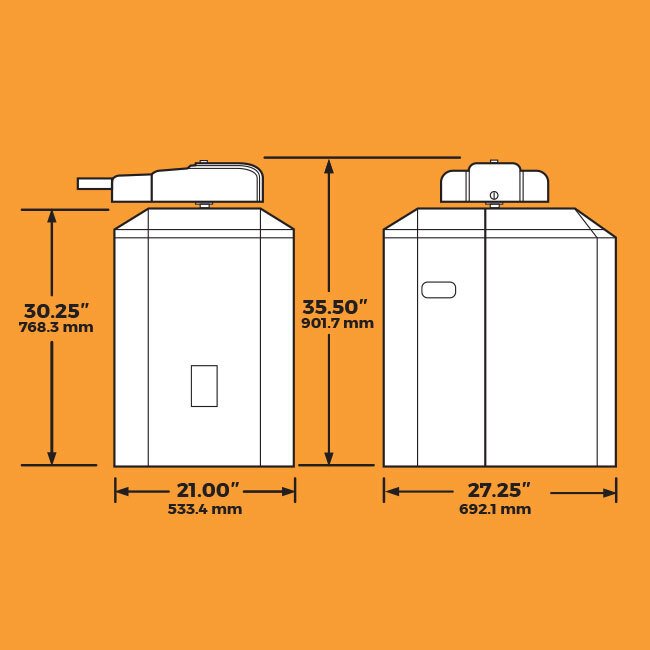

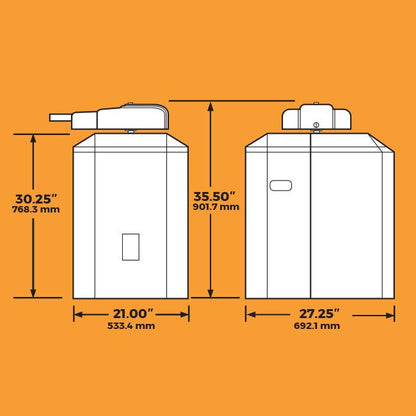

GATE TRACKERTM Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control systemMaximum gate width 25-ft.Maximum gate weight 2000 pounds. (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)Unique breakaway hub design prevents gear box damage if the gate is struck.115 VAC. High Voltage Kit allows the operator to be powered from 208, 230, 460 or 575 source voltage. In dual gate applications, only one (1) kit is required (secondary operator DOES NOT require a high voltage kit).Class I, II, III and IV applications.Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions: 20.5 "W x 38.5 "H x 30 "D (52cm W x 97.8cm H x 76.2cm D)
