Enhance gate security with the DoorKing 1 HP Swing Gate Operator, featuring advanced safety and seamless integration for commercial, industrial, and residential use.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
DoorKing 1 HP Motor Vehicular Swing Gate Operator
$1,499.99
Quantity: 1
Claim Your Seller Account
DoorKing 1 HP Motor Vehicular Swing Gate Operator
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

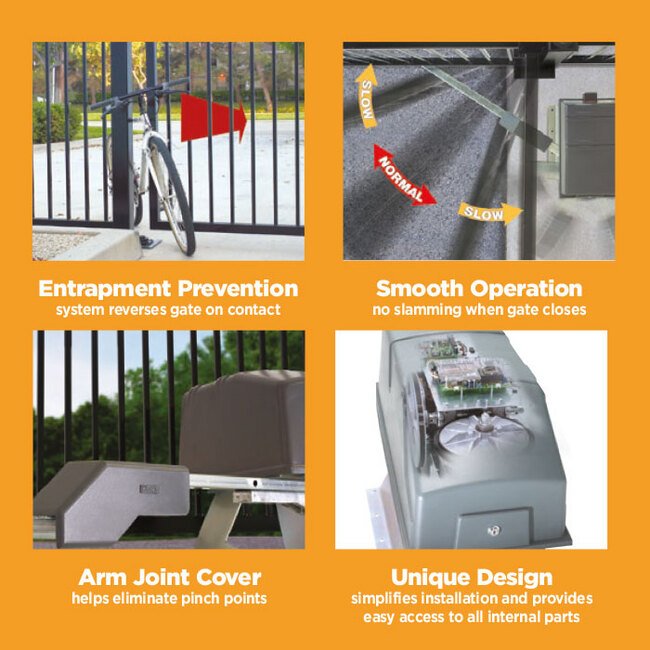

The DoorKing 1 HP Motor Vehicular Swing Gate Operator features a unique design that conceals the gate arm, enhancing aesthetics. It is built with G90 galvanized steel for rust prevention and includes an electronic and mechanical reverse system for obstruction detection. This swing gate operator offers advanced safety features, automatic electronic limits, and convenient plug-in loop detector ports for seamless integration. Ideal for commercial, industrial, and residential applications, it complies with UL 325 and 991, ETL Listed, and offers self-adjusting magnetic limits, ensuring smooth and quiet operation with long-lasting durability.
Product Specifications
Additional Information Additional Information
The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt-driven gear box make this operator one of the quietest on the market today.The DKS DC 6524 Swing Gate Operator is perfect where backup power is critical, as it will keep running even when AC power has been lost. The solar power version is ideal in applications where AC power is unavailable, allowing you to add your own solar system for power, or you can choose the DKS solar kit. This Swing Gate Operator offers versatile and safe operation in a small, compact design, and is ideally suited for residential or commercial applications.With protection in mind, these Operators contain an electronic and mechanical inherent reverse system for two methods of obstruction detection. The automatic electronic limits, along with the microprocessor-based electronic control board provide advanced features not typically found in Operators in this class. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Advantages Advantages
Aesthetically Pleasing Original Quiet Design1 horsepower for gates up to 22 ft long weighing up to 800 lb.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMixed Use BuildingsResidentialSelf Storage
Duty Cycle Type Duty Cycle Type
Continuous
Key Features Key Features
Self-adjusting, no maintenance magnetic limits.Overlap feature for dual swing gate operation.Designed with a built-in primary and secondary entrapment prevention system.Ports for plug-in loop detectors.Two convenience outlets.Fail-safe release.Tamper detect circuit.Gate tracker reporting output.Programming switches.Built-in reset switch.Built-in power On/Off switch.
Options Options
Primary / secondary connection cable (secondary operator is shipped with 50-feet of cable).Post or pad mount - specify which.Plug-in loop detectors.Heater kit for cold environments.Surge suppressors.
Specifications 90 Degree Opening Time
16 to 18 s
Specifications Alternating Current Ac Voltage
115 V | 208 V | 230 V | 460 V
Specifications Class Of Operation
Class I | Class II | Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Frame Material
G90 Galvanized Steel
Specifications Gate Tracker Data Output
Yes
Specifications Installation Type
Directly on a Concrete Pad | Post Mounted
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Self-adjusting, No Maintenance Magnetic Limits
Specifications Manual Release
Fail Safe | Keyed
Specifications Maximum Gate Length
22 ft
Specifications Maximum Gate Weight
800 lb
Specifications Motor Power
1 hp

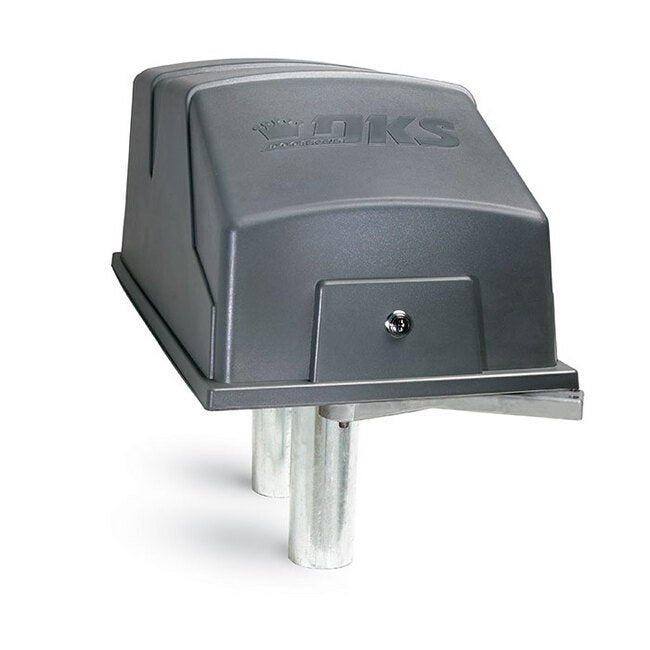

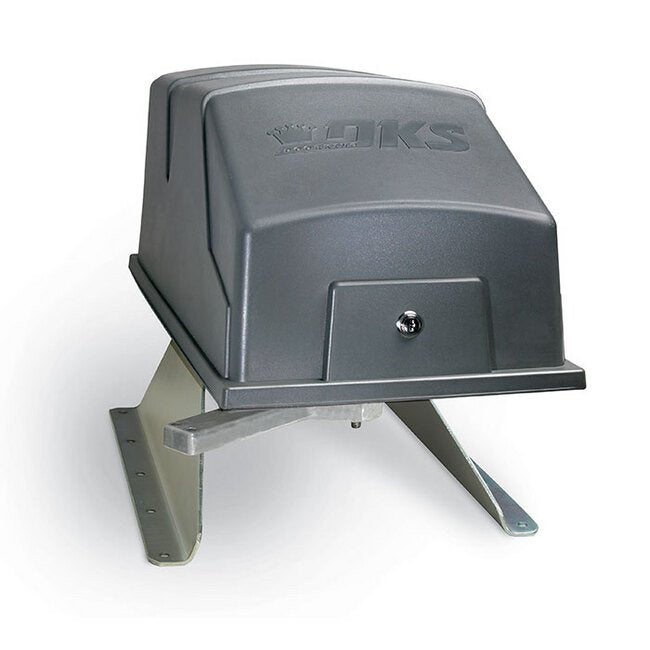

Specifications Mounting Type
Pad | Post
Specifications Number Of Convenience Outlets
2
Specifications Number Of Phase
1 | 3
Specifications Operating Temperature
-12 to 62 ºC | 10 to 115 ºF
Specifications Overlap Feature For Bi Parting Operation
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
Mechanic
Specifications Solar Compatible
No
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Usage
Commercial | Industrial | Residential
Technical Specifications Technical Specifications

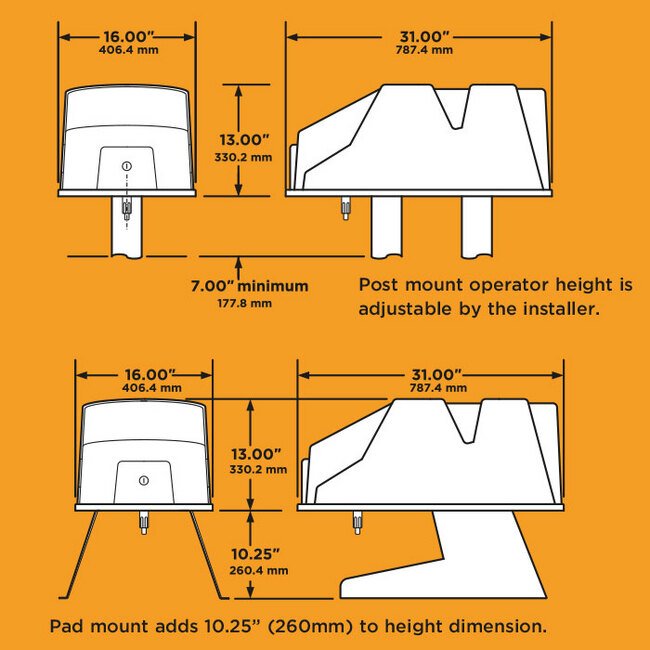

Model 6300 with 1 HP MotorGATE TRACKERTM Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control systemMaximum gate width 22-feet.Maximum gate weight 800 pounds. (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)Swings gate 90 degrees in approximately 15-seconds.1 HP continuous-duty motor.115 VAC, 60 Hz, 9.7A, 208 VAC, 60 Hz, 5.0A, 230 VAC, 60 Hz, 4.9A, 460 VAC, 60 Hz, 2.5A. (These operators use a step-down transformer to achieve 115 VAC operating voltage)Class I, II, III and IV applications.Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions (operator only): 16.25 "W x 13.5 "H x 32 "D (Height of operator only. Actual height above ground is determined by which mounting method is used)
