DoorKing 1 HP Vehicular Swing Gate Operator
DoorKing 1 HP Vehicular Swing Gate Operator
SKU:SWI-e2f9aa
Reliable, quiet, and compliant 1 HP swing gate operator with easy access design and adjustable magnetic limits.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
DoorKing 1 HP Vehicular Swing Gate Operator
$1,799.99
Quantity: 1
Claim Your Seller Account
DoorKing 1 HP Vehicular Swing Gate Operator
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

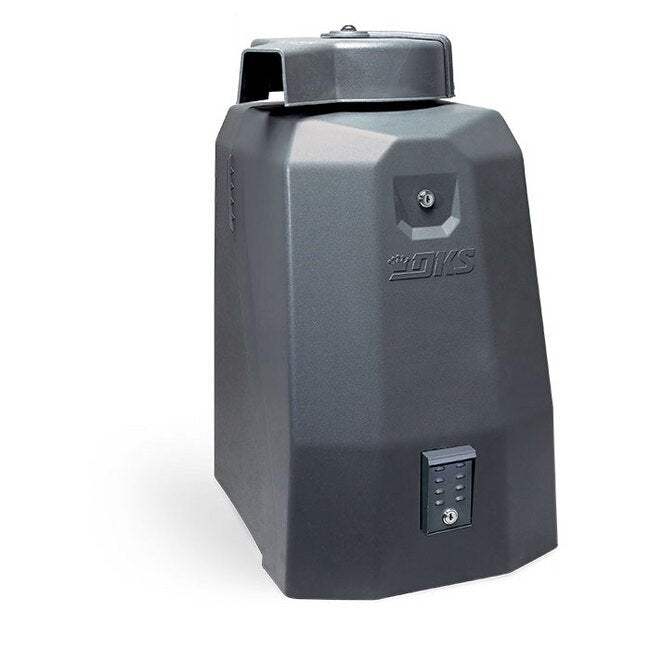

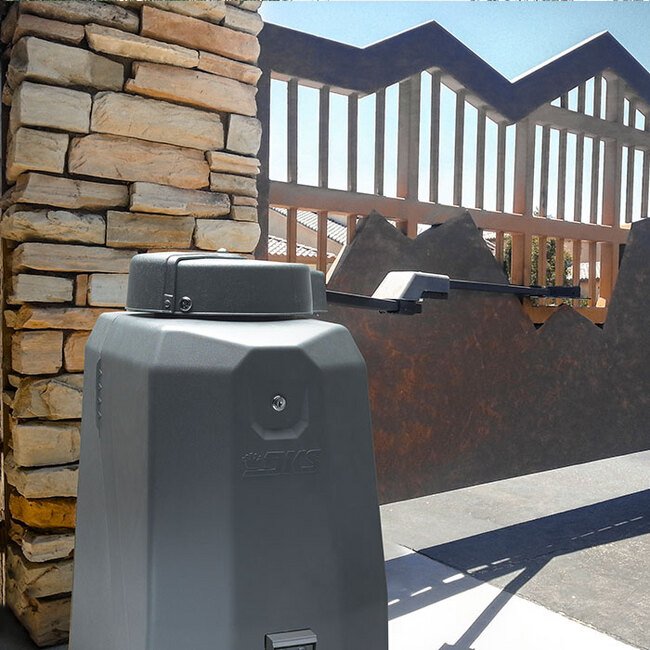

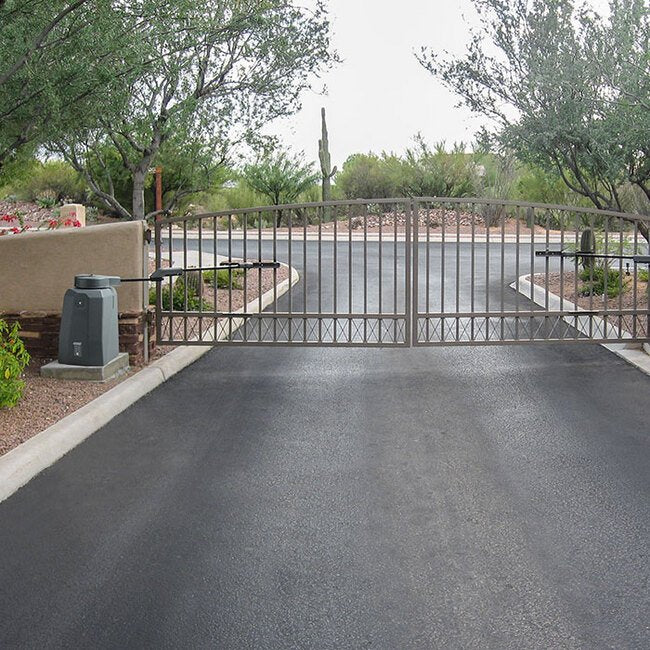

The DoorKing 1 HP Vehicular Swing Gate Operator is engineered for reliable operation in residential, commercial, and industrial settings. With a sturdy solid steel frame and a belt-driven gearbox, this operator ensures quiet and efficient performance. Featuring easy access to electronics and mechanical areas, adjustable magnetic limits, and a unique breakaway hub design, this operator meets UL 325 and 991 compliance standards as well as ETL Listing. Perfect for single or bi-parting gates up to 22 ft long and 800 lb, this operator offers convenience with three 115VAC outlets and gate tracker reporting output.
Product Specifications
Additional Information Additional Information
The solar power version is ideal in applications where AC power is unavailable, with the option to add your own solar system for power, or you can use the DKS solar kit.Reliable access control should never come with risk - DKS Slide Gate Operators are designed to maintain the security of your vehicle entry points without posing a threat to pedestrians. Long considered to be the leading protective Vehicular Gate Operators on the market, DKS products exceed the UL 325 Safety Standard and offer both electronic and mechanical systems to detect people or objects in the opening or closing path of the gate. In addition, our patented "Fail-Safe" release design is preferred by fire authorities throughout the country. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMixed Use BuildingsResidentialSelf Storage
Duty Cycle Type Duty Cycle Type
Continuous
Key Features Key Features
Adjustable, no maintenance magnetic limits.Overlap feature for bi-parting swing gate operation.Simple connection for secondary operator in bi-parting applications.Selectable shadow/reverse loop function.Magnetic lock power provided.Ports for plug-in loop detectors.Three 115 VAC convenience outlets.Gate tracker reporting output.Programming switches.Built-in reset switch.Built-in power On/Off switch.
Options Options
Primary / secondary connection cable (secondary operator is shipped with 50-feet of cable).Plug-in loop detectors.Heater kit for cold environments.Surge suppressors.Uphill arm pivot assembly and torsion rod assembly
Specifications 90 Degree Opening Time
12 to 14 s
Specifications Alternating Current Ac Voltage
115 V | 208 V | 230 V | 460 V
Specifications Class Of Operation
Class I | Class II | Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Convenience Outlets Alternating Current Ac Voltag
115 V
Specifications Frame Material
Solid Steel Frame
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Magnetic
Specifications Manual Release
Keyed
Specifications Maximum Gate Length
22 ft
Specifications Maximum Gate Weight
800 lb
Specifications Motor Power
1 hp
Specifications Mounting Type
Pad
Specifications Number Of Convenience Outlets
3
Specifications Number Of Phase
1 | 3
Specifications Operating Temperature
-12 to 62 ºC | 10 to 115 ºF
Specifications Overlap Feature For Bi Parting Operation
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
Mechanic
Specifications Solar Compatible
No
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Type
Swing
Specifications Usage
Commercial | Industrial | Residential
Technical Specifications Technical Specifications

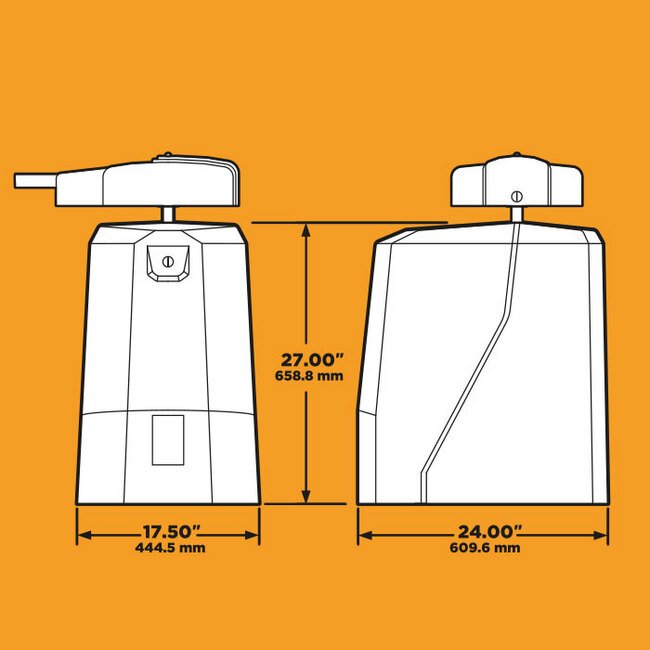

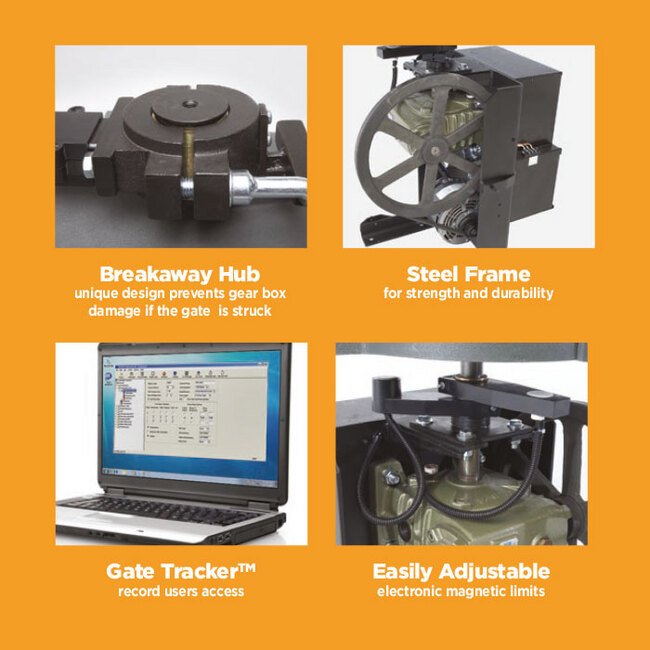

GATE TRACKERTM Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control systemMaximum gate width 18-ft. (1/2 HP) or 22-ft. (1 HP).Maximum gate weight 700 pounds (1/2 HP) or 800 pounds (1 HP). (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)Swings gate 90 degrees in approximately 12-14 seconds.Unique breakaway hub design prevents gear box damage if the gate is struck.1/2 or 1 HP continuous-duty motor.115 VAC, 60 Hz, 9.7A, 208 VAC, 60 Hz, 5.0A, 230 VAC, 60 Hz, 4.9A, 460 VAC, 60 Hz, 2.5A(These operators use a step-down transformer to achieve 115 VAC operating voltage.)Class I, II, III and IV applications.Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions: 18.38 "W x 31.63 "H x 23.25 "D
