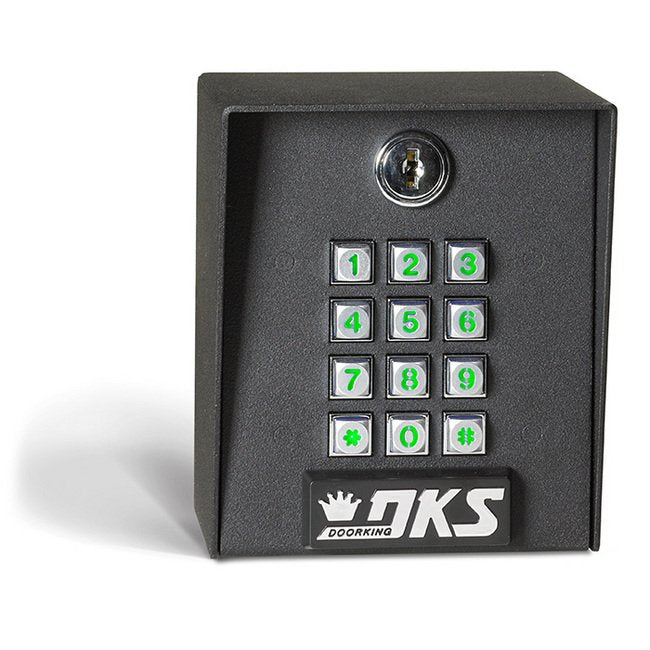

DoorKing 1515 Stand Alone Digital Keypad
DoorKing 1515 Stand Alone Digital Keypad
SKU:ACC-bc7316
Enhance access control with the versatile DoorKing 1515 Digital Keypad. Program up to 400 codes and enjoy secure, convenient entry management.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DoorKing 1515 Stand Alone Digital Keypad
$189.99
Quantity: 1
Claim Your Seller Account
DoorKing 1515 Stand Alone Digital Keypad
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DoorKing 1515 Stand Alone Digital Keypad from the 1500 Series ensures secure access control for doors or gates with up to 400 programmable codes, single Form C relay output, and versatile mounting options. This weather-resistant keypad operates on 12-24V AC/DC and features LED lighting, EEPROM Memory, and code management via the DKS Manager App. Ideal for residential, commercial, or institutional settings, this keypad offers a robust solution for controlled entry and comes with a 2-year limited factory warranty.
Product Specifications
Additional Information Additional Information
The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPLUS® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Applications Applications
Self-storageApartment Complex / Gated CommunitiesResidentialParkingApartment / College Residents HallsMixed Use BuildingsCommercial / Industrial & Maximum Security
Key Features Key Features
Ideal for controlling doors or gates.Add or delete individual codes from an Android Smartphone using the DKS App."Hold" codes to latch open a door or gate.EEPROM Memory.LED Lighting.Lighted keypad.
Specifications Alternating Current Ac Power Supply
12 V | 24 V
Specifications Cabinet Material
Rigged Steel
Specifications Direct Current Dc Power Supply
12 V | 24 V
Specifications Faceplate Material
Stainless Steel
Specifications Hold Open Capability
No
Specifications Limited Factory Warranty
2 y
Specifications Maximum Access Points
1
Specifications Maximum Codes
400 (4-Digit) | 400 (5-Digit)
Specifications Mounting Type
Compact Surface | Flush Mount | Surface Mount
Specifications Operating Temperature
-23 to 60 ºC | -10 to 140 ºF
Specifications Output Type
One Form C Dry Contact Relay
Specifications Solar Compatible
Yes
Specifications Time Zones
No
Technical Specifications Technical Specifications

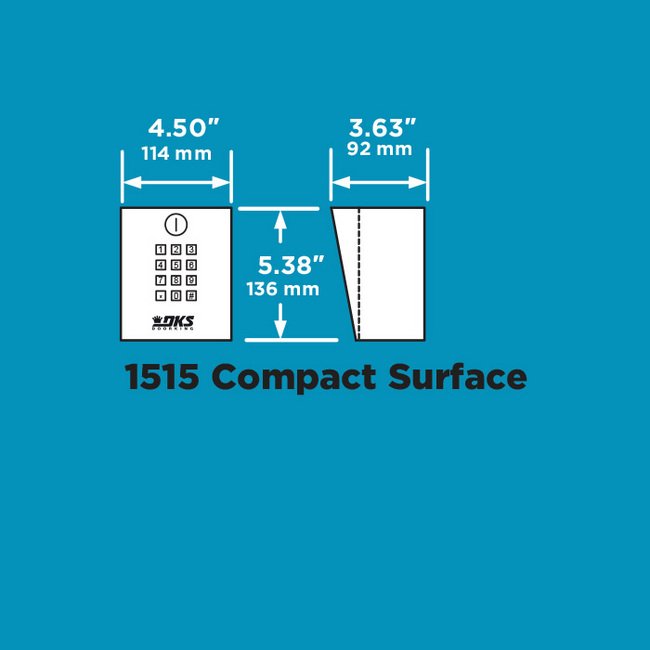

Stores up to 400 codes, 4 or 5 digit.Program from the keypad or from an Android Smartphone with the DKS Manager App.Wrong code lockout settable from 3-9 tries and 1-9 minutes.Low power mode for solar applications.Single Form C dry contact relay.Operates on 12 to 24 volt AC or DC power.Surface Mount Compact - P/N 1515-080Surface Mount Stainless Steel Faceplate - P/N 1515-081Flush Mount Stainless Steel Faceplate - P/N 1515-082Surface Mount with Intercom Substation - P/N 1504-081Flush Mount with Intercom Substation - P/N 1504-091
