DoorKing 1625 Surface Mount Wedge Barrier System
DoorKing 1625 Surface Mount Wedge Barrier System
SKU:TRA-a981f2
Enhance security with the DoorKing 1625 Wedge Barrier - certified and durable.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
DoorKing 1625 Surface Mount Wedge Barrier System
$5,899.99
Quantity: 1
Claim Your Seller Account
DoorKing 1625 Surface Mount Wedge Barrier System
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

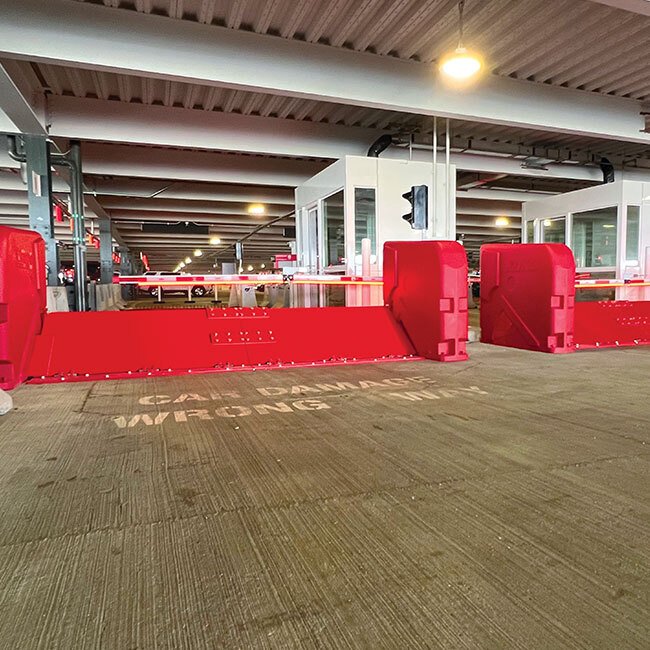

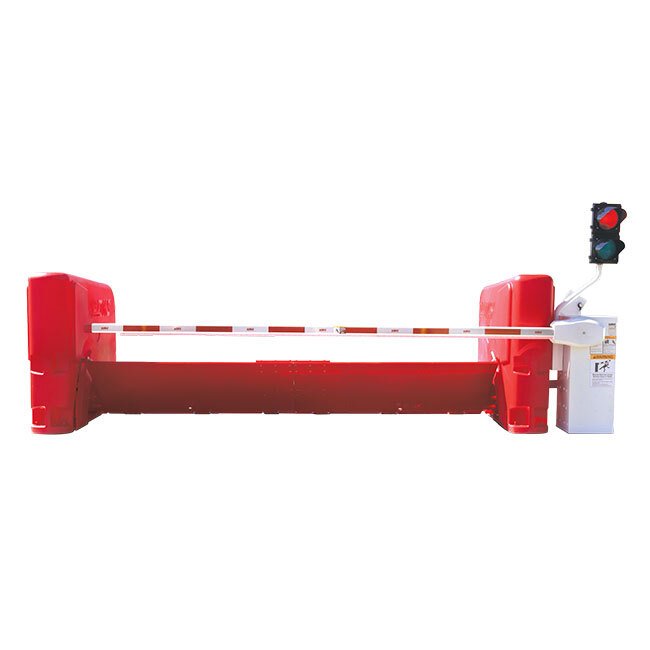

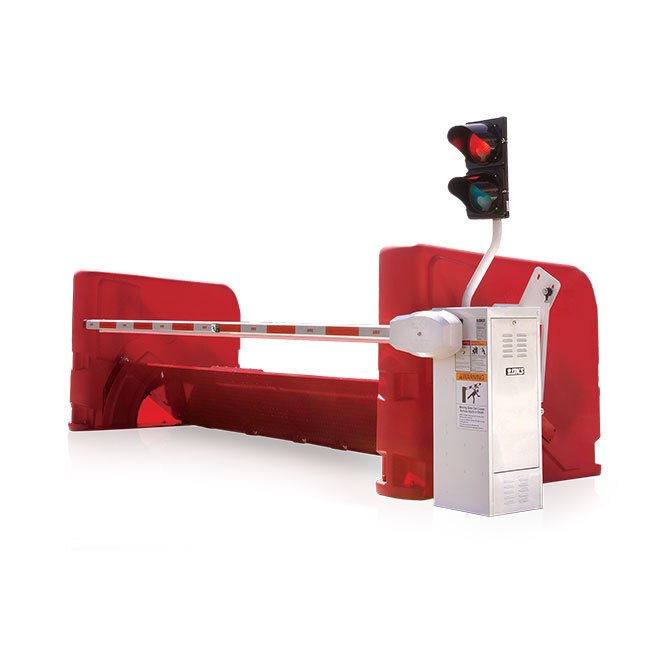

The DoorKing 1625 Surface Mount Wedge Barrier System provides robust vehicle traffic control without the need for costly bollards or crash beams. Certified to ASTM F2656-23 standards, this aluminum barrier features an LED lighted arm for high visibility, quick 3.5-second operation, and surface mounting for easy concrete installation. Ideal for applications in apartment communities, gated condominiums, parking lots, and toll booths, this barrier is designed to withstand direct impact from vehicles weighing up to 5,070 lbs at 30 mph. Enhance security and safety with the DoorKing 1625 Wedge Barrier.
Product Specifications
Applications Applications
Apartment ComplexesCollege Residents HallsMixed Use BuildingsCommercialIndustrialParkingSelf StorageMaximum Security
Caution Caution
Not to be used in areas subject to freezing weather with the potential for snow and ice accumulation.
Certification Certification

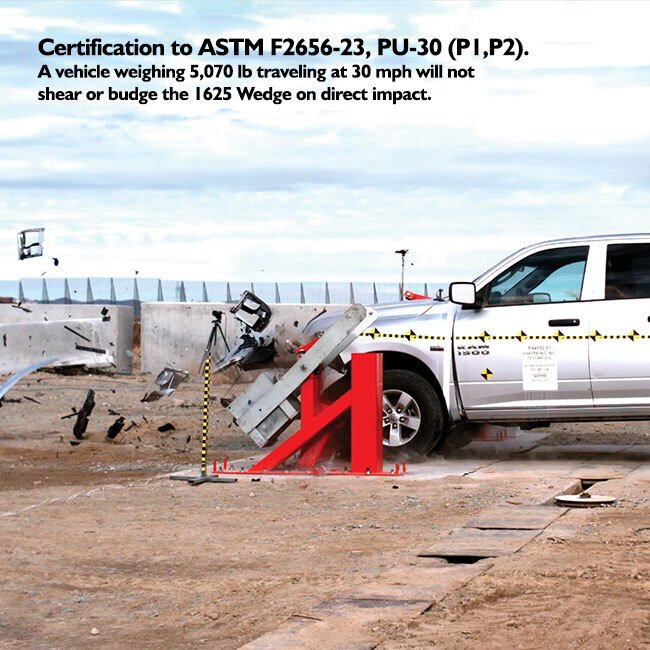

The 1625 Wedge Barrier has been crash tested per ASTM F2656 - Standard Test Method for Vehicle Crash Testing of Perimeter Barriers and is rated as follows:12-Ft. Barrier: PU-30--P114 Ft. Barrier: PU-30-P216 Ft. Barrier: PU-30-P218 Ft. Barrier: PU-30-P2
Key Features Key Features
Surface mount for quick, easy installationRed (down) / Green (up) LED lighted Barrier Arm for high visibilityMiscellaneous1602-590 Operator is sold separately.1625 wedge barrier includes linkage hardware and counterbalance weights.This Wedge Barrier is not recommended for use in areas subject to freezing weather.
Options Options
Red/Green Traffic Signal
Specifications Advantages
The Wedge Barrier is ideal in applications where a higher degree of vehicle traffic control is desired, but without the expense of bollards or crash beams - making it ideal for apartment communities, gated condominiums, car rental agencies, parking lots and toll booths. The Wedge Barrier must be used with the 1602-590 operator (sold separately).
Specifications Aluminum Arms Length
18 ft
Specifications Anchor Post
8" x 8" x 1/4" Steel(203.2 mm x 203.2 mm x 6.35 mm)54" High + cap (1.37 m)
Specifications Angular Speed
3.5 s
Specifications Available Lane Width

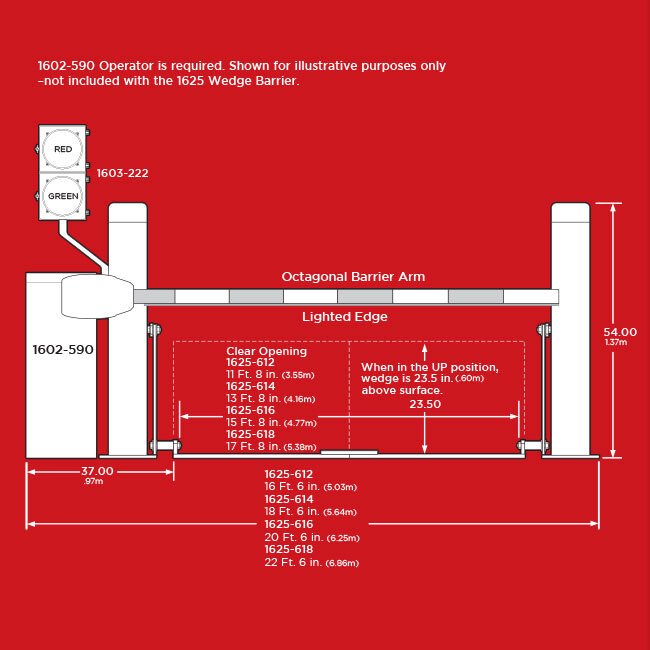

12 ft (3.66 m), Clear Opening is 11 ft 8 in (3.55 m)14 ft (4.27 m), Clear Opening is 13 ft 8 in (4.16 m)16 ft (4.87 m), Clear Opening is 15 ft 8 in (4.77 m)18 ft (5.48 m), Clear Opening is 17 ft 8 in (5.38 m)
Specifications Barrier Arm Type
Aluminum with LED Lighting (Red/Green)
Specifications Base
12 in. x 58.75 in.(304.8 mm x 1492 mm)1/2 in. Steel (12.7 mm)16 Anchor Points
Specifications Class Of Operation
Class II | Class III | Class IV
Specifications Mounting Type
Surface
Specifications Type
Anti-Crash | Vehicle Arresting
Technical Specifications Technical Specifications
Anchor Plates are 1/2 in (12.7mm) A36 steelAnchor post assembly are surface mounted and provide fourteen (16) anchor pointsWedge barrier is counter-balanced and mechanically linked to the 1602-590 operator. No hydraulics or environmental issues to worry about.Lane barrier assembly is zinc plated and finished in power-coat full gloss smooth super polyester1625 Wedge BarrierSteel wedge barrier and heavy duty steel posts provide a formidable barrier to help prevent passenger vehicles and light-duty trucks from driving through a controlled traffic lane, without the expense of bollards, wedges, or crash beams. (Not crash rated.)Surface mount (concrete only) for quick, easy installationIntegrated lighted Arm for high visibilityFast speed - raises and lowers in approximately 3.5 secondsSimple mechanical linkage to DKS 1602-590 OperatorOperator keeps Barrier Arm and Wedge Barrier in sync - no separate motors or hydraulic valves to worry aboutActual lane width for 12 ft. unit is 11 ft. 8 in. (3.55m)Actual lane width for 14 ft. unit is 13 ft. 8 in. (4.16m)Actual lane width for 16 ft. unit is 15 ft. 8 in. (4.77m)Actual lane width for 18 ft. unit is 17 ft. 8 in. (5.38m)Installs for thousands of dollars less than crash rated systems
