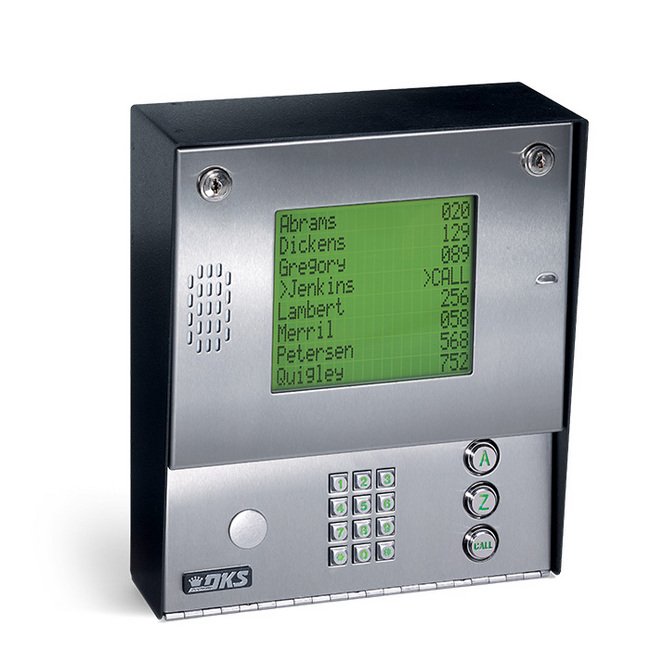

DoorKing 1830 Series Telephone Entry System
DoorKing 1830 Series Telephone Entry System
SKU:183-ae4738
Advanced entry system with 8000 access card codes, multiple security levels, and UL 294 & ETL Listed compliance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
DoorKing 1830 Series Telephone Entry System
$1,899.99
Quantity: 1
Claim Your Seller Account
DoorKing 1830 Series Telephone Entry System
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DoorKing 1830 Series Telephone Entry System is a comprehensive access management solution, featuring advanced security and control capabilities. With the ability to store up to 8000 access card codes, 31 security levels, and 8 hold open time zones, this system offers precise access control for institutional and government buyers. Compliant with Underwriters' Laboratories (UL) 294 and Edison Testing Laboratories (ETL) Listed standards, it ensures reliable performance and security. Elevator control capability, anti-pass back features, and live transaction monitoring make it ideal for applications in apartment complexes, commercial buildings, and high-security facilities.
Product Specifications
Additional Information Additional Information
The 90 Series was developed for easy internal installation of optional components such as entry point video camera, LCD heater and TCP/IP adapter for direct internet connections, offering a cleaner look and greater protection for the accessories. The settings of the 1830 Series can be programmed via our original Desktop/Remote Account Manager (RAM) downloadable software for PCs, or with our most advanced option - the Cloud Account Manager, which can be accessed on any browser on any computer, tablet or smartphone with an internet connection. Administrators can choose between a Cellular or VoIP connection to program with the Cloud or RAM, or a legacy POTS connection for RAM programming only. A completely turn-key access management solution, the DKS 1830 Series is backed by a nationwide dealer and support network of more than 4000 strong.
Advantages Advantages
Programmable directory codes (1-4 digits).10 and 11-digit dialing capability.Live Streaming.Live transactions.8000 event transaction buffer.Database import/export capability.Holiday schedule.Hold open time zones.Built-in clock/calendar.Built-in postal lock provision.Stores up to 3000 telephone numbers and names.8 hold open time zones.4-digit entry codes, one for each telephone number.EEPROM memory.Requires touch-tone, loop-start central office phone line.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialMixed Use BuildingsMaximum Security
Key Features Key Features

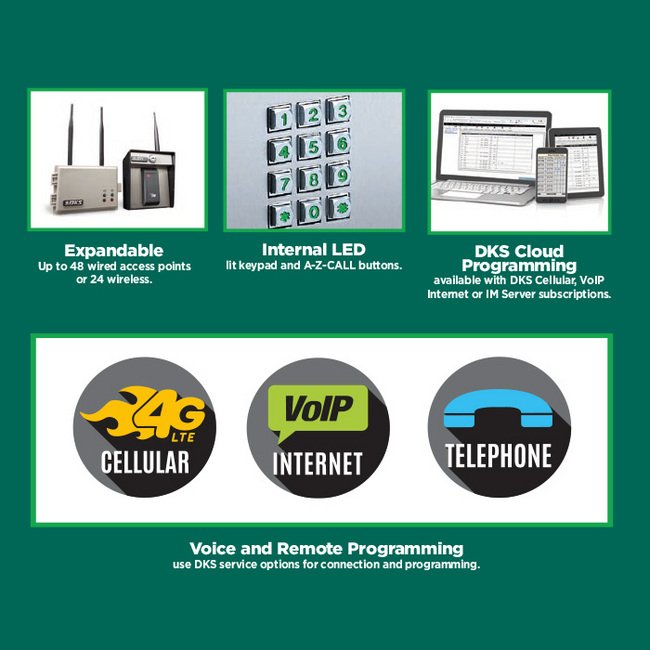

The 1837 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:Cellular 4G-LTE service (note 1)VoIP (note 2)POTS - Plain Old Telephone Service (note 3)Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using IM Server Modem (subscription required).Large easy to use A and Z scroll buttons.One Touch "CALL" button.Built-in eight-line LCD directory display.Programmable directory codes (1-4 digits).10 and 11-digit dialing capability.Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (or 24 wirelessly).Live Streaming.Live transactions.Anti-pass back.8000 event transaction buffer.Elevator control - requires elevator control boards(s)31 Security (permission levels)- 29 Programmable (2 fixed levels).Database import/export capability.LED Lighting illuminates keypad.Built-in clock/calendar.Holiday schedule.Hold open time zones.Entry code time zones.Built-in postal lock provision.
Memory Options Memory Options
Phone Numbers & Entry Codes: 3000 (4-Digit)
Options Options
CONNECTION OPTIONS (Connection options noted will incur additional cost for required hardware and/or service subscriptions. DKS Cloud programming included at no charge with DKS connection subscriptions.)Cellular powered by AT&T 4G LTEInternet select DK VoIP or your own VoIP providerPOTS Plain Old Telephone service ( POTS connection is not recommended for programming as modem communications can no longer be guaranteed.)
Specifications Alternating Current Ac Power Supply
16 V
Specifications Alternating Current Ac Transformer Voltage
16 V
Specifications Anti Pass Back
True Anti-Pass Back (APB)
Specifications Apparent Power
20 V·A | 50 V·A
Specifications Built In Directory
8-Line Liquid Crystal Display (LCD)
Specifications Call Button
Yes
Specifications Closed Circuit Television Cctv Camera Option
Camera Ready: Optional B&W or Color Closed-Circuit Television (CCTV) Camera
Specifications Communication
True Full Duplex Communication
Specifications Database Importexport Feature
Available
Specifications Digit Dialing
10 | 11
Specifications Dual Tone Multi Frequency Signaling Dtmf Tone Out
Available
Specifications Elevator Control Capability
Available
Specifications Handset Available
Hands-free Voice Operation (Optional Handset)
Specifications Hold Open Time Zones
8
Specifications Holiday Schedule
Available
Specifications Limited Factory Warranty
2 y
Specifications Live Transaction Capability
Available
Specifications Maximum Tracker Expansion Capability
Door Control: 3 Entry Points

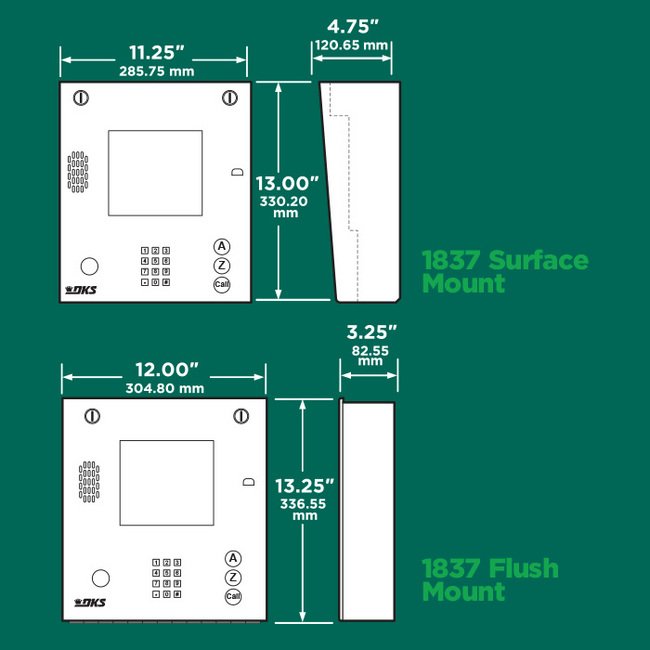

Specifications Mounting Type

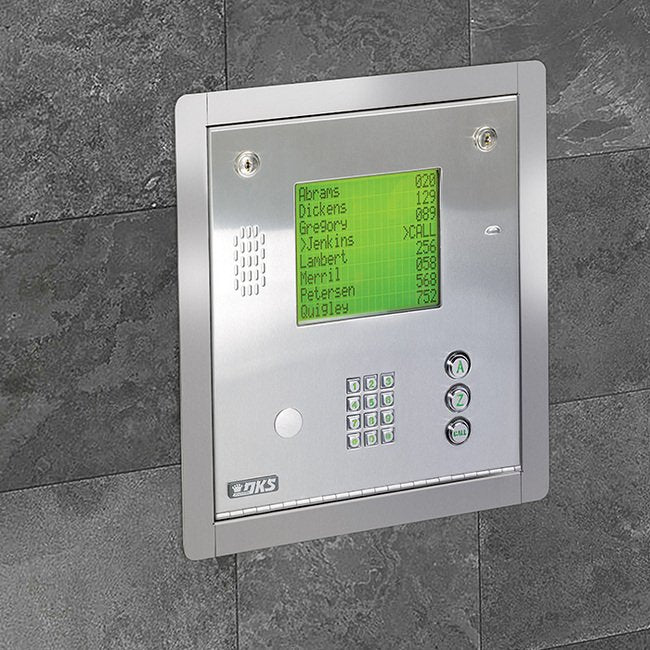

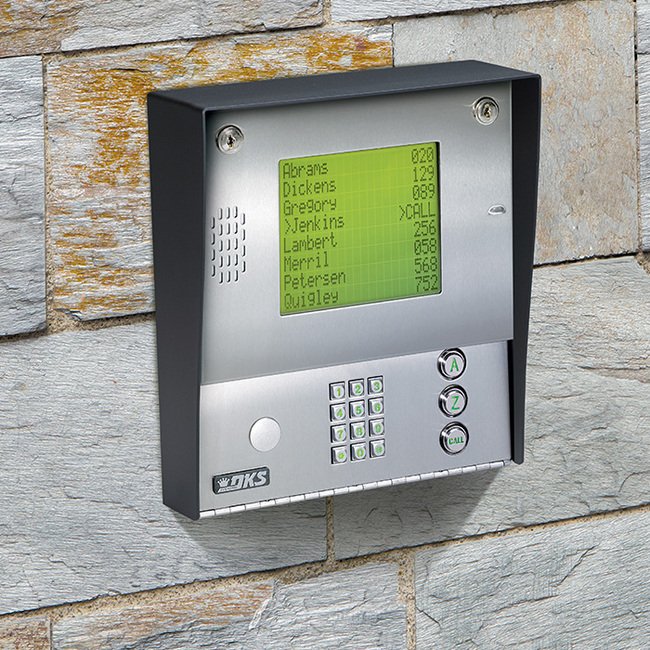

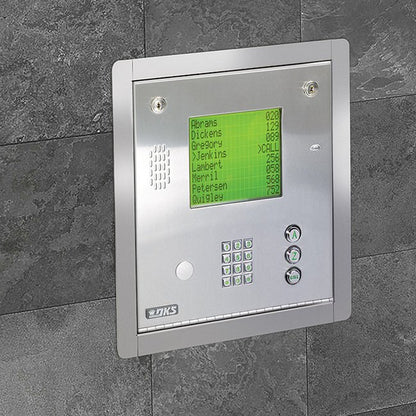

Flush | Surface
Specifications Note For Closed Circuit Television Cctv Camera Op
May require additional Closed-Circuit Television (CCTV) equipment
Specifications Note For Maximum Tracker Expansion Capability
Expands to 48 with wired expansion boards or to 24 with wireless expansion boards.
Specifications Number Of Card Device Codes
8000
Specifications Number Of Programmable Area Codes
255
Specifications Number Of Relays
3
Specifications Number Of Security Permission Levels
31
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Other Options
Elevator control option controls up to 8 elevators, each serving up to 64 floors (restricts system users to only authorized floors).
Specifications Postal Lock Provision
Yes
Specifications Programmable Directory Codes
Yes, 1 to 4 Digits
Specifications Programmable Facility Codes
10
Specifications Programming
Cloud | Remote Account Manager
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Specifications Transaction Buffer
8000 Events
