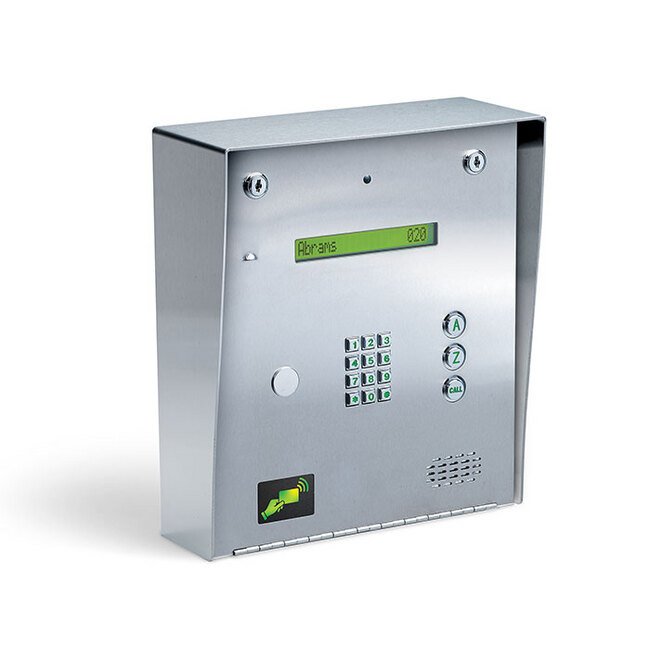

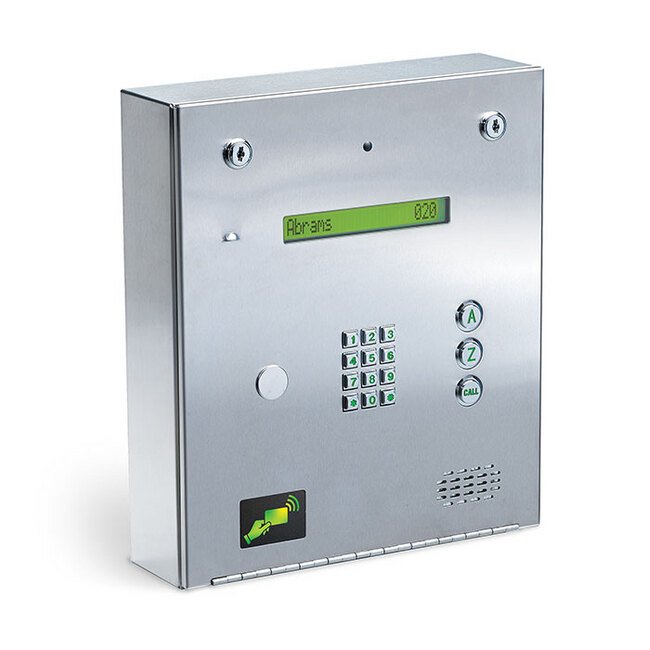

DoorKing 1835 Telephone Entry System
DoorKing 1835 Telephone Entry System
SKU:183-e25ce5
Enhance control and security with the DoorKing 1835 Telephone Entry System, storing up to 3000 phone numbers and 8000 device codes in a streamlined, secure housing.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
DoorKing 1835 Telephone Entry System
$1,399.99
Quantity: 1
Claim Your Seller Account
DoorKing 1835 Telephone Entry System
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DoorKing 1835 Telephone Entry System from the 90 Series housing offers advanced features including storage for up to 3000 phone numbers and 8000 device codes. This system can control up to 48 wired access points with optional Tracker Expansion boards. With a streamlined design, enhanced locking, and weather sealing, it allows for easy installation of additional components like a card reader and TCP/IP adapter. Ideal for institutional settings, it meets UL 294 and ETL standards, ensuring reliability and security for government and commercial use.
Product Specifications
Additional Information Additional Information

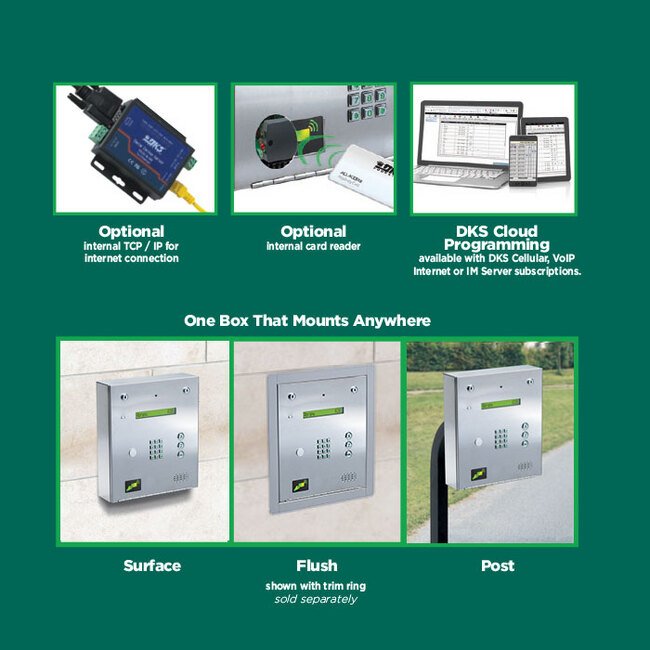

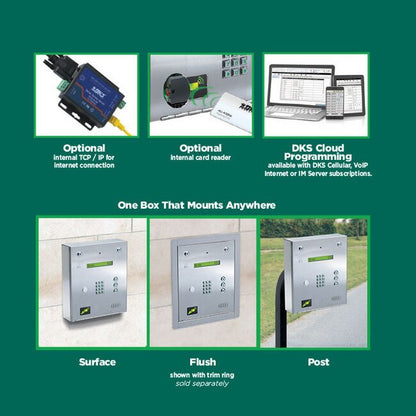

The 90 Series was developed for easy internal installation of optional components such as entry point video camera, LCD heater and TCP/IP adapter for direct internet connections, offering a cleaner look and greater protection for the accessories. The settings of the 1830 Series can be programmed via our original Desktop/Remote Account Manager (RAM) downloadable software for PCs, or with our most advanced option - the Cloud Account Manager, which can be accessed on any browser on any computer, tablet or smartphone with an internet connection. Administrators can choose between a Cellular or VoIP connection to program with the Cloud or RAM, or a legacy POTS connection for RAM programming only. A completely turn-key access management solution, the DKS 1830 Series is backed by a nationwide dealer and support network of more than 4000 strong.
Advantages Advantages
The 1835 90 Series stores up to 3000 phone numbers and 8000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion boards (up to 24 wirelessly). The 90 Series housing offers a streamlined look, has enhanced locking and weather sealing and provides easy internal installation of optional components such as a card reader, LCD heater and TCP/IP adapter for a direct internet connection.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialMixed Use Buildings
Key Features Key Features
The 1835 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:Cellular 4G-LTE service (note 1)VoIP (note 2)POTS - Plain Old Telephone Service (note 3)Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using the IM Server Modem (subscription required). DoorKing® does not recommend using a POTS line for programming the telephone entry system. DoorKing® can no longer guarantee modem connections as some phone company services and switches no longer support modem communications as these devices are considered to be obsolete.Large easy to use A and Z scroll buttons.One Touch "CALL" button.Built-in single-line LCD directory display.Programmable directory codes (1-4 digits).10 and 11-digit dialing capability.Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (or 24 with a wireless connection).Live Streaming.Live transactions.Anti-pass back.8000 event transaction buffer.31 Security (permission levels)- 29 Programmable (2 fixed levels).Database import/export capability.LED Lighting illuminates keypad.Built-in clock/calendar.Holiday schedule.Hold open time zones.Entry code time zones.Built-in postal lock provision.
Memory Options Memory Options
255 Area Codes | 3000 Phone Numbers
Options Options
CONNECTION OPTIONS (Connection options noted will incur additional cost for required hardware and/or service subscriptions. DKS Cloud programming included at no charge with DKS connection subscriptions.)Cellular powered by AT&T 4G LTEInternet select DK VoIP or your own VoIP providerPOTS Plain Old Telephone service ( POTS connection is not recommended for programming as modem communications can no longer be guaranteed.)
Specifications Alternating Current Ac Power Supply
16 V
Specifications Alternating Current Ac Transformer Voltage
16 V
Specifications Anti Pass Back
Yes
Specifications Apparent Power
20 V·A
Specifications Built In Directory
Single-Line Liquid Crystal Display (LCD)
Specifications Call Button
Yes
Specifications Closed Circuit Television Cctv Camera Option
Optional High-Resolution Camera Kits
Specifications Communication
True Full Duplex Communication
Specifications Database Importexport Feature
Available
Specifications Digit Dialing
10 | 11
Specifications Dual Tone Multi Frequency Signaling Dtmf Tone Out
Available
Specifications Elevator Control Capability
Available
Specifications Hold Open Time Zones
8
Specifications Holiday Schedule
Available
Specifications Limited Factory Warranty
2 y
Specifications Live Transaction Capability
Available
Specifications Maximum Tracker Expansion Capability
Door Control: 3 Entry Points
Specifications Mounting Type
Flush | Surface
Specifications Note For Closed Circuit Television Cctv Camera Op
Additional CCV equipment and cabling required
Specifications Note For Maximum Tracker Expansion Capability
Expands up to 48 with wired tracker boards; 24 with wireless tracker boards.
Specifications Number Of Card Device Codes
8000
Specifications Number Of Programmable Area Codes
255
Specifications Number Of Relays
3
Specifications Number Of Security Permission Levels
31
Specifications Number Of Transformers
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Postal Lock Provision
Yes
Specifications Programmable Directory Codes
Yes, 1 to 4 Digits
Specifications Programmable Facility Codes
10
Specifications Programming
Cloud | Remote Account Manager
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Specifications Transaction Buffer
8000 Events
Technical Specifications Technical Specifications
True Full Duplex Communication.Stores up to 3000 telephone numbers and names.Stores up to 255 area codes.Transaction buffer stores last 8000 events.Stores up to 8000 access card codes - dependent on system memory.31 security (permission) levels, 29 programmable with 4 time zones each.8 hold open time zones.Three anti-pass back configurations: passive, active and trap.Elevator control (Requires Elevator Control Board(s).) for up to 8 elevators, each serving 64 floors.Expandable (Requires Tracker Expansion Board(s).) to control up to 48 wired entry points (or 24 wirelessly).4-digit entry codes, one for each telephone number.3 form "C" dry contact relays.Single-line directory display uses super-twist LCD with 1/2-inch characters.EEPROM memory chip.Requires touch-tone, loop-start central office phone line.Two 16 VAC, 20 VA power transformers supplied.FCC (US): DUF6VT-12874-OT-TDOC (CAN): 1736 4528 ACompliant with UL 294. ETL listed.Dimensions Surface Mount: 13 "H x 11.25 "W x 4.75 "D.Dimensions Flush Mount: 13.25 "H x 12 "W x 3.25 "D.
