DoorKing 1837 90 Series Telephone Entry System
DoorKing 1837 90 Series Telephone Entry System
SKU:183-c8e4b7
Enhanced entry system for institutional/commercial use, advanced security features, expandable access control, ideal for high-security applications
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DoorKing 1837 90 Series Telephone Entry System
$899.99
Quantity: 1
Claim Your Seller Account
DoorKing 1837 90 Series Telephone Entry System
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DoorKing 1837 90 Series Telephone Entry System is a premier solution for controlled access in institutional and commercial settings. With the capability to store up to 3000 phone numbers and 8000 device codes, expandable to control up to 48 wired access points, it offers advanced features like True Full Duplex communication, elevator control, anti-pass back configurations, and a comprehensive security setup with 31 permission levels. Designed for durability and usability, it boasts a sleek housing with enhanced locking mechanisms and weather sealing. Ideal for applications in high-security environments like gated communities, industrial facilities, and mixed-use buildings.
Product Specifications
Additional Information Additional Information
The 90 Series was developed for easy internal installation of optional components such as entry point video camera, LCD heater and TCP/IP adapter for direct internet connections, offering a cleaner look and greater protection for the accessories. The settings of the 1830 Series can be programmed via our original Desktop/Remote Account Manager (RAM) downloadable software for PCs, or with our most advanced option - the Cloud Account Manager, which can be accessed on any browser on any computer, tablet or smartphone with an internet connection. Administrators can choose between a Cellular or VoIP connection to program with the Cloud or RAM, or a legacy POTS connection for RAM programming only. A completely turn-key access management solution, the DKS 1830 Series is backed by a nationwide dealer and support network of more than 4000 strong.
Advantages Advantages
The 1837 90 Series stores up to 3000 phone numbers and 8000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion boards (up to 24 wirelessly). The 90 Series housing offers a streamlined look, has enhanced locking and weather sealing and provides easy internal installation of optional components such as a card reader, LCD heater and TCP/IP adapter for a direct internet connection.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialMixed Use BuildingsMaximum Security
Key Features Key Features
The 1837 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:Cellular 4G-LTE service (note 1)VoIP (note 2)POTS - Plain Old Telephone Service (note 3)Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using IM Server Modem (subscription required). DoorKing® does not recommend using a POTS line for programming the telephone entry system. DoorKing® can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete. Large easy to use A and Z scroll buttons.One Touch "CALL" button.Built-in eight-line LCD directory display.Programmable directory codes (1-4 digits).10 and 11-digit dialing capability.Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (or 24 wirelessly).Live Streaming.Live transactions.Anti-pass back.8000 event transaction buffer.Elevator control - requires elevator control boards(s)31 Security (permission) Levels - 29 Programmable (2 fixed levels).Database import/export capability.Built-in clock/calendar.Holiday schedule.Hold open time zones.Entry code time zones.Built-in postal lock provision.
Memory Options Memory Options
Phone Numbers & Entry Codes: 3000 (4-Digit)
Options Options
CONNECTION OPTIONS (Connection options noted will incur additional cost for required hardware and/or service subscriptions. DKS Cloud programming included at no charge with DKS connection subscriptions.)Cellular powered by AT&T 4G LTEInternet select DK VoIP or your own VoIP providerPOTS Plain Old Telephone service ( POTS connection is not recommended for programming as modem communications can no longer be guaranteed.)
Specifications Alternating Current Ac Power Supply
16 V
Specifications Alternating Current Ac Transformer Voltage
16 V
Specifications Anti Pass Back
Yes
Specifications Apparent Power
20 V·A | 50 V·A
Specifications Built In Directory
8-Line Liquid Crystal Display (LCD)
Specifications Call Button
Yes
Specifications Closed Circuit Television Cctv Camera Option
Optional High-Resolution Camera Kits
Specifications Communication
True Full Duplex Communication
Specifications Database Importexport Feature
Available
Specifications Digit Dialing
10 | 11
Specifications Dual Tone Multi Frequency Signaling Dtmf Tone Out
Available
Specifications Elevator Control Capability
Available
Specifications Hold Open Time Zones
8
Specifications Holiday Schedule
Available
Specifications Limited Factory Warranty
2 y
Specifications Live Transaction Capability
Available
Specifications Maximum Tracker Expansion Capability
Door Control: 3 Entry Points
Specifications Mounting Type
Flush | Surface
Specifications Note For Closed Circuit Television Cctv Camera Op
Additional CCV equipment and cabling required
Specifications Note For Maximum Tracker Expansion Capability
Expands to 48 with wired expansion boards or to 24 with wireless expansion boards.
Specifications Number Of Card Device Codes
8000
Specifications Number Of Programmable Area Codes
255
Specifications Number Of Relays
3
Specifications Number Of Security Permission Levels
31
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Postal Lock Provision
Yes
Specifications Programmable Directory Codes
Yes, 1 to 4 Digits
Specifications Programmable Facility Codes
10
Specifications Programming
Cloud | Remote Account Manager
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Specifications Transaction Buffer
8000 Events
Technical Specifications Technical Specifications

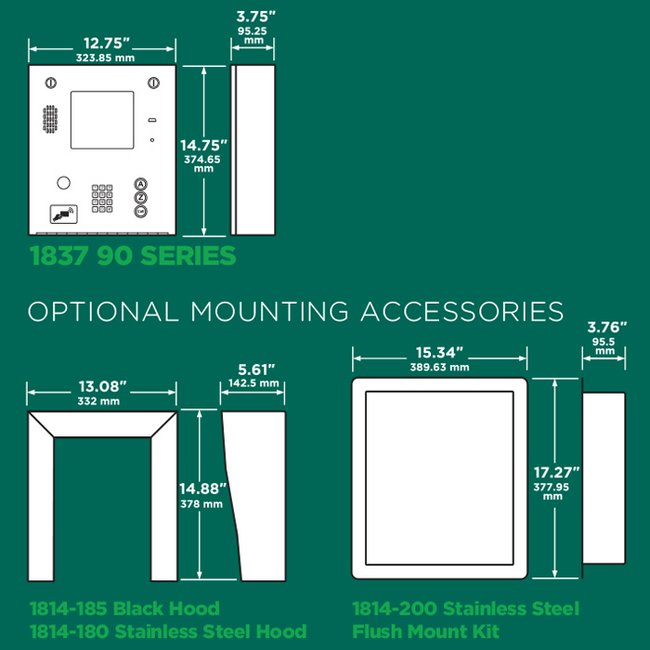

True Full Duplex communication.Stores up to 3000 telephone numbers and names.Transaction buffer stores last 8000 events.Stores up to 8000 device (card) codes.31 Security (permission) Levels, 29 programmable with 4 time zones each.8 hold open time zones.Three anti-pass back configurations: passive, active and trap.Elevator control for up to 8 elevators, each serving 64 floors.Expandable to control up to 48 wired entry points (or 24 wirelessly).4-digit entry codes, one for each telephone number.3 form "C" dry contact relays.Eight-line directory display uses super-twist LCD with 1/2-inch characters.EEPROM memory chip.16 VAC, 20 VA and 16 VAC, 50 VA power transformers supplied.FCC (US): DUF6VT-12874-OT-TDOC (CAN): 1736 4528 ACompliant with UL 294. ETL listed.Dimensions 1837-90 Series14.75" (375 mm) H x 12.75" (324 mm) W x 3.75" (95 mm) D.
