DoorKing Access Controller & Card Reader
DoorKing Access Controller & Card Reader
SKU:ACC-5fd3e3
Enhanced access control system with card reader, ideal for residential & commercial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DoorKing Access Controller & Card Reader
$299.99
Quantity: 1
Claim Your Seller Account
DoorKing Access Controller & Card Reader
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

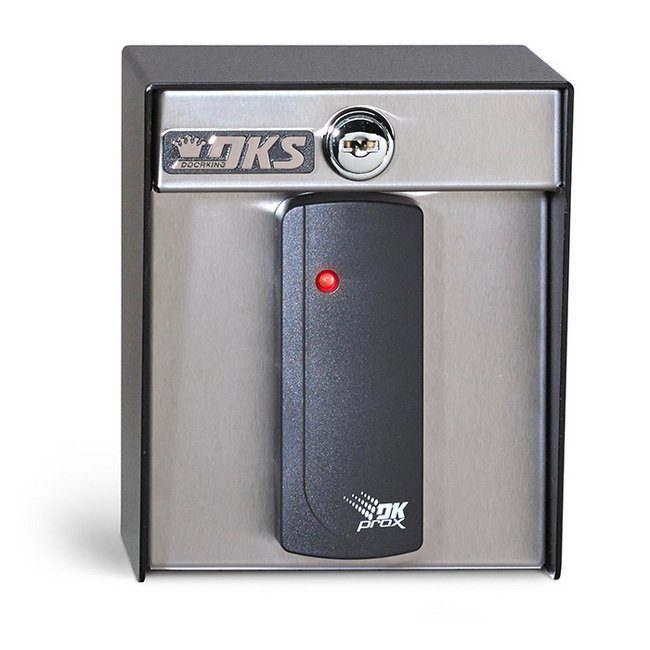

Experience advanced access control with the DoorKing Access Controller & Card Reader. This versatile system offers a single-door solution with a built-in proximity card reader, allowing for seamless access management. With features like a 1000 card code memory, anti-pass back technology, and programmable time zones, it caters to residential and commercial applications. The product ensures secure and efficient entry control, with a durable design suitable for indoor and outdoor use.
Product Specifications
Additional Information Additional Information
The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple gates, doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPlus® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Advantages Advantages
Single door controller allowing the user to add their own 26-bit access control device
Applications Applications
ResidentialCommercial
Key Features Key Features
Full feature card readerTransaction/history buffer stores up to 3,656 events, anti-pass back, time zones, serial output for printerBuilt-in keypad for easy programmingController only version allows you to add almost any 26-bit wiegand device (card reader, keypad, etc.)Built-in proximity card reader (available with DK Prox, AWID or HID reader)Available as a controller only (add your own 26-bit wiegand device)Built-in programming keypadIndoor or outdoor use
Specifications Alternating Current Ac Power Supply
16 V
Specifications Anti Pass Back
Yes
Specifications Controller Type
Access Controller
Specifications Direct Current Dc Power Supply
12 V | 24 V
Specifications Hold Open Capability
Yes
Specifications Hold Open Time Zones
Yes
Specifications Industry Uses
Commercial | Condominium | Gated Communities | Industrial | Maximum Security | Mixed Use | Parking | Residents Hall | Self Storage
Specifications Light Emitting Diode Led Beeper
Beeper | Light Emitting Diode (LED)
Specifications Limited Factory Warranty
2 y
Specifications Live Transaction Capability
To Printer
Specifications Maximum Access Points
1
Specifications Maximum Codes
1000
Specifications Number Of Card Device Codes
1000
Specifications Operating Temperature
-35 to 65 ºC | -31 to 150 ºF
Specifications Operating Temperature Range
-35 to 65 ºC | -31 to 150 ºF
Specifications Output Type
1 Relay
Specifications Programmable Facility Codes
10
Specifications Programming
Programming Via The Built-in Programming Keypad
Specifications Time Zones
4
Specifications Transaction Buffer
3656
Technical Specifications Technical Specifications
Designed for single door or gate stand-alone applications1000 card code memoryProgramming via the built-in programming keypadAvailable with DK Prox, AWID, HID readers, or can be ordered as a controller only (add your own 26-bit wiegand device)Lighted enclosure for outdoor useTransaction buffer stores last 3656 eventsBuilt-in clock calendarFour time zones and hold open time zonesProgrammable facility codesAnti-pass backPrint menu and real time print mode (printer not included)Clock and transaction buffer will maintain data for up to three days in the event of a power failureForm "C" dry contact relay16 VAC, 20 VA power transformer supplied.
