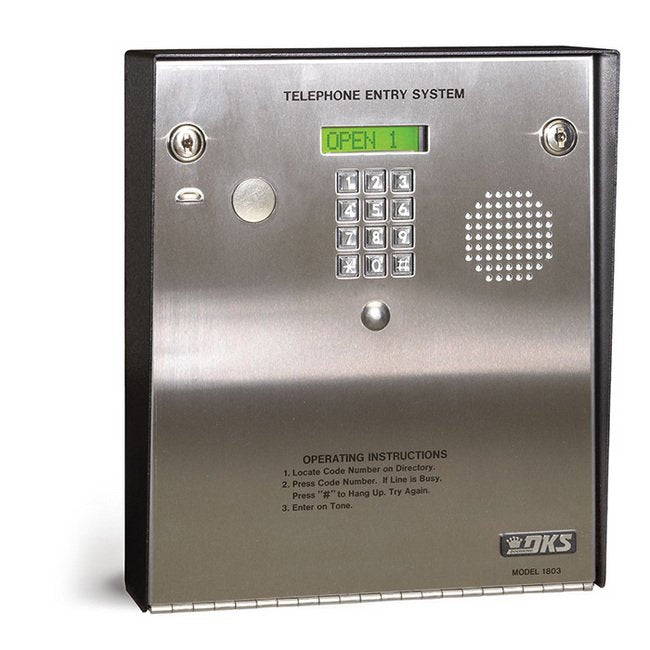

DoorKing DKS 1803 Telephone Entry System
DoorKing DKS 1803 Telephone Entry System
SKU:DKS-3fab58
Enhance security and control access with the DoorKing DKS 1803 Telephone Entry System. Ideal for commercial and residential applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
DoorKing DKS 1803 Telephone Entry System
$699.99
Quantity: 1
Claim Your Seller Account
DoorKing DKS 1803 Telephone Entry System
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DoorKing DKS 1803 Telephone Entry System sets the standard for secure access control with features like programmable directory codes, full-duplex voice communication, time clock integration, and more. Ideal for various applications including gated communities, commercial buildings, and self-storage facilities. This system is compliant with UL 294 and ETL Listed standards, ensuring top-notch quality and reliability for institutional and government buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Simple and cost effective, the Standard Series offers a range of options from no user directory, to limited directory, or even space for a printed directory. A slim model is also available for properties with limited space to mount the System. Providing just the right fit of features, the DKS Standard Series is backed by a nationwide dealer and support network of more than 4000 strong.
Advantages Advantages
Ideal Telephone Entry System that is suited for applications that do not require a directory, or in applications where a separate directory exists. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMaximum SecurityMixed Use BuildingsSelf Storage
Key Features Key Features
Programmable directory codes (1-4 digits)16-digit dialingTwo special inputs can be programmed for relay activation or to dial out a preprogrammed phone number5-digit entry codes for special needsBuilt-in time clockHold open time zonesEntry code time zonesFlash entry codesProgramming display
Memory Options Memory Options
Phone Number Memory : 600
Options Options
Surface or flush mount - specify which.
Specifications Alternating Current Ac Power Supply
16 V
Specifications Built In Directory
No
Specifications Closed Circuit Television Cctv Camera Option
Camera Ready: Optional Color Closed-Circuit Television (CCTV) Camera
Specifications Communication
Hands Free Full Duplex Voice Communication
Specifications Digit Dialing
16
Specifications Dual Tone Multi Frequency Signaling Dtmf Tone Out
Dual Tone Multi Frequency Signaling (DTMF) tone output allows for use with PBX and auto-attendant type phone systems
Specifications Entry Code Time Zone Restrictions
Yes
Specifications Flash Entry Code
Yes
Specifications Handset Available
Hands Free Voice Operation (Optional Handset Available On Surface Mount Only)
Specifications Limited Factory Warranty
2 y
Specifications Liquid Crystal Display Lcd Programming Display
Liquid Crystal Display (LCD) display for programming assistance and shows 'open' when access is granted
Specifications Mounting Type
Flush | Surface
Specifications Note For Closed Circuit Television Cctv Camera Op
May require additional Closed-Circuit Television (CCTV) equipment
Specifications Number Of Relays
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Postal Lock Provision
Yes
Specifications Programmable Directory Codes
Yes, 1 to 4 Digits
Specifications Programming
No
Specifications Ringer Equivalence
0.0 A
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Specifications Time Clock
Yes
Technical Specifications Technical Specifications

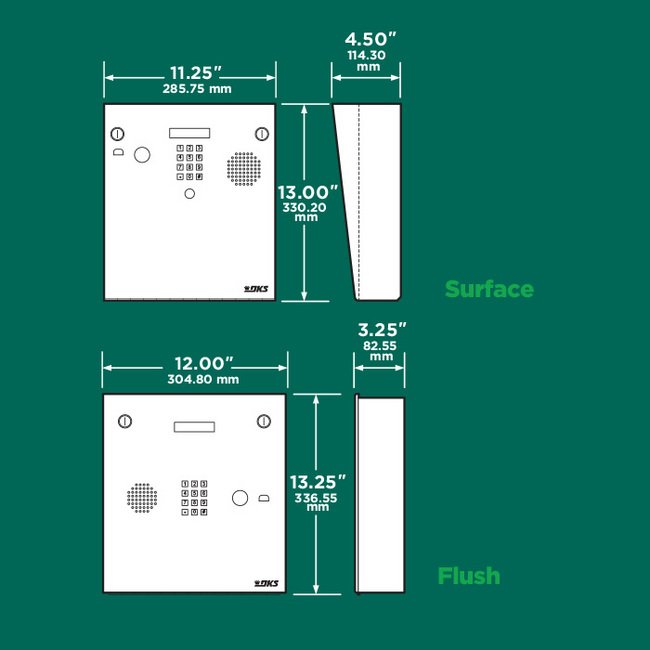

Stores up to 600 telephone numbers.EEPROM Memory Chip.Full duplex communication.4-digit entry codes; 1000.Six, 5-digit entry codes.16 VAC, 20 VA (250 ma) power transformer provided.Ringer equivalence: 0.0 A.Jack type: RJ11C or W.FCC (US): DUF6VT-12874-OT-0DOC (CAN): 1736 4507 AComplies with UL 294; ETL Listed.Surface mount dimensions: 13 "H x 11.25 "W x 4.5 "D.Flush mount dimensions: 13.25 "H x 12 "W x 3 "D.
