DoorKing DKS Series Access Plus Telephone Entry System
DoorKing DKS Series Access Plus Telephone Entry System
SKU:DKS-4cc522
Versatile PC Programmable telephone entry system for single-family homes & small complexes. IP addressable, compliant with UL 294 & ETL Listed standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
DoorKing DKS Series Access Plus Telephone Entry System
$1,299.99
Quantity: 1
Claim Your Seller Account
DoorKing DKS Series Access Plus Telephone Entry System
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

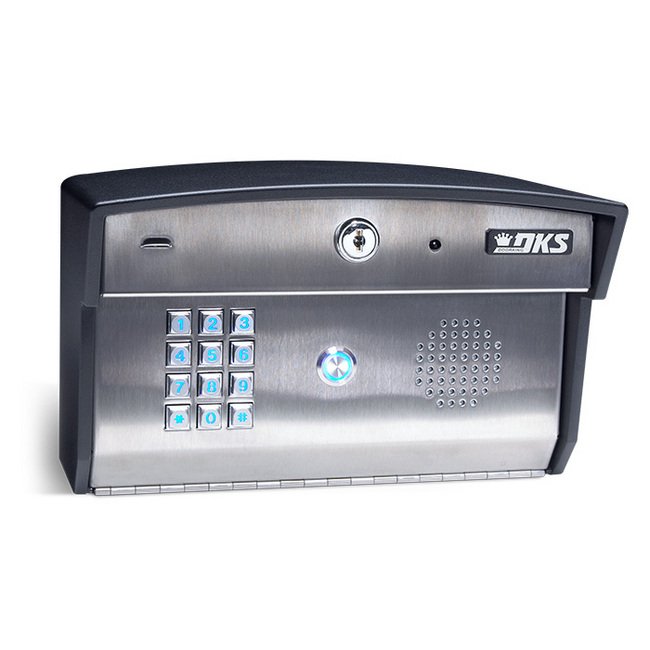

The DoorKing DKS Series Access Plus Telephone Entry System is a versatile PC Programmable system designed for single-family homes and small complexes. With the ability to provide voice communication for up to 27 residents, this system allows control of up to six additional access points using cards, transmitters, or keypads. It is IP addressable, facilitating direct PC programming via LAN or internet. Features like call forwarding, unique double ring, built-in clock/calendar, and holiday schedules enhance security and convenience. Compliant with UL 294 and ETL Listed standards, this system offers advanced access control for residential applications.
Product Specifications
Additional Information Additional Information
With a host of advanced features, the 1812 Access Plus offers a big time access control system for residential applications at an affordable price.
Advantages Advantages
Call forwarding with time zone restrictions.Call waiting.Unique double ring.Built-in clock / calendar.Do-not-disturb feature.Four "hold open" time zones.Answer machine bypass feature.50 5-digit entry codes with time zone restrictions on some codes.10 Temporary entry codes with start and end dates.Special intercom mode for use with KSU and PBX phone systems.500 event transaction buffer.Holiday schedule.Ideal for single Family homes/estates.
Applications Applications
Residential
Key Features Key Features
Stores up to 27 phone numbers10 Temporary access codesIP addressable - program from your PC via direct connection, LAN or internetOptional cellular adapter for wireless serviceAccess Plus Account Manager programming software is a free download.Add up to six (6) card readers, keypads or RF receivers (RS-485).Optional relay board for use with 26-bit devices100 card / transmitter / keypad codes (50 with phone numbers; 50 access codes only).Up to 30 holidays can be added to access and hold open time zones.Control access points from your PC. Schedule lock and unlock times, lock or unlock an access point with the click of your mouse.10 temporary access codes with start and end dates.500 event transaction buffer.Email notification of events of your choice. Internet connection required.Call waiting.Call forwarding with time zone restrictions.Unique double ring.Built-in clock / calendar.Do-not-disturb feature.Four "hold open" time zones.Answer machine bypass feature.Intercom mode for use with PBX and KSU phone systems.
Options Options
Surface, curved surface or flush mount - specify which.Stainless steel housing (surface mount only).RF 485 Card Readers, Keypads, RF Controls and Conversion BoardsCellular adapterRelay boards for 26-bit devices
Specifications Alternating Current Ac Power Supply
16 V
Specifications Auto Dialer Numbers
27
Specifications Built In Directory
No
Specifications Hold Open Time Zones
4
Specifications Holiday Schedule
Up to 30 holidays can be added to access and hold open time zones.
Specifications Intercom Numbers
1
Specifications Limited Factory Warranty
2 y
Specifications Mounting Type
Flush | Surface | Surface Curved
Specifications Number Of Built In Relays
2
Specifications Number Of Card Device Codes
100
Specifications Number Of Relays
2
Specifications Number Of Rs 485 Devices
6
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Personal Computer Pc Programmable
Direct Connection | Internet | Local Area Network (LAN)
Specifications Programming
PC Programming Access Plus Account Manager Software
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Specifications Use
Single-Family Residential Homes
Technical Specifications Technical Specifications

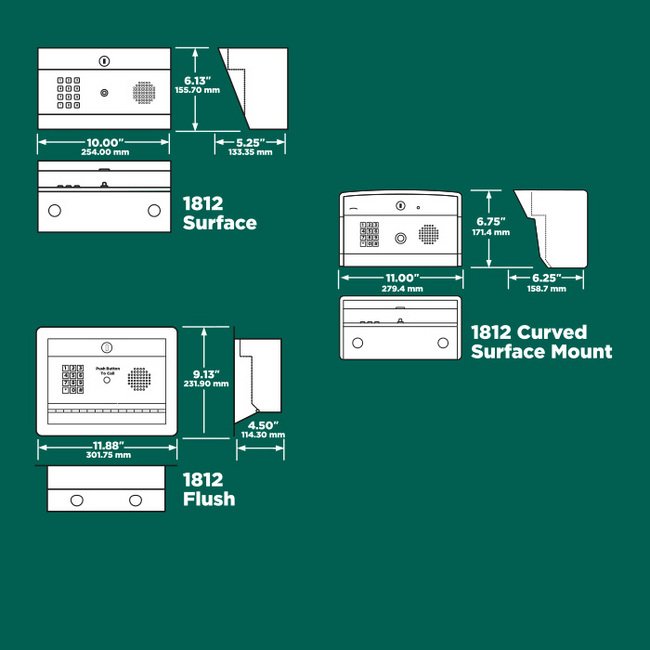

16 VAC, 20 VA (250 ma) power transformer provided.FCC (US): DUF6VT-12874-OT-0DOC (CAN): 1736 4507 AComplies with UL 294; ETL Listed. Surface mount dimensions: 6.13 "H x 10 "W x 5.25 "D.Surface curved mount dimensions: 7.38 "H x 10.88 "W x 6 "DFlush mount dimensions: 9.13 "H x 11.88 "W x 4.5 "D.
