DoorKing DKS Series Access Plus Telephone Entry System
DoorKing DKS Series Access Plus Telephone Entry System
SKU:DKS-038a8d
Advanced telephone entry system for up to 27 residents with voice communication, IP programmability, and compliance with UL 294 & ETL standards.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
DoorKing DKS Series Access Plus Telephone Entry System
$1,699.99
Quantity: 1
Claim Your Seller Account
DoorKing DKS Series Access Plus Telephone Entry System
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DoorKing DKS Series Access Plus Telephone Entry System is a versatile and advanced solution designed for residential and small multi-resident complexes. With the ability to provide voice communication for up to 27 residents, this IP-addressable system allows for easy programming via PC, LAN, or internet connection. Features include full-duplex voice communication, PC programmability, built-in directory, and compliance with UL 294 and ETL Listed standards. Ideal for apartment buildings, commercial properties, and gated communities, this system offers reliable access control and seamless entry management.
Product Specifications
Additional Information Additional Information
With a host of advanced features, the 1810 Access Plus offers a big time access control system for smaller applications at an affordable price. Access Plus models do not have any programming display or electronic directory. Display area is covered with dark plastic on this model.
Advantages Advantages

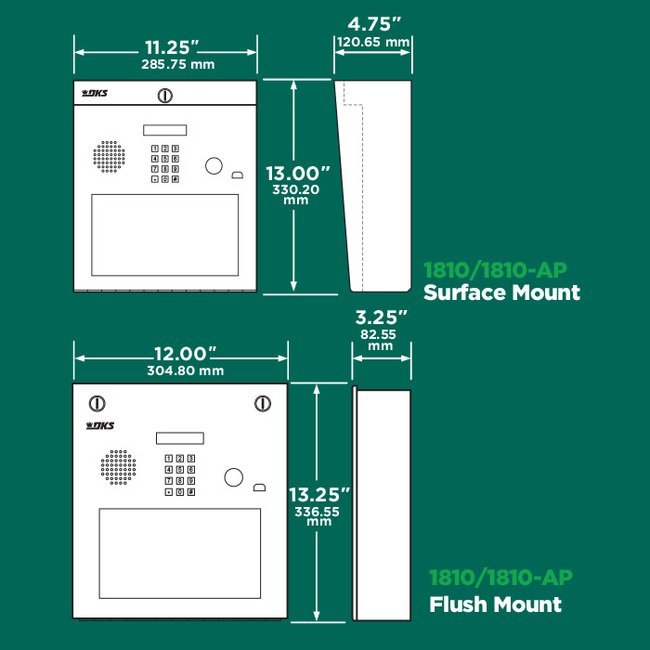

Built in light directory.Surface/Flush mount.Small to medium Multi-resident/tenant complexes.
Applications Applications
Apartment / College Residents HallsCommercial / Industrial BuildingsApartment Complex / Gated CommunitiesMixed Use Buildings
Key Features Key Features

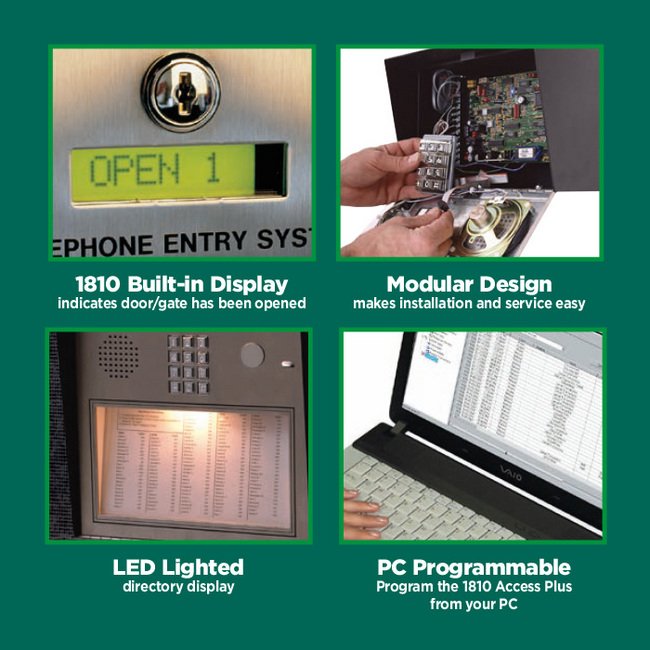

Up to 27 phone numbers (23 additional with 1816 AP intercom expansion)IP addressable - program from your PC via direct connection, LAN or an Internet connectionOptional cellular adapter for wireless serviceAccess Plus Account Manager software is a free downloadControl up to six (6) additional access points with cards, keypads or transmitters (RS-485)Optional relay board allows use of existing 26-bit wiegand devicesHoliday scheduleFour (4) hold open time zonesSchedule un-lock / lock timesEmail notificationsLive relay control from your PC100 device codes (card, keypad, transmitter)500 event history buffer10 temporary access codesBuilt-in lighted directory for 27 names, easily printed with Access Plus softwareVoice CommunicationProvides voice communication from the entry point via the central office telephone service for up to 27 Residents/TenantsCan provide voice communication from the entry point for up to 23 residents/tenants without central office phone service by using the 1816 Access Plus telephone intercom add-on moduleAccess ControlResidents/Tenants can control two (2) doors or gates via their touch-tone telephone after voice communication is established with their guestAccess Control devices include card readers, keypads, MicroPlus RF controlsUp to six (6) additional entry points can be controlled via card, keypad or RF control
Options Options
"No phone line" intercom system in conjunction with the DKS 1816 APRF 485 Card Readers, Keypads, RF Controls and Conversion BoardsCellular adapterRelay board allows use of 26-bit devices
Specifications Auto Dialer Numbers
27
Specifications Built In Directory
Yes
Specifications Communication
Full Duplex Voice Communication
Specifications Digit Dialing
2 | 20
Specifications Directory
Maximum 27 Names
Specifications Hold Open Time Zones
4
Specifications Holiday Schedule
Yes
Specifications Intercom Numbers
23
Specifications Limited Factory Warranty
2 y
Specifications Mounting Type
Flush | Surface
Specifications Number Of Built In Relays
2
Specifications Number Of Card Device Codes
100
Specifications Number Of Relays
2
Specifications Number Of Rs 485 Devices
6
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Personal Computer Pc Programmable
Direct Connection | Internet | Local Area Network (LAN)
Specifications Programming
PC Programming Access Plus Account Manager Software
Specifications Ringer Equivalence
0.0 A
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Technical Specifications Technical Specifications
16 VAC, 20 VA (250 ma)U.L. listed power transformer provided.Ringer equivalence: 0.0 A.Jack type: RJ11C or W.FCC (US): DUF6VT-12874-OT-0DOC (CAN): 1736 4507 AComplies with UL 294; ETL Listed.
