Cutting-edge DoorKing MicroCLIK RF Access Control System for secure and convenient vehicular gate access with advanced features.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
DoorKing MicroCLIK RF Access Control System
$399.99
Quantity: 1
Claim Your Seller Account
DoorKing MicroCLIK RF Access Control System
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

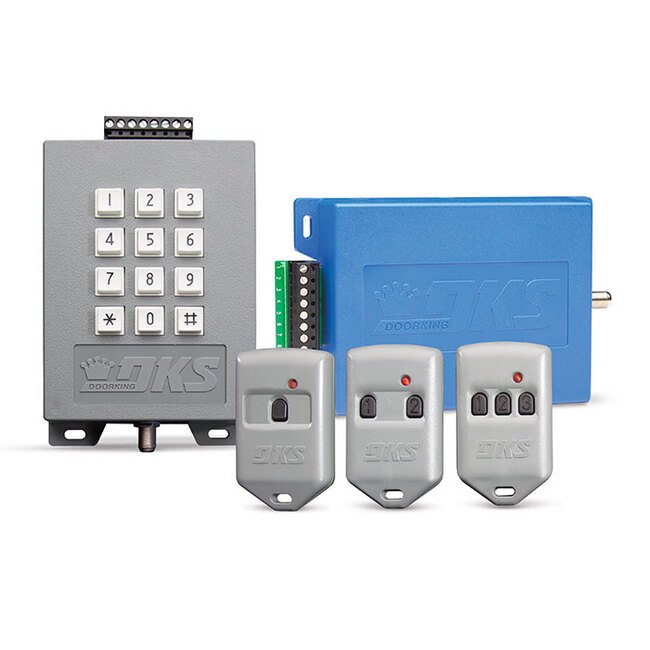

The DoorKing MicroCLIK® RF Access Control System is a cutting-edge solution designed for both residential and commercial applications. With its advanced technology, this system enables remote operation of vehicular access gates with over 1,000,000 transmitter codes available. The Model 8040 Receiver, with its low-power draw and solar application capability, offers enhanced security features and flexibility, making it an ideal choice for apartment complexes, gated communities, commercial properties, and high-security facilities. The system's compatibility with luxury automobile built-in transmitters ensures convenience and seamless integration, providing users with peace of mind and ease of access.
Product Specifications
Additional Information Additional Information
DoorKing®âs line of Access Control products is built to deliver customizable, expandable, and user-friendly access points for any property. The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPLUS® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Advantages Advantages
Transmitter codes to be copied into the built-in Transmitters found in many luxury automobiles.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMaximum SecurityMixed Use BuildingsSelf Storage
Key Features Key Features
Provides remote operation of vehicular access gates from the safety and convenience of a vehicleOver 1,000,000 transmitter codes availablePROXmtr⢠includes a built in proximity card with the MicroCLIK transmitter combining both RF and card access control into a single compact unitTransmitters available with 1, 2 or 3 buttonsMicroCLIK® RF controls may be used as a stand-alone access control system or can be interfaced with 26 or 31-bit wiegand controllersHomeLink® compatibleListingsFCC (US): LSD8059RXFCC (US): LSD8068TDOC (CAN): 1736 102 138
Options Options
Model 8057 receiver memory: 50, 100, 250, 500, 1000, 5000, 16000 - choose one.Transmitters: 1, 2 or 3 button.PROX mitters: DK Prox, AWID or HID proximity tags - specify which.
Specifications Alternating Current Ac Power Supply
12 V | 24 V
Specifications Controller Type
Network | Stand-Alone
Specifications Direct Current Dc Power Supply
12 V | 24 V
Specifications Hold Open Capability
No
Specifications Light Emitting Diode Led Beeper
Light Emitting Diode (LED) Only
Specifications Limited Factory Warranty
2 y
Specifications Maximum Access Points
1
Specifications Maximum Codes
16000 Network 100 Stand-Alone | 5300 Network 100 Stand-Alone
Specifications Output Type
1 Relay | 26, 30, 31-bit Wiegand/1 Relay
Specifications Programmable Facility Codes
10
Specifications Range
50 to 75 ft
Specifications Transmitter Codes
Over 1,000,000
Technical Specifications Technical Specifications
8040 ReceiverPrimarily used as a 26, 30 or 31-bit wiegand output receiverCan be set for stand-alone operation, 100 codes maximumLow power mode for solar-powered operationCan be used with MicroClik or MicroPlus transmittersForm C relay.12-24 volt AC or DC.8057 ReceiverStand-alone receiverStores up to 16,000 MicroClik transmitter codesBuilt-in programming keypadAdd or delete transmitters individually or in block formatProgrammable facility codes, relay strike time, transmitter button numberForm C dry contact relay12-24 Volt AC or DC
