DoorKing Power Inverter System
DoorKing Power Inverter System
SKU:POW-a9b7ba
Ensure continuous power for your Access Control System with the DoorKing Power Inverter System - perfect for residential and commercial applications.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
DoorKing Power Inverter System
$1,399.99
Quantity: 1
Claim Your Seller Account
DoorKing Power Inverter System
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

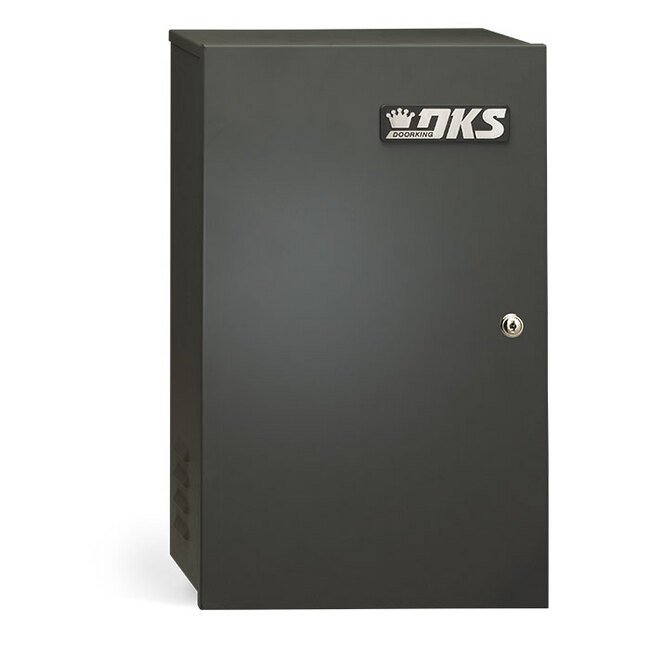

The DoorKing Power Inverter System, featuring the DKS Model 1000, is a reliable solution for uninterrupted power supply to single-gated Access Control Systems in residential and commercial settings. With a Pure Sine-Wave output, this system can power either two 1/2 HP gate operator systems or a single 1 HP system, ensuring continuous operation during power outages. It includes two Maintenance Free, Rechargeable, Non-spillable, Sealed Lead-Acid batteries wired in parallel, meeting standards for essential backup power in Access Control Applications.
Product Specifications
Additional Information Additional Information
Provides convenience and security for basic access control applicationsTwo keys supplied with each unitAce cylinderEach key switch is housed in a rugged steel cabinet with a stainless steel faceplate making these switches vandal resistantHigh security Ace type key cylinderConstant contact normally openEasy mounting to wall or postFor exterior or interior use
Advantages Advantages
No Power No Problem
Applications Applications
ResidentialGated CommunitiesSelf StorageApartment ComplexesMixed UseParkingCondominium/Residence HallCommercial

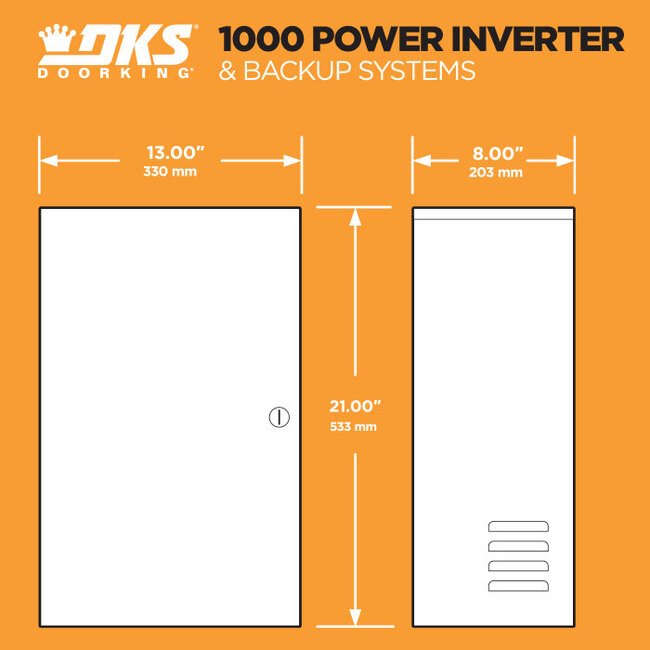

Dimensions Depth
8 in
Dimensions Height
21 in
Dimensions Width
13 in
Key Features Key Features
Provides backup AC power for Access Control Systems when primary (AC) power is lostPure sine wave inverter provides 120 volt, 60 cycle AC powerMaintains power to all components of the Vehicular Gate System including the Gate Operator, Loop Detectors, Secondary Entrapment Prevention Devices, Telephone Entry System, Card Access System, RF Controls, etc.Selectable power out and power start options.Selectable continuous operation mode or quick open mode.Electronic control circuit monitors battery voltage while system is in inverter mode and commands gate operators to open when battery power reaches critical levels.
Options Options
Post Mount Kit P/N 1000-045Battery Cable Set P/N 1000-04412-Volt, 35 Ah SLA Battery P/N 1801-005
Specifications Alternating Current Ac Output Voltage
120 V
Specifications Alternating Current Ac Voltage
120 V
Specifications Continuous Output Power
1000 W
Specifications Frequency
60 Hz
Specifications Limited Factory Warranty
2 y
Specifications Maximum Output Current
12.5 A
Specifications Motor Power
1/2 hp | 1 hp
Specifications Note For Limited Factory Warranty
Excludes Battery
Specifications Number Of Gated Entry Systems
1
Specifications Operating Temperature
-5 to 40 ºC | 23 to 104 ºF
Specifications Output Power
1000 W
Technical Specifications Technical Specifications

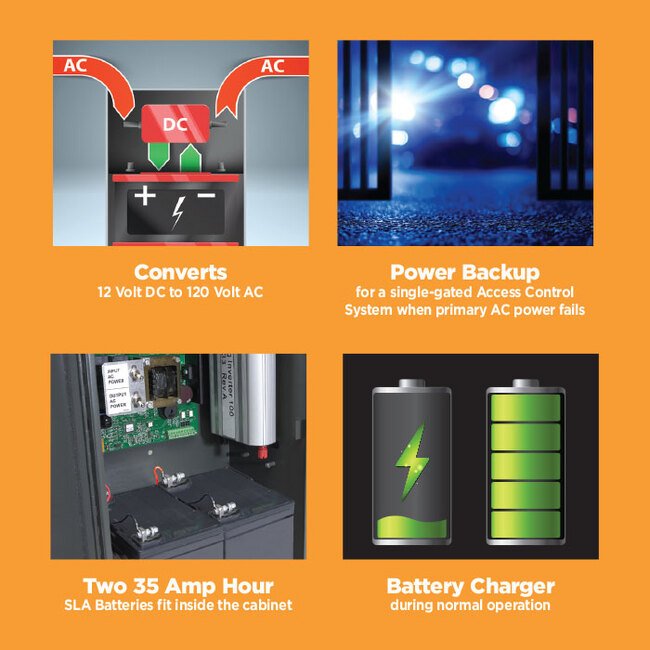

Pure Sine-Wave output can power two 1/2 HP gate operator systems or a single 1 HP systemLow voltage alarm 10.2 - 10.8 VDCUses two (2) Maintenance Free, Rechargeable, Non-spillable, Sealed Lead-Acid (SLA), 12-Volt, 35 AH.IMPORTANT! Use only with gate operators that utilize PSC motors. Do not use with operators that utilize motors with separate start and run windingsBatteries: Maintenance Free, Rechargeable, Non-spillable, Sealed Lead-Acid (SLA), 12-Volt, 35.0 AHPure Sine Wave Inverter includes 2 batteries (wired in parallel)Cabinet contains room for two Batteries
