DoorKing Proximity Card Reader
DoorKing Proximity Card Reader
SKU:ACC-8d0563
Enhance access control with DoorKing's Proximity Card Reader 1520 for robust security and ease of use in residential and commercial settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DoorKing Proximity Card Reader
$299.99
Quantity: 1
Claim Your Seller Account
DoorKing Proximity Card Reader
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

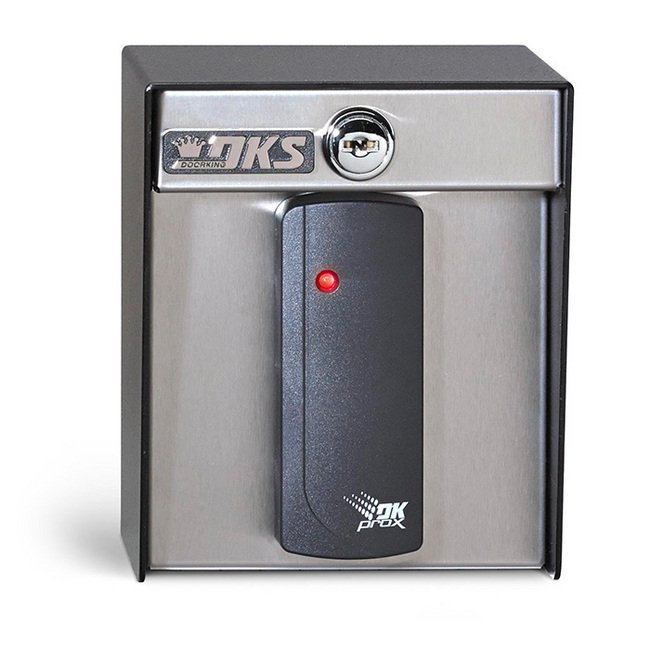

The DoorKing Proximity Card Reader 1520 is a robust single-door, stand-alone Access Control System designed for residential and commercial applications. It features a built-in proximity card reader with a 1000 card code memory, anti-pass back security, 3656 event transaction buffer, and programmable time zones. The product is ETL listed, operates in a wide temperature range, and can be powered by either 12V DC or 24V DC power supply. With its customizable features and reliable performance, the DoorKing Proximity Card Reader ensures secure access control for various property types.
Product Specifications
Additional Information Additional Information
The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple gates, doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPlus® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Advantages Advantages
Single door, stand-alone Access Control System. Built-in Proximity Card Reader
Applications Applications
ResidentialCommercial
Key Features Key Features
Full feature card readerTransaction/history buffer stores up to 3,656 events, anti-pass back, time zones, serial output for printerBuilt-in keypad for easy programmingController only version allows you to add almost any 26-bit wiegand device (card reader, keypad, etc.)Built-in proximity card reader (available with DK Prox, AWID or HID reader)Available as a controller only (add your own 26-bit wiegand device)Built-in programming keypadIndoor or outdoor use
Specifications Alternating Current Ac Power Supply
16 V
Specifications Anti Pass Back
Yes
Specifications Controller Type
Prox Card Reader
Specifications Direct Current Dc Power Supply
12 V | 24 V
Specifications Hold Open Capability
Yes
Specifications Hold Open Time Zones
Yes
Specifications Industry Uses
Commercial | Condominium | Gated Communities | Industrial | Maximum Security | Mixed Use | Parking | Residents Hall | Self Storage
Specifications Light Emitting Diode Led Beeper
Beeper | Light Emitting Diode (LED)
Specifications Limited Factory Warranty
2 y
Specifications Live Transaction Capability
To Printer
Specifications Maximum Access Points
1
Specifications Maximum Codes
1000
Specifications Number Of Card Device Codes
1000
Specifications Operating Temperature
-35 to 65 ºC | -31 to 150 ºF
Specifications Operating Temperature Range
-35 to 65 ºC | -31 to 150 ºF
Specifications Output Type
1 Relay
Specifications Programmable Facility Codes
10
Specifications Programming
Programming Via The Built-in Programming Keypad
Specifications Range
2 to 4 in
Specifications Read Range
2 to 4 in
Specifications Standards
Edison Testing Laboratories (ETL) Listed
Specifications Time Zones
4
Specifications Transaction Buffer
3656
Specifications Wiegand Output Format
26 bits
Technical Specifications Technical Specifications
Designed for single door or gate stand-alone applications1000 card code memoryProgramming via the built-in programming keypadAvailable with DK Prox, AWID, HID readers, or can be ordered as a controller only (add your own 26-bit wiegand device)Lighted enclosure for outdoor useTransaction buffer stores last 3656 eventsBuilt-in clock calendarFour time zones and hold open time zonesProgrammable facility codesAnti-pass backPrint menu and real time print mode (printer not included)Clock and transaction buffer will maintain data for up to three days in the event of a power failureForm "C" dry contact relay16 VAC, 20 VA power transformer supplied.
