DoorKing ProxPlus Secure Card Reader - High Security Access Control
DoorKing ProxPlus Secure Card Reader - High Security Access Control
SKU:ACC-aafcb2
Enhanced security DoorKing ProxPlus Secure Card Reader for top-tier access control needs.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
DoorKing ProxPlus Secure Card Reader - High Security Access Control
$139.99
Quantity: 1
Claim Your Seller Account
DoorKing ProxPlus Secure Card Reader - High Security Access Control
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

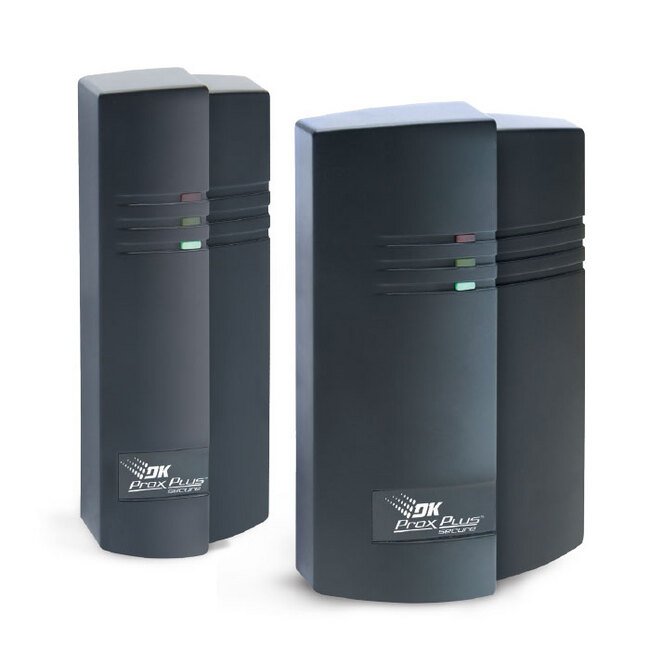

The DoorKing ProxPlus Secure Card Reader offers an unparalleled level of security for applications demanding top-notch access control. Programmed with unique identifiers and encrypted for enhanced protection, these card readers are virtually impossible to duplicate. Operating in a 26-bit Wiegand format, they ensure compatibility with a wide range of access control systems, making them ideal for commercial, condominium, industrial, and high-security facilities. With a touch-activated mechanism and a 5-year limited factory warranty, this reader provides peace of mind in safeguarding vulnerable locations like ports, schools, airports, and utility facilities.
Product Specifications
Additional Information Additional Information
The result is a robust product line that functions better in real-world use than any other on the market. From complex systems with multiple gates, doors, floors, user groups and more, to a simple stand-alone device for a single elevator, DKS has engineered a customizable range of products to meet the needs of any property. Digital Keypads, RF and Proximity Card Readers, Electric and Magnetic Locks, MicroCLIK® and MicroPlus® RF Controls, Automated Vehicle ID Systems, and mobile access applications compatible with bluetooth offer any level of security for residential, commercial, and multi-use properties. Higher security is within your reach - with DoorKing® Access Control products.
Advantages Advantages
Higher level of security than standard proximity card readers.Programmed with a unique identifier, making them extremely secure and difficult to duplicate.
Applications Applications
DoorKing® ProxPlus⢠Secure Card Readers are available for those applications that require a higher level of security than standard Proximity Card Readers. ProxPlus⢠Secure cards provide an extremely high level of security for vulnerable locations such as ports, schools, laboratories, utility facilities, airports, and more.
Key Features Key Features
Reads only ProxPlus Secure cards which offer an extremely high level of encryptionOutput from reader is 26-bit Wiegand format13.5 MHz frequencyThree color LED5 year limited factory warranty
Options Options
DK PROXPLUS SECURE CARDSProxPlus Secure1815-684; Up to 1-inch read range1815-685; Up to 1-inch read rangeThese readers will read only DoorKing® ProxPlus Secure cards and output the card code in a 26-Bit wiegand format. These readers offer higher security levels and are not compatible with Mifare 4 or 7 byte UID cardsDK PROXPLUS SECURE CARDSFactory Coded CardsThese cards are factory pre-coded. Card numbers may or may not be in numerical sequence.1508-252 Secure Cards1508-257 Secure Key TagsCustom Programmed CardsThese cards include sequential coding, specific card numbers and specific start / stop numbering sequences.1508-250 Secure Cards1508-255 Secure Key TagsMIFARE READERUse these readers only to match to existing Mifare Classic 4 or 7 byte UID cards that are already in use. The 1815-690 card scanner is required to identify the actual Wiegand card code so that it can be entered into the access controller.Mifare Reader1815-680; Up to 1-inch read range1815-681; Up to 1-inch read rangeCARD SCANNERProxPlus Secure Card Scanner1815-692 Reads ProxPlus Secure CardsUse this card scanner when the card code is not printed on the card or the code has worn off the card. This scanner will read ProxPlus Secure cards only. Mifare Card Scanner1815-690 Reads Mifare CardsBecause of the nature of how the UID code generates the 26-bit Wiegand code in Mifare readers, the card scanner MUSTbe used to ensure the correct Wiegand code is entered in the access controller.Scanners require ProxPlus/Mifare card scanner softwareMIFARE® is a registered Trademark of NXP B.V.
Specifications Direct Current Dc Voltage
12 V
Specifications Industry Uses
Commercial | Condominium | Gated Communities | Industrial | Maximum Security | Mixed Use | Parking | Residents Hall | Self Storage
Specifications Limited Factory Warranty
5 y
Specifications Operating Temperature
-35 to 65 ºC | -31 to 149 ºF
Specifications Output Type
26-bit Wiegand
Specifications Range
0 to 1 in
Technical Specifications Technical Specifications

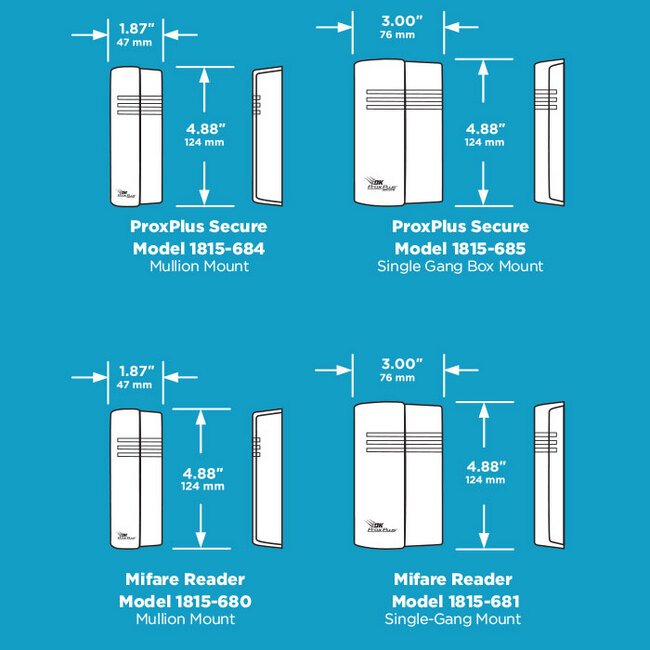

DK ProxPlus Secure Card Readers1815-684 mullion mount.1815-685 single-gang electrical box mount.Card touch required for activation.Reads only DK ProxPlus Secure cards.Output from reader is 26-bit Wiegand format.These readers offer an extremely high level of security.Cards are encrypted with additional coding making them almost impossible to duplicate.
