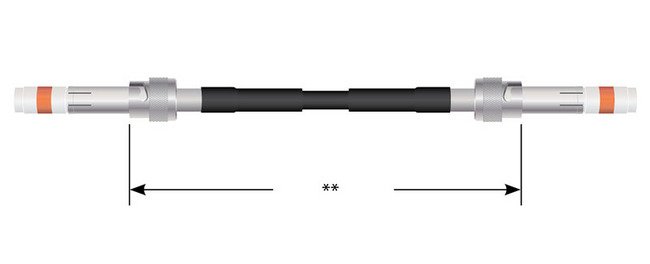

Double-Ended 25 kVDC Cable Assembly with Recessed Contacts
Double-Ended 25 kVDC Cable Assembly with Recessed Contacts
SKU:HIG-f3816f
Safety-first 25 kVDC Cable Assembly with recessed contacts for enhanced user protection.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Double-Ended 25 kVDC Cable Assembly with Recessed Contacts
$149.99
Quantity: 1
Claim Your Seller Account
Double-Ended 25 kVDC Cable Assembly with Recessed Contacts
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the strict safety requirements with our Double-Ended 25 kVDC Cable Assembly featuring recessed contacts for enhanced user safety. Designed to minimize the risk of electrical shock, this assembly also includes spring finger body contacts ensuring a reliable ground circuit. With a voltage rating of 25 kVDC at 70,000 ft and a test voltage of 41 kVDC at high altitudes, it guarantees optimal performance in demanding environments. The bayonet coupling style, crimp braid termination, and shielded wire type further exemplify its robust design. Operating temperature ranging from -40 to 85°C ensures versatility across various conditions.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Receptacle Contact Materialfinish
Brass/Au
Specifications Receptacle Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Series
521
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
