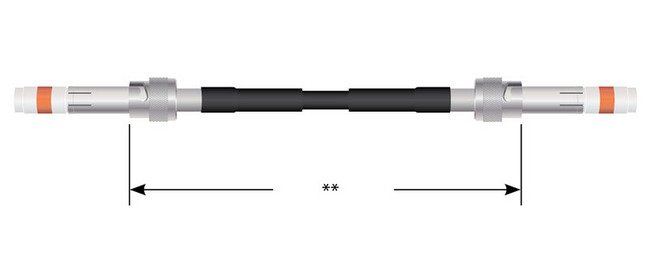

Double-Ended 521 Series High Voltage Cable Assembly
Double-Ended 521 Series High Voltage Cable Assembly
SKU:HIG-747280
Enhance safety with the Double-Ended 521 Series Cable Assembly, designed for high voltage applications with recessed contacts and a 25 kVDC rating.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Double-Ended 521 Series High Voltage Cable Assembly
$149.99
Quantity: 1
Claim Your Seller Account
Double-Ended 521 Series High Voltage Cable Assembly
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Double-Ended 521 Series Cable Assembly is a safety-centric solution designed for high voltage applications, featuring recessed contacts for enhanced user safety. With a voltage rating of 25 kVDC and a test voltage of 41 kVDC at 70,000 ft, this assembly ensures reliable performance even in demanding environments. The Bayonet coupling style, brass Bayonet coupling nut, and BeCu/Au plug contact material further enhance its durability and conductivity. Operating within a temperature range of -40 to 85°C, this assembly is a reliable choice for institutions seeking high voltage connectors that prioritize safety and efficiency.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
