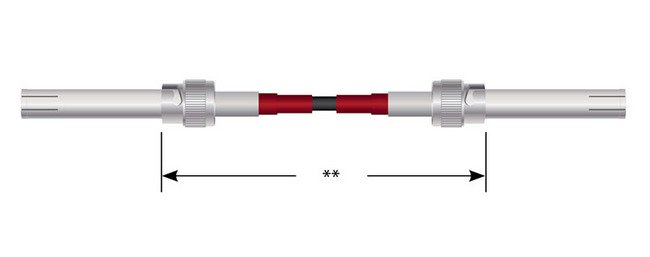

Double-Ended 521 SL Series High Voltage Cable Assembly

Name: Double-Ended 521 SL Series High Voltage Cable Assembly
Brand: Teledyne Reynolds
SKU: HIG-431bb1
Price: 129.99 USD
Availability: OutOfStock

SKU:HIG-431bb1

Enhance safety in high voltage setups with the Double-Ended 521 SL Series Cable Assembly, featuring recessed contacts and a 25 kVDC rating.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Double-Ended 521 SL Series High Voltage Cable Assembly is a safety-focused solution designed for high voltage applications, featuring recessed contacts that minimize the risk of electrical shock. With a voltage rating of 25 kVDC at high altitudes and 20 kVDC at sea level, this assembly ensures reliable performance under varying conditions. The bayonet coupling style, spring finger body contact, and robust materials like BeCu/Au plug contacts and shielded wire make it a dependable choice for industrial and institutional settings. Operating within a temperature range of -40 to 85°C, this cable assembly combines user safety with high performance standards.

Product Specifications

Coupling Nut Properties Bayonet Coupling Nut Finish

Nickel

Coupling Nut Properties Bayonet Coupling Nut Material

Brass

Specifications Altitudereduced Pressure Rating

Sea Level

Specifications Assembly Type

Double-Ended Plug Cable Assembly

Specifications Braid Termination

Crimp

Specifications Coupling Style

Bayonet

Specifications Current Rating

20 A

Specifications Export Classification

TBD

Specifications Operating Temperature

-40 to 85 ÂºC

Specifications Plug Contact Materialfinish

BeCu/Au

Specifications Plug Insulator Material

Plastic

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

N/A

Specifications Series

521 SL

Specifications Test Voltage 70000 Ft

Specifications Test Voltage At Sea Level

28 kVDC

Specifications Voltage Rating

20 kVDC

Specifications Wire Insulation

Specifications Wire Type

Shielded

Double-Ended 521 SL Series High Voltage Cable Assembly
