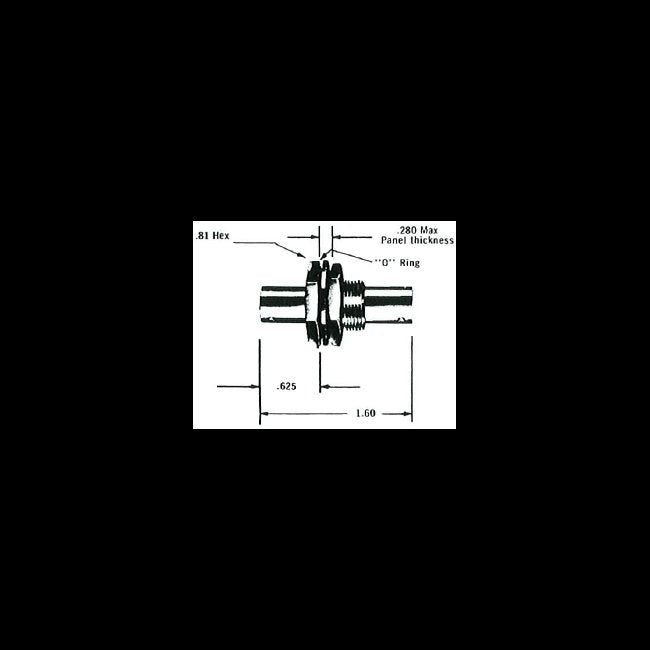

Double-Ended Sealed Male Receptacle - 6.5 & 15 kVDC Series 31, 310, 311 Connectors
Double-Ended Sealed Male Receptacle - 6.5 & 15 kVDC Series 31, 310, 311 Connectors
SKU:HIG-08478e
Reliable high-voltage male receptacle with sea level rating, bayonet coupling, and RoHS compliance.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Double-Ended Sealed Male Receptacle - 6.5 & 15 kVDC Series 31, 310, 311 Connectors
$69.99
Quantity: 1
Claim Your Seller Account
Double-Ended Sealed Male Receptacle - 6.5 & 15 kVDC Series 31, 310, 311 Connectors
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your high-voltage connection needs with our Double-Ended Male Receptacle, designed for reliability since 1950. This receptacle boasts a Sea Level altitude rating, 10 Amp current rating, and a temperature range of -40 to 85 °C for versatile performance in various environments. With a Bayonet coupling style, brass contact material, gold-plated coupling nut finish, and sealed design, it ensures secure connections and durability. Compliant with RoHS standards and suitable for institutional procurement requirements.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Cable Preparation 0
Reynolds Industries Inc. - High Voltage Connectors, High Voltage Cable Assemblies, High Voltage Wire, High Voltage Cable, High Voltage Capacitors _uacct = "UA-425769-1"; urchinTracker(); CLICK HERE FOR A PHOTOGRAPHIC "HOW TO" Series 31 (P/N 167-0669) Step 1 Cut cable to length, clean and square. Slip boot over cable. Strip outer jacket to dimension shown. Trim exposed braid to dimension. Trim inner insulation to dimension. No nicked or severed strands allowed. Step 2 Insert sleeve under braid as shown. Rosin-flux and pot tin dip both the inner core and exposed braid using SN60 solder in accordance with J-STD-006. Remove all flux. Step 3 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. Completed solder joint must have a continuous fillet of solder between the conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Step 4 Slip prepared cable into the connector body until the flange inside the connector butts against braid cut off. Solder connector body to braid through 4 holes using SN60 solder in accordance with J-STD-006. Clean thoroughly. Step 5 Slide boot into position as shown. Download this page as a PDF for best print quality.
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates all Series 311 Cond. 1 receptacles and adaptors.
Specifications Mounting Notes
Allow clearance for 1/2-28 UNEF thread
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
31
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
TBD
Specifications Voltage Rating
6.5 kVDC
