Double-Ended Shielded 610 SL Series Cable Assembly

Name: Double-Ended Shielded 610 SL Series Cable Assembly
Brand: Teledyne Reynolds
SKU: HIG-35fbd6
Price: 79.99 USD
Availability: OutOfStock

SKU:HIG-35fbd6

High-quality 10 kVDC Double-Ended Shielded Cable Assembly for secure and reliable connections in demanding applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

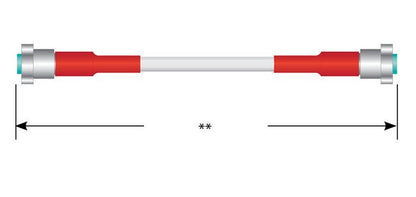

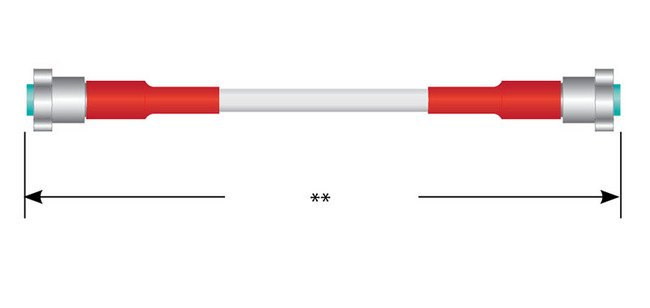

The Double-Ended Shielded 610 SL Series Cable Assembly is designed for high-performance applications requiring a secure and durable connection. With a 10 kVDC voltage rating and threaded coupling nut for polarization, this assembly ensures reliable mating in high-stress environments. It features a shielded wire type, BeCu contact material with gold finish, and operates within a wide temperature range. Ideal for airborne and multi-circuit applications, this non-standard part offers unmatched quality and performance.

Product Specifications

Body Properties Coupling Nut Finish

Gold Plated | Passivated

Body Properties Coupling Nut Material

Brass | Stainless Steel

Contact Properties Contact Finish

Gold

Contact Properties Contact Material

BeCu

Coupling Nut Properties Coupling Nut Style

Hex Coupling

Specifications Altitudereduced Pressure Rating

Sea Level

Specifications Assembly Type

Double-Ended Plug Cable Assembly

Specifications Coupling Style

Threaded

Specifications Current Rating

1 Amp

Specifications Export Classification

TBD

Specifications Insulator Material

Plastic

Specifications Lock Wire Holes In Coupling Nut

Specifications Mating Compatibility

Mates all Series 610 SL receptacles

Specifications Operating Temperature

-55 to 125 ÂºC

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

N/A

Specifications Series

610 SL

Specifications Standardnon Standard

Non-standard Part

Specifications Test Voltage

15 kVDC at Sea Level | 7.5 kVDC at 70,000 ft.

Specifications Voltage Rating

10 kVDC

Specifications Wire Type

Shielded
