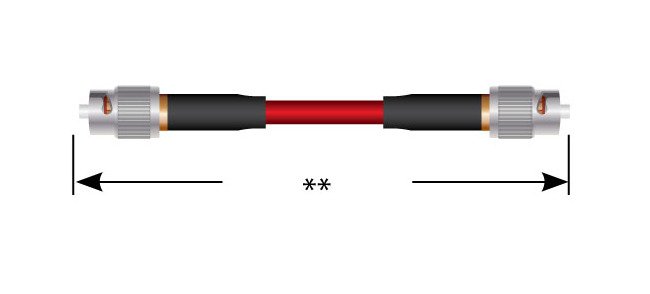

Double-Ended Shielded Cable Assembly - Series 310, High Voltage Connectors
Double-Ended Shielded Cable Assembly - Series 310, High Voltage Connectors
SKU:HIG-8f8770
High-performance Series 310 Double-Ended Shielded Cable Assembly for high-voltage applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Double-Ended Shielded Cable Assembly - Series 310, High Voltage Connectors
$49.99
Quantity: 1
Claim Your Seller Account
Double-Ended Shielded Cable Assembly - Series 310, High Voltage Connectors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Double-Ended Shielded Cable Assembly, part of our Series 310, is designed for high-voltage applications, offering a reliable and secure connection. With a current rating of 10 Amp and a test voltage of 21 kVDC, this assembly is built to perform in demanding environments. Made with Brass Bayonet Coupling Nut and Nickel finish, it ensures durability. The Series 310 Cable Assembly is meticulously engineered to meet the needs of institutional and government buyers, complying with various industry standards.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Cable Preparation 0
" Reynolds Industries Inc. - High Voltage Connectors, High Voltage Cable Assemblies, High Voltage Wire, High Voltage Cable, High Voltage Capacitors _uacct = ""UA-425769-1""; urchinTracker(); CLICK HERE FOR A PHOTOGRAPHIC ""HOW TO"" Series 310 (P/N 167-4356) Step 1 Cut cable to length, clean and square. Slip boot and crimp sleeve over cable. Strip outer jacket to dimension shown. Trim exposed braid to dimension. Trim inner insulation to dimension. No nicked or severed strands allowed. Pot tin dip inner conductor using SN60 solder in accordance with J-STD-006. Remove all flux. Step 2 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. No solder buildup allowed on contact outer diameter. Completed solder joint must have a continuous fillet of solder between the inner conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Flair braid by moving cable core in a circular motion. Step 3 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. Completed solder joint must have a continuous fillet of solder between the conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030"". Download this page as a PDF for best print quality. "
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Adapter | Double-Ended Plug Cable Assembly
Specifications Bayonet Coupling Nut Finish
Nickel
Specifications Bayonet Coupling Nut Material
Brass
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications End 1
167-4356
Specifications End 2
167-4356
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
310
Specifications Standardnon Standard
Non-standard Part | Standard Part
Specifications Test Voltage
21 kVDC at 70000 ft. (simulated) and ambient temperature
Specifications Voltage Rating
15 kVDC
