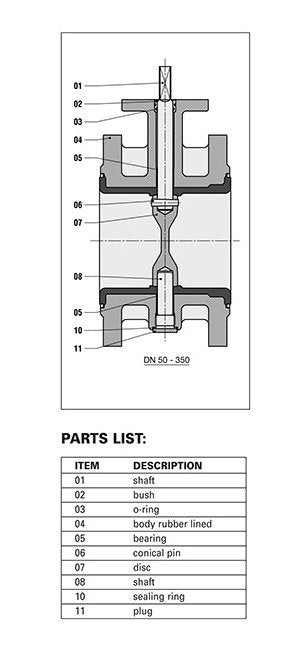

  • Double Flanged Gear Operated Cast Iron Butterfly Valve - Image 3
  • Double Flanged Gear Operated Cast Iron Butterfly Valve - Image 4
1 4
World Wide Metric, Inc. →

Double Flanged Gear Operated Cast Iron Butterfly Valve

Double Flanged Gear Operated Cast Iron Butterfly Valve

VAL-0dabd5

Reliable Series EVFL Gear Operated Butterfly Valve with flanged connections and a shut-off pressure of 2.5-16 bar. Versatile and durable design for precise fluid control.

$749.99
$749.99
Sale

Initiate Order

Double Flanged Gear Operated Cast Iron Butterfly Valve

Double Flanged Gear Operated Cast Iron Butterfly Valve

$749.99

Quantity: 1

Claim Your Seller Account

Double Flanged Gear Operated Cast Iron Butterfly Valve

Double Flanged Gear Operated Cast Iron Butterfly Valve

$749.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series EVFL Gear Operated Cast Iron Butterfly Valve is a reliable and durable solution for fluid control applications. With a size of DN300 (12") and a weight of 90.0 kg, this valve is designed for precise control and shut-off operations, suitable for isolating and regulating functions. It features flange connections according to PN 10 standards and a shut-off pressure ranging from 2.5 bar to 16 bar, making it versatile for various pressure conditions. The body material options include GG25 Cast Iron and GGG40 Ductile Iron, ensuring strength and corrosion resistance. The stem material is Stainless Steel 1.4462 for enhanced durability, while the liner material is Ethylene Propylene Diene Monomer (EPDM) for tight sealing. This valve conforms to DIN standards and is suitable for applications requiring compliance with ABS, DVGW, FM, GL, and other type approvals.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A
300 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
270 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 10
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
90.0 kg
Specifications X
131 mm
Specifications Y
15 mm
