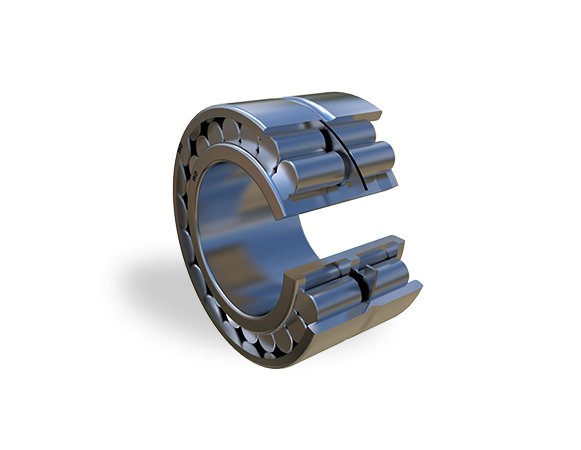

Double Row Full Complement Cylindrical Roller Bearings

Name: Double Row Full Complement Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-d8c3ba
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-d8c3ba

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

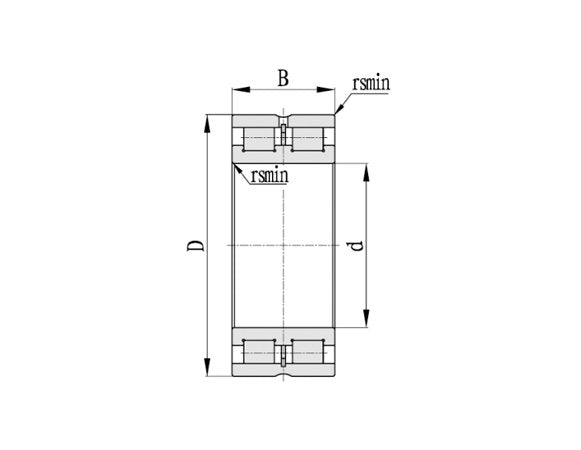

Dimensions Bore Diameter

340 mm

Dimensions Dimension C

40 mm

Dimensions Dimension Ew

396.9 mm

Dimensions Outside Diameter

420 mm

Dimensions Overall Bearing Width

80 mm

Load Rating Dynamic Cr Load Rating

880 kN

Load Rating Static Cor Load Rating

2390 kN

Specifications Limiting Speed

850 rpm

Specifications Mass

25 kg

Specifications Minimum Dimension R

2.1 mm

Double Row Full Complement Cylindrical Roller Bearings
