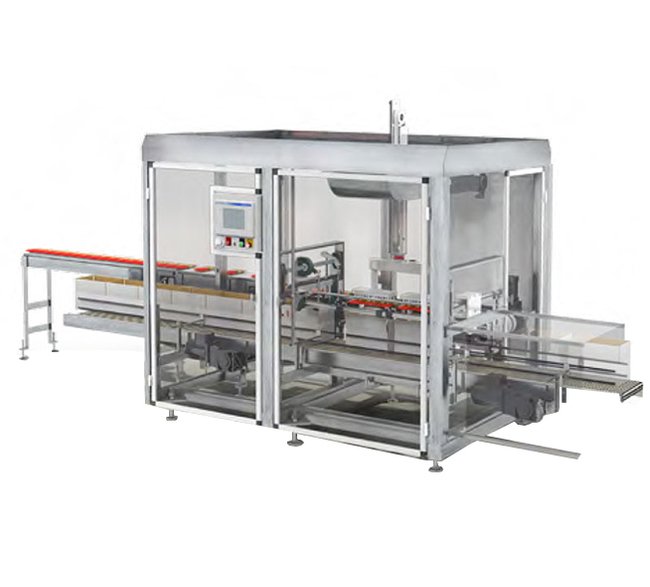

Douglas TriVex RL Series Top Load Case Packer
Douglas TriVex RL Series Top Load Case Packer
SKU:MAC-d8d7f7
Automated robotic top load case packer for high-efficiency production
Regular price
$79,999.00
Regular price
Sale price
$79,999.00
Unit price
per
Initiate Order
Douglas TriVex RL Series Top Load Case Packer
$79,999.00
Quantity: 1
Claim Your Seller Account
Douglas TriVex RL Series Top Load Case Packer
$79,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Douglas TriVex RL Series Top Load Case Packer is a versatile automated robotic loader tailored for high-demand, high-efficiency top load production. Featuring advanced infeeds for gentle product collation, precise case control options ensure smooth loading processes. With cutting-edge technology like Delta robot solutions and vertical pack capabilities, this system maximizes performance while maintaining product integrity, ideal for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information
Collating systems for bags, pouches, cartons, trays, cups, cans and bottlesCartesian and vision guided Delta robot configurations (loading)Quick and repeatable changeoversLoad multiple cases each cycle for higher speedsStainless steel and NEMA 4X construction available for wet environmentsProduction efficiency has been redefined with Douglas TriVex®.Offering the flexibility of the TriVex® RL case loader and the unique ability to seamlessly erect, load, and close top load cases with the integrated TriVex® RLi, TriVex® brings a new class of performance to automatic, top load case packing. Innovative design features, advanced robotic and servo technology and simple menu-driven changeovers combine to accommodate a wide variety of product types with precise product handling and less maintenance. TriVex®, less complexity, more capability, more Douglas.
Features Features
Tailored TechnologiesOptimize any Case Packing OperationDouglas offers a wide range of product handling and infeed systems designed to collate and load your product with unparalleled efficiency and reliability.As with all Douglas case packing solutions, TriVex® Series top loaders deliver maximum performance while maintaining gentle product handling to ensure the highest level of finished package integrity.Continuous Innovation, Maximum PerformanceDelta Robot SolutionsTriVex® Delta robot solutions use parallel-axis robot technology. High speed multi-axis motions allow the Delta loader to sense and pick moving product, often eliminating the need for special product handling on the infeed or the need to stage product before picking. The location and orientation of each product loaded into the case or tray is also programmable providing a high level of flexibility.Single and multi-cell robot configurationsInfeed product sensing via photo eye or vision for random product orientationsProduce case patterns with mixed product orientationsFlat or vertical pack casing for high impact retail ready displaysVertical Pack SolutionsTriVex® RL & RLi Vertical Pack solutions are used for products that must remain upright through distribution or for retail ready display packs. Solutions include pattern tipping, vane collation and Delta robot loading.Products facing the major or minor panels of the caseFlat and vertical pack capabilities on the same machineExcellent machine accessibility, simple changeover, small footprint and product control for pillow bags and standup pouches
Note Note
Specification limits may not be available in all combinations and are subject to change without notice.
Specifications Across Machine Standard
5 to 16 in | 127.00 to 406.40 mm
Specifications Alternating Current Ac Voltage
480 V
Specifications Brand
Douglas | TriVex®
Specifications Direction Of Travel Standard
6 to 21 in | 152.40 to 533.40 mm
Specifications Electrical
Rockwell controls including motion, logic, drives and HMINEMA 12 (NEMA 4 or 4X optional)
Specifications Frequency
50 Hz | 60 Hz
Specifications Note For Power
Other Power Sources Available.
Specifications Number Of Phase
3
Specifications Package Type
Tray
Specifications Speed
Up to 25 cases/min
Specifications Vertical Standard
4 to 13 in | 101.60 to 330.20 mm
