DP® Impact Pulveriser 1600 RPM Rotor Speed Mill
DP® Impact Pulveriser 1600 RPM Rotor Speed Mill
SKU:DPI-04981a
Achieve precise grinding control with the DP® Impact Pulveriser 1600 RPM Rotor Speed Mill, designed for durability and efficiency.
Regular price
$12,500.00
Regular price
Sale price
$12,500.00
Unit price
per
Initiate Order
DP® Impact Pulveriser 1600 RPM Rotor Speed Mill
$12,500.00
Quantity: 1
Claim Your Seller Account
DP® Impact Pulveriser 1600 RPM Rotor Speed Mill
$12,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

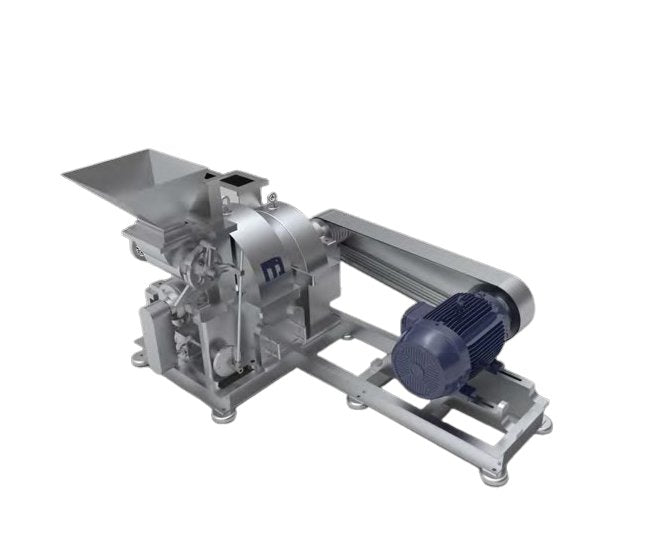

The DP® Impact Pulveriser 1600 RPM Rotor Speed Mill is a high-performance medium speed hammer mill with integrated feeding, grinding, and air classifying capabilities. Ideal for grinding various materials to medium fineness, it offers adjustable particle size control ranging from 60 mesh to 300 mesh. Its durable design, single motor operation, and flexible whizzer classifier make it suitable for continuous duty in harsh environments. The pulveriser ensures precision in output particle size and efficient pneumatic material conveying without the need for an external fan.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The flexibility of the adjustable gap between the whizzer classifier and the whizzer cone enables precise control of the required output particle size. This allows the same mill to deliver coarse granulation or fine grinding as required with a simple whizzer classifier gap adjustment. The presence of an impeller on the common shaft eliminates the need for an additional external fan for pneumatic conveying of the material out of the grinding chamber.
Features And Benefits Features And Benefits
Grinding and classifying in a single machineCapable of fine reductions down to 50 microns or 300 meshScreen-less classificationDurable long life (Some 1970s and 80s models are still in use today)Adjustable particle size control of powdersIntegrated feeding, classification and pneumatic conveying all run by a single motorAvailable in abrasion resistant design for materials up to 6-7 Mohs hardnessReliable operation due to robust designCool and gentle grinding due to high airflows
Note Note
Made in India
Options And Accessories Options And Accessories
Machine Contact and Non-Contact Parts available in Cast Iron, Carbon Steel, 304, 304L, 316, 316L.Wearable parts available in hard materials like Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, Cast iron.Internal fan available in single or two piece designAvailable in external fan design where airflow control is requiredLiners available in water jacketed design to provide cooling in the grinding chamber
Specifications Air Flow Rate
9000 m³/h
Specifications Main Drive Motor
100 to 125 hp
Specifications Rotor Speed
1600 rpm
Specifications Scale Up Factor
6
