DP 3kW Air Classifier Mill
DP 3kW Air Classifier Mill
SKU:DPA-0c0478
Achieve precise particle reduction with the DP 3kW Air Classifier Mill, perfect for various industries. Easy adjustment, low energy consumption, and durable construction.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
DP 3kW Air Classifier Mill
$14,999.99
Quantity: 1
Claim Your Seller Account
DP 3kW Air Classifier Mill
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

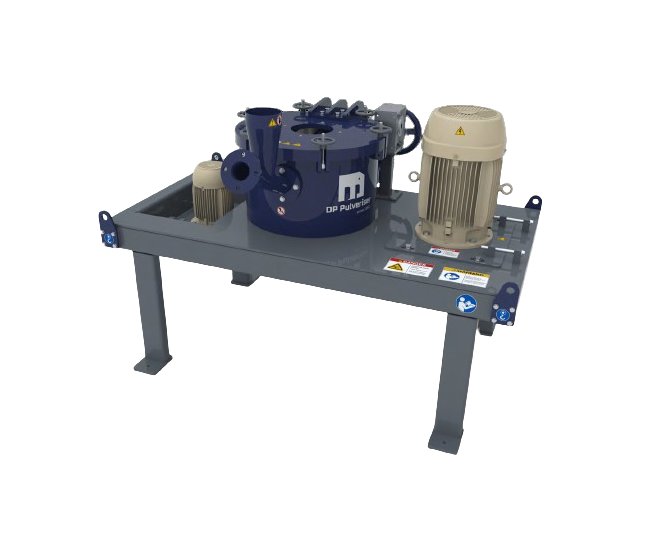

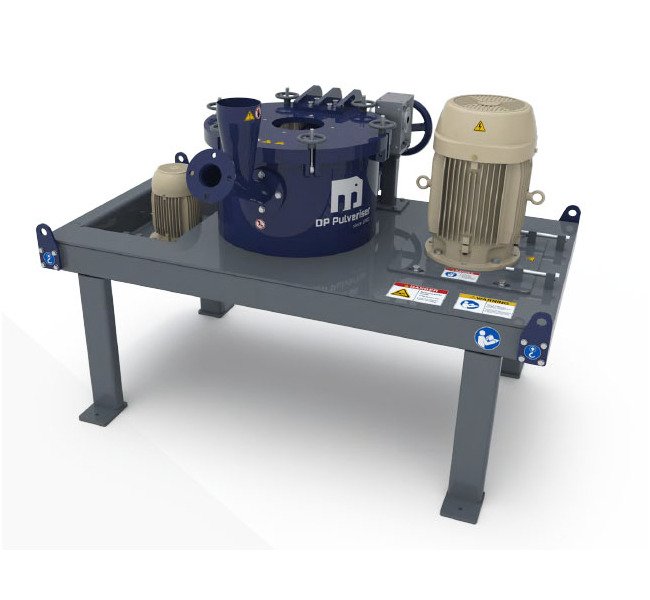

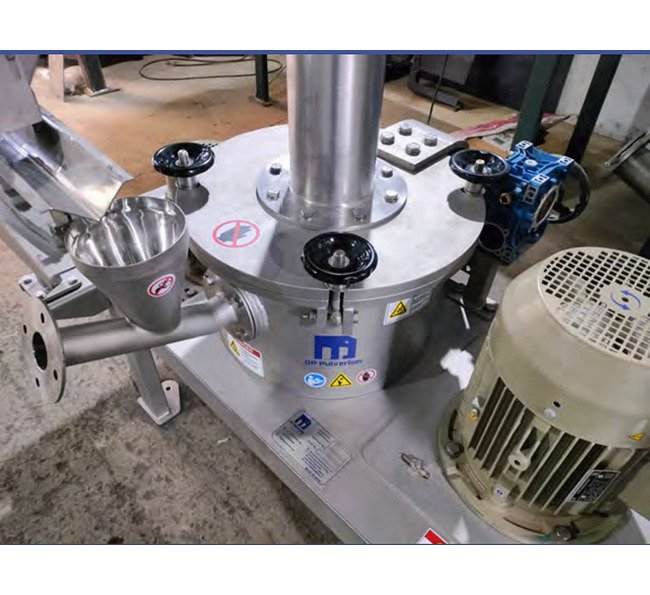

The DP 3kW Air Classifier Mill is a top-tier solution for precision particle reduction in the 8-40 microns range. With a robust 3 kW rotor drive and a fine-tuned 0.55 kW classifier drive, this high-speed milling machine integrates grinding and classifying functions seamlessly. Ideal for powder coating, pharmaceutical, and food applications, it offers easy online particle size adjustment, low energy consumption, and a steep particle size distribution. Crafted with durable materials like Forged Alloy Steel and options for cooling technology, this mill ensures efficient and reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Machine Contact and Non-Contact Parts available in Cast Iron, Carbon Steel, 304, 304L, 316, 316L.Wearable parts available in hard materials like Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, Cast Iron Internal fan available in single or two-piece design Available in external fan design where airflow control is required.Liners available in water jacketed design to provide cooling in the grinding chamber.
Features And Benefits Features And Benefits
Grinding and Classifying in one machine.Tailored for powder coating, pharma and food production.Easy to clean and maintain.Stepless easy online particle size adjustment.Low specific energy consumption.Suitable for combined grinding and drying.Particularly suitable for frequent product changes.Steep particle size distribution.
Note Note
Made in India
Options And Accessories Options And Accessories
Design for coating of mineral powders.Protein enrichment of flours by size reduction and air classification.Airflow cooling technology for heat sensitive materials.Combined drying and pulverising option.Pressure-shock resistant up to PSR 11 bar.Tangential air inlet.
Specifications Air Flow Rate
340 m³/h
Specifications Classifier Drive
0.55 kW
Specifications Maximum Classifier Speed 1min
5350 rpm
Specifications Maximum Mill Speed 1min
11850 rpm
Specifications Rotor Drive
3 kW
Specifications Scale Up Factor
0.2 m³/h
