DP 55KW Air Classifier Mill
DP 55KW Air Classifier Mill
SKU:DPA-1a1c20
The DP 55KW Air Classifier Mill offers high-speed grinding and classifying in one machine, ideal for powder coating, pharma, and food production.
Regular price
$79,999.00
Regular price
Sale price
$79,999.00
Unit price
per
Initiate Order
DP 55KW Air Classifier Mill
$79,999.00
Quantity: 1
Claim Your Seller Account
DP 55KW Air Classifier Mill
$79,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

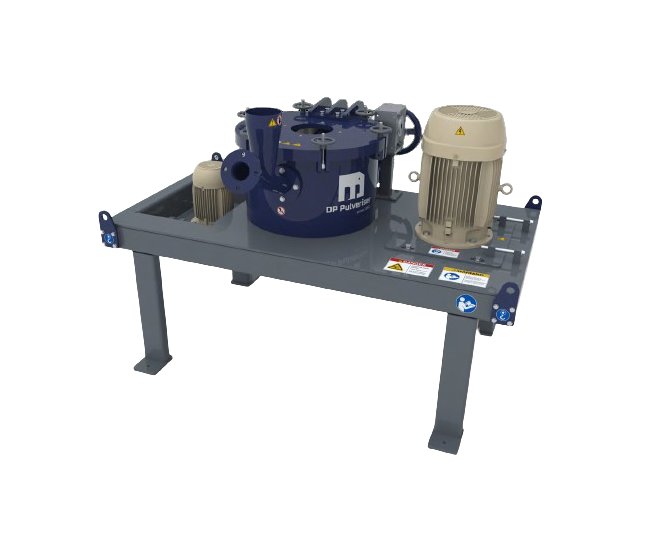

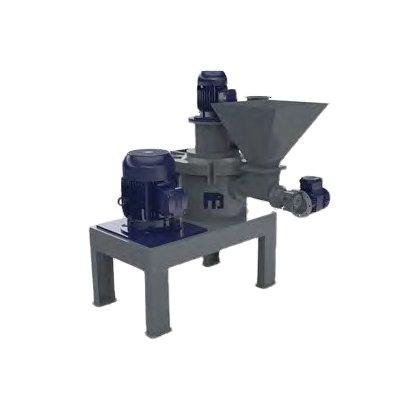

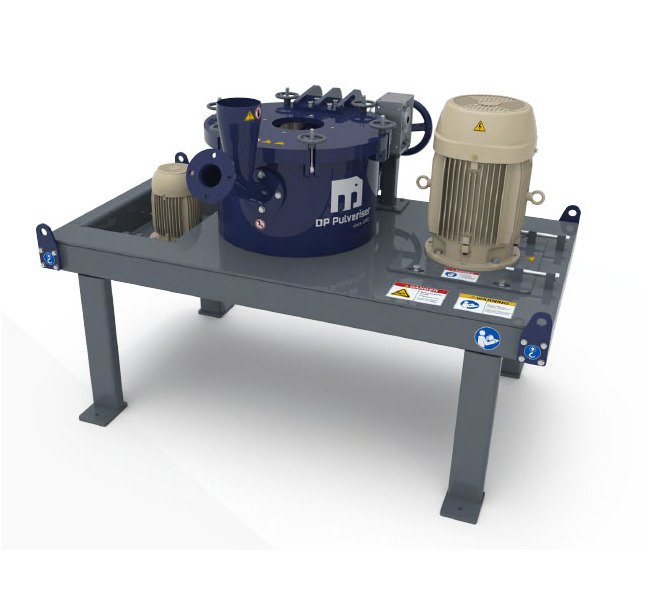

The DP 55KW Air Classifier Mill is a high-speed vertical hammer mill with an integrated adjustable air classifier. Specifically designed for powder coating, pharma, and food production, this machine combines grinding and classifying functions. With stepless particle size adjustment and low energy consumption, it offers tailored solutions for size reduction, protein enrichment, and cooling of heat-sensitive materials. Featuring a robust construction with wear-resistant materials and easy maintenance, it provides a steep particle size distribution suitable for frequent product changes. Available with various options and accessories, this mill ensures efficient and versatile performance for diverse industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Machine Contact and Non-Contact Parts available in Cast Iron, Carbon Steel, 304, 304L, 316, 316L.Wearable parts available in hard materials like Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, Cast Iron Internal fan available in single or two-piece design Available in external fan design where airflow control is required.Liners available in water jacketed design to provide cooling in the grinding chamber.
Features And Benefits Features And Benefits
Grinding and Classifying in one machine.Tailored for powder coating, pharma and food production.Easy to clean and maintain.Stepless easy online particle size adjustment.Low specific energy consumption.Suitable for combined grinding and drying.Particularly suitable for frequent product changes.Steep particle size distribution.
Note Note
Made in India
Options And Accessories Options And Accessories
Design for coating of mineral powders.Protein enrichment of flours by size reduction and air classification.Airflow cooling technology for heat sensitive materials.Combined drying and pulverising option.Pressure-shock resistant up to PSR 11 bar.Tangential air inlet.
Specifications Air Flow Rate
8100 m³/h
Specifications Classifier Drive
11 kW
Specifications Maximum Classifier Speed 1min
2700 rpm
Specifications Maximum Mill Speed 1min
3750 rpm
Specifications Rotor Drive
55 kW
Specifications Scale Up Factor
6.75 m³/h
